BOPP Packaging Tape Coating Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YUYU, QL
Model Number:
C1, QL-112
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed-BOPP Mayer-Bar Coating LineNegotiableMOQ: 1 Set -
Super Clear BOPP Roller Coating LineNegotiableMOQ: 1 Set
-
YU-112 Sealing Tape Coating MachineNegotiableMOQ: 1 Set
-
YU-C3 Double Sided Tape Coating MachineNegotiableMOQ: 1 Set
-
YU-C4 Silicon Rubber/PET Film Coating MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
YUYU, QL
Model Number
C1, QL-112
Specifications
Suitable for coating of BOPP tape.High production speed and efficiency.

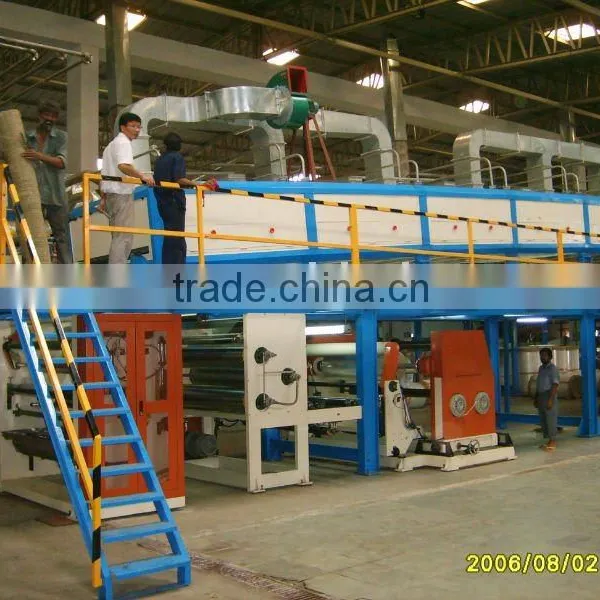

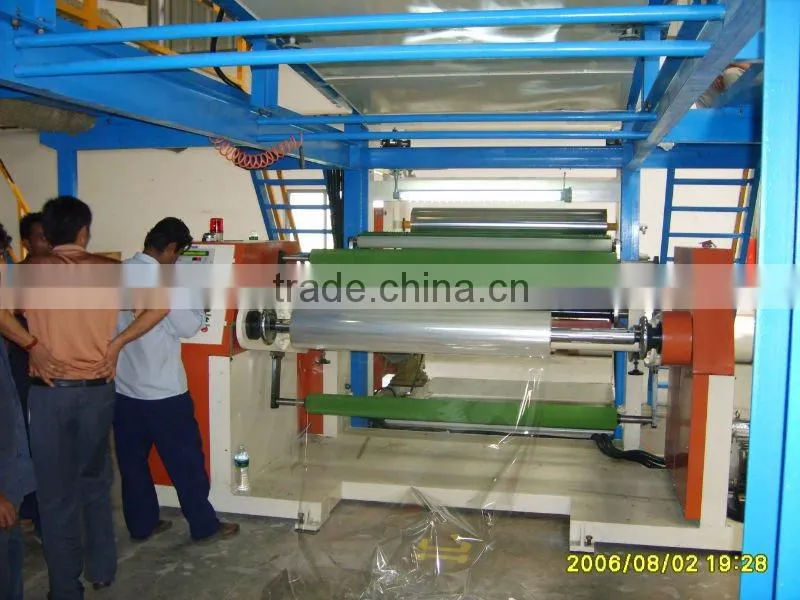

BOPP Tape Coating Machine
Features:
- Heating system is by Electric / Steam / Natural gas.
- Coating speed is at least 40-50 meter per minute.
- Drying tunnel is 30 meter length.
- Rewinding and unwinding roller diameter is 800mm.
- PLC Electrical control system, Low voltage apparatus made by Schneider, three-phase AC asynchronous motor with transducer adjust speed more security.
- Heating system, by Steam, Hot air recirculation, The temperature higher. Duplex turret type no stopping unwinding and rewinding, Using more automation, Operation simply and low labor intensity.
- Speed of coating more than 40-50 M / Min, Speed faster, High efficiency.
- Duplex EPC automatic correcting system monitoring, Eradicating undue deviation.
Technical Parameters
Tape Width |
10mm or 15mm |
Production capacity |
12 rolls per hour |
Speed |
10-15M/min |
Coating thickness |
0.02-0.05mm |
Even coating thickness |
±0.0015mm |
Product diameter |
370mm(1000M) |
Power:Main motor |
1/2HP |
Drying power |
10kw |
