Vacuum Conveyor, Vacuum Conveying Machine, Automatic Vacuum Feeding Machine
This machine is suitable for powder, granular material, vacuum conveying powder aggregate mixture.
Technological parameter
The third era vacuum convey or uses multi-stage ejector pump and metal filter. Our products are the third era products. We develop the vacuum conveyor follow the combination of the aerospace and international GMP criterion strictly. Our technology has achieved international advance level. Our products can solve the stratification of powder and granules, and eliminate the static electricity.
Characteristic:
---Using compressed air as primary energy sources
---According with GMP standard
---Solving the stratification of powder and granules
---The filters made of Ti will never be jammed and be abraded
---Eliminate the static electricity
---Made of nontoxic and corrosion resistant materials
---Leakage free capsule, to prevent cross contamination
---Materials are not adhering to the inner surface of the conveyor
---Intelligent control and high automation
---Modular structure, easy to clean and dismantle
---Small and light ,easy to install
---Low noise and free from vibration
---Energy saving and low running cost.
QVC conveying system consist of material container, pipeline, vacuum conveyor, control system and so on. The max distance to convey is 30m in height or 90m in length and the max conveying capability can reach 18 t/h.

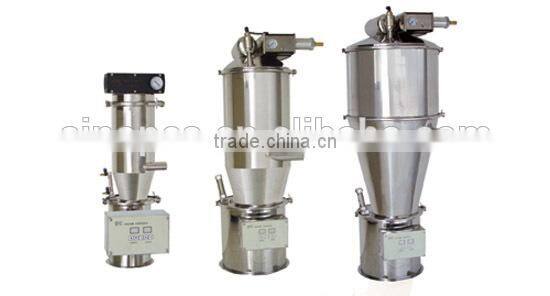

Model and parameter:
Types |
transportation ability (kg/h) |
air pressure |
air consume |
over size |
QVC-1 |
350 |
0.4-0.6 |
180 |
dia.140*560 |
QVC-2 |
700 |
0.4-0.6 |
360 |
dia.213*720 |
QVC-3 |
1500 |
0.4-0.6 |
720 |
dia.290*850 |
QVC-4 |
3000 |
0.4-0.6 |
1440 |
dia.420*1150 |
QVC-5 |
6000 |
0.4-0.6 |
2880 |
dia.420*1150 |
Cases:
We will provide the high quality products and good service according to what our clients need, by which you can make sure there is no leakage of material and no explosion risk. Examples of how to choose a conveyor are given
1.Capsule:
2.Tablet Press:
3.Mixer:

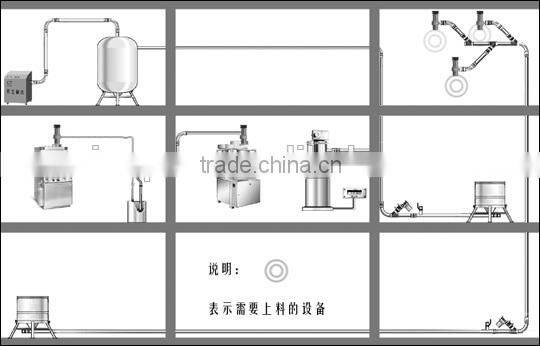

4.Vacuum conveying system:
With vacuum systems, material can be sucked from several pick-up points and collected at one receiving point. This is the opposite of what happens in positive-pressure systems. The system has a lot of advantage, such as, No leakage of material, simple to install,
dustless, easy to control and so on. The pollution for entironment of the system can reach to zero. And the system follow the GMP standard.
