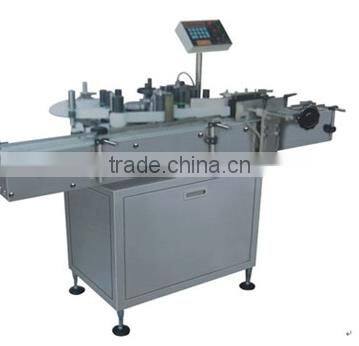

Automatic Multi Functional Labeling Machine

Usage:
Suitable for bottle:out diameter 15-80mm,height 25-150mm(can be customised)
Sutable for label:height 18-260mm,length 20-400mm
Suitable for round bottle wrap around labeling with single label.Also can for square bottle by little change.

Features:
This machine can be applied for round bottle with wrap around labeling or half round labeling.
Labeling tension system ensure the it steady and fast label feeding,keep high precision
Rolling sponge wheels installed applied in bottle seaprate station with function of stepless speed adjusting.Bottles distance can be set.
Sychronous positioning mechanisim of label guarantee the error ±1mm.
MCU operation pannel,any problem can be displayed and guide to solve,easy operation ,people with any level can use it.
E-stop button installed,keep the production smooth.
The distance of label tearing out can be set on the MCU,easy operation.

Control System:
Our labeling machine uses 5 phase steping motor.

Workflow:

Bottle feeding---Separating---Transporting---Labeling---Finished products
Technical Parameter:
Electric Voltage:                              AC220V 50/60HZ 1Phase
Power:                                              0.9KW
Labeling Speed:                              0-180 bottles/min(depend on the length of the label)
Labeling Precision:                        ±0.5mm
Container’s range:                         Diameter 25-150mm Height 0-150mm Width 10-120mm
Label’s range:                                 Height 20-90mm Length 25-150mm
Max.label roll:                                Diam 380mm inside diam 76mm

Sticker Label Parameter:
Body paper:                                                           Use 62g glassine paper.
Basic weight:                                                         62g/m²±5% Thickness:55μm±5%
Anti-tensile strength:                                          Machine direction: 16kg/25mm
Cross:                                                                     7kg/25mm
Anti-tearing:                                                          Machine direction:25g/pcs
Corss:                                                                     31g/pcs
Transparence:                                                      52%
Labels distance:                                                   3-4mm±0.2mm
Edge distance between label and body paper


Main components list
