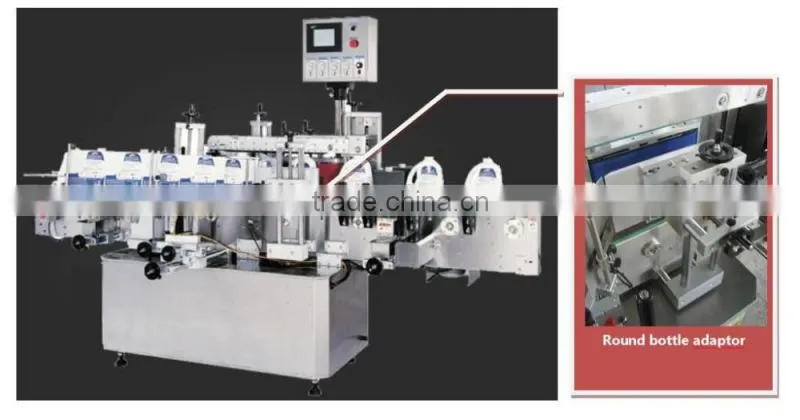

Automatic Bottle Double Sides Labeling Machine
Features:
l Panasonic PLC combined with human / machine interface LCD touch screen controller.
l Stainless steel frame construction and components are standard.
l Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling.
l 50 Job Memory for easy recall.
l Precision 5 phase stepper motor drive on label heads.
l “Push & Press” optional attachment (optional) is used to ensure smooth labeling without wrinkles or bubbles.
l Angle adjustment of labeling head (optional).
l Tapered products can take advantage of labeling heads angle adjustability 15 for conforming to the product shape.
l Hot Foil Printer is available (optional).
Technical parameter:
- 1. Model: AP-610 singe panel; AP-620 front/back. R: suit to round bottle
- 2. Label width/height: A: / 10-120 mm, C / 10-180mm , D / 10-220 mm
- 3. Label length: 10-250mm
- 4. Product diameter: 30-100mm
- 5. Labeling precision :±1mm
- 6. Labeling speed: 12-25m/min
- 7. Reel inner/outer dia.: 76mm/360mm
- 8. Machine size: L*W*H=2750*1400*1665mm front/back
L*W*H=2750*1100*1665mm single panel
Key components of AP620R Labeling machine:
PLC |
FP0R-C32T |
Japan Panasonic |
1 |
HMI |
MT4414TE |
KINCO |
1 |
Inverter |
VFD007M21A |
Delta |
1 |
Inverter |
VFD001L21A |
Delta |
3 |
Servo motor Driver |
LXM23CU08M3X |
French Schneider |
2 |
Servo motor |
|
French Schneider |
2 |
Mini Relay |
RJ1S-CL-D24+SJ1S-05L |
Japan IDEC |
3 |
Mini Relay |
RJ4S-CL-D24+SJ4S-05L |
Japan IDEC |
1 |
SMPS |
NES-150-24V |
Taiwan MW |
1 |
Two selection switch |
LA39-A1-10XD/B31 |
APT |
1 |
Emergency button |
LA39-A1-1Z/R |
APT |
1 |
U label sensor |
WFS3-40N415 |
Germany SICK |
2 |
Coder |
E6B2-CWZ6C-1000P/R |
Japan OMRON |
1 |
Product sensor |
FS-N18N+FU-25 |
Japan KEYENCE |
1 |
2P breaker |
DZ47-60/2P,D20 |
CHNT |
1 |
Main power switch |
LW32B1-1824/OF101 |
TIANYI |
1 |
Conveyor motor |
|
CPG |
1 |
Separate motor |
|
VTV |
1 |
Sample
Our main parts are from such world famous brands
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
