Home > Packaging & Printing > Packing Machinery > Filling Machine > Automatic High Speed Tube Filling & Sealing Machine, Cosmatics Packing Machine

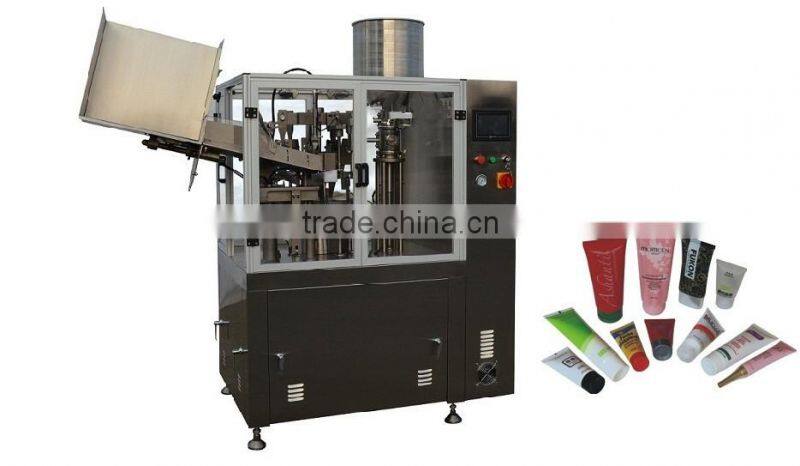

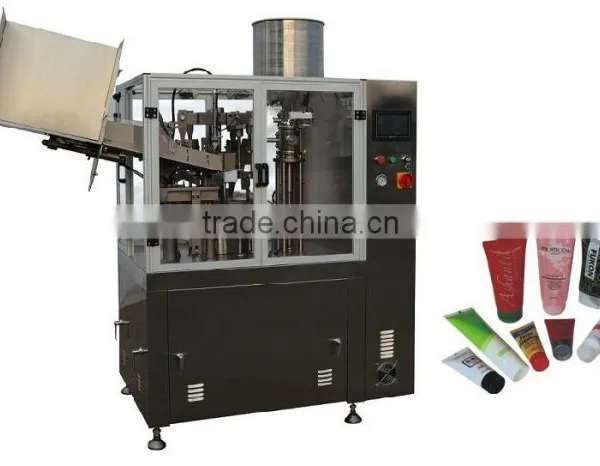

Automatic High Speed Tube Filling & Sealing Machine, Cosmatics Packing Machine
US$ 1 - 12,888
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Other, Tube
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Metel Tube Filling & Sealing Machine, Automatic Laminated Tube MachineUS$ 1 - 16,000MOQ: 1 Set -
Germany Design Automatic Soft Tube Filling & Sealing MachineUS$ 1 - 15,000MOQ: 1 Set
-
Italy Model Mini Plastic Ampoule Forming, Filling and Sealing MachineUS$ 1 - 16,789MOQ: 1 Set
-
Italy Unifill Model Plastic Bottle Forming, Filling, Sealing Machine, Plastic Bottle Blowing MachineUS$ 1 - 56,000MOQ: 1 Set
-
Italy Ampoule Forming, Filling and Sealing Machine, BFS MachineUS$ 1 - 69,999MOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Chemical, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Other, Tube
Packaging Material
Metal, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V/380V or Customization
Power
3.5KW
Place of Origin
Liaoning, China
Brand Name
SINOPES
Certification
CE, FDA, GMP, ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Automatic Metel Tube Filling & Sealing Machine, Automatic Laminated Tube Machine
Machine Details:
This Automatic Tube Filling Machine are designed and engineered to produce outstanding quality and precision tube filling and sealing of metal plastic laminate aluminum laminate tubes with the output up to 60 tubes per minute. This machine is widely used in pharmaceutical, food, household chemical and cosmetic, etc., industries.
·Automatically completes the actions of tube loading, washing, positioning, filling, folding, coding, trimming and discharging tubes
·Tube positioning is control by BANNER Photoelectric Sensor.·Equipped with Temperature Control and Separate Cooling System.
·No Tube, No Fill — Alarm will go off!·Stainless Steel Construction and all parts contacted with material are high quality 316L stainless steel to meet cGMP standard.
·Double Jacketed Temperature Control Hopper and Agitator are available as options.
·Metal tube filler can be folded in the form of twice-edge, triple edge or U-shaped folding.
·Suitable for all kinds of metal tubes.
·Provides high filling accuracy (±1%) for an extensive range of products, regardless of viscosity.
·Mechanical drive system is easy to understand and maintain.
·SIEMENS Touch Screen Control Technology.
·SIEMENS PLC Control System·SIEMENS Variable Speed Converter—control production speed
·SIEMENS Electrical Components
Main Technical Parameters:
Max. Speed: Up to 80 tube/ min
Dosing range: 5- 350 ml
Tube length: 50 - 240 mm
Tube diameter: 10 - 60 mm
Motor Power: 1.5 kw
Power for hot air: 3.3 kw
Plate: 12 stations
Dimensions: 2350mm x1100mm x2300mm(LxWxH)
Weight: 1350 kg
