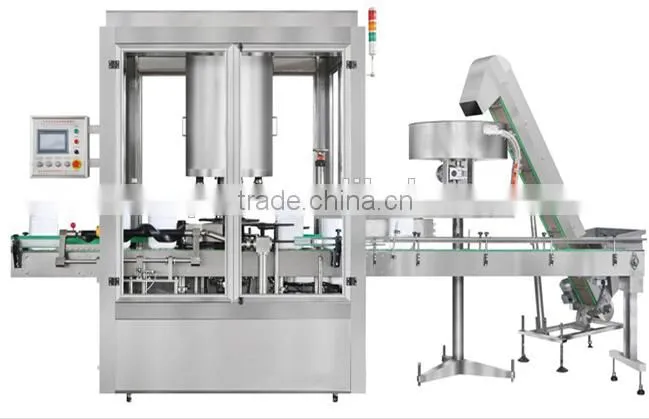

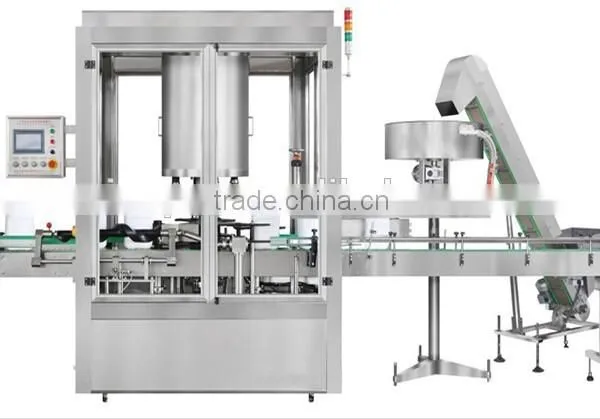

Automatic fully automatically rotary cap tightening machine, aluminum capping machine
Major Characteristics
With 6 mechanical hands,the mode is used for multi-geometry containers.It discharges cap at high speed without any cap reversed.Supplying cap system and mechanical hands work together in phase.When the cap is tightened,bottle and cap stand still relatively,and the clutch separates immediately so that cap and bottle are not apt to be damaged.
Main Performance parameter:
1,Main unit dimension (L×W×H) :2000mm×1300mm×2400mm
2,weight:1500kg
3,suitable specification of container: Height:80mm~280mm Diameter:Φ40mm~Φ100mm
4,suitable lids: Height:10mm~35mm Diameter:Φ20mm~Φ80mm
5,Power supply:AC380V 50Hz 6,Power:3kW
7,pneumatic(air-operated)source:0.6MPacean and stable compressed air
8,Filling heads:8heads
9,Production capacity:≤1300bottles/hour
| Type | Heads | Suitable bottles | Capacity(bottles/hour) | Precise | Way of taking caps | Dimension | Power | Power source | Air source |
| 6B | 6 | Round bottles |
6000 | Standard:99.9% | Machanical arm | 2000*1300*2400 | 3 | AC 380V;50HZ | 0.6MPa |
| 8B | 8 | 8000 | Machanical arm | 2200*1300*2400 | 3 |
Samples
Our main parts are from such world famous brands
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
