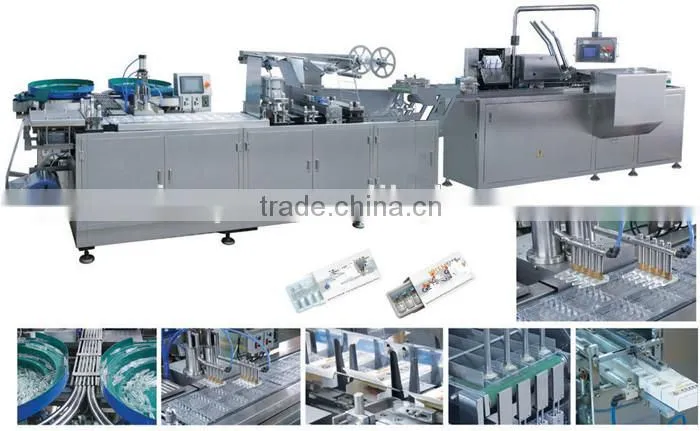

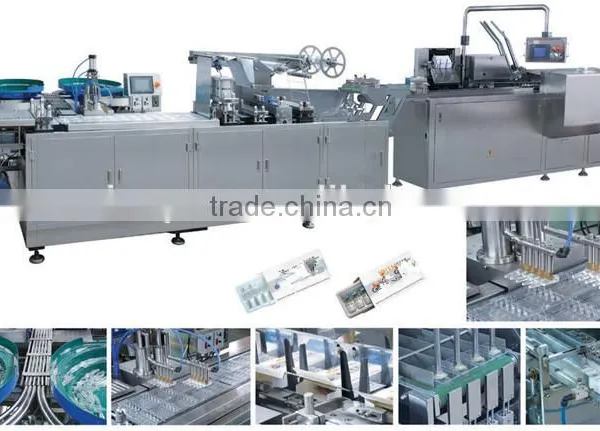

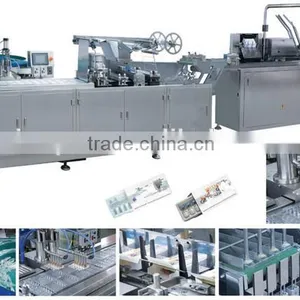

Automatic Ampoule Blister Packing Production Line
Applications:
According to the latest demand of the market, scientific research technicians of our company designed and developed the line machine which is specially for ampoule tray and packing into cartons.
The machine integrating labeling, tray making, detection and cartooning packing into an organic whole, which with compact structure,simple operation and PLC touch screen adopted. Changing parts can special designed by customer's requirement.
Main Technical Parameter for Blister Machine :
Capacity(Cut/min) |
5-25/min |
|
Travel Scope(mm) |
4-120 |
|
Packing material |
Packing material Pharmacy PVC(mm) |
(0.2-0.5) ×230-270 |
PTP alu foil(mm) |
(0.02-0.5) ×230-270 |
|
Clean compressed air(pressure) |
0.8-1.0MPa |
|
Air consumption(m3/min) |
≥0.5 |
|
Power |
AC380V 50Hz 6.5KW |
|
Water cooling for moulds |
recycle water with 60L/h consumption |
|
Overall dimensions(mm) |
3400×650×1450 |
|
Weight(Kg) |
|
1500 |
Main technical data:
Electric power |
Ac380V three-phrase and five-wire 50HZ total power 2.5KW |
|
Production capacity |
Rotation speed:50-100 b/min |
|
Volume of consumption |
20m3/H(pressure05-08Mpa) |
|
Packing material |
Box requirement |
250-300g/m2 |
Specification |
Max.Size:200×80×50 mm (L×H×W) |
|
Min.Size:50×20×14 mm(L×H×W) | ||
Leaflet |
Paper requirement |
55-65g/m2 |
Specification |
Max.Size:260×190mm(L×W) |
|
Min.Size |
100×100 mm(L×W) |
|
Overall dimension |
3100×1380×10 |
|
Weight |
About 1700Kg |
|
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
