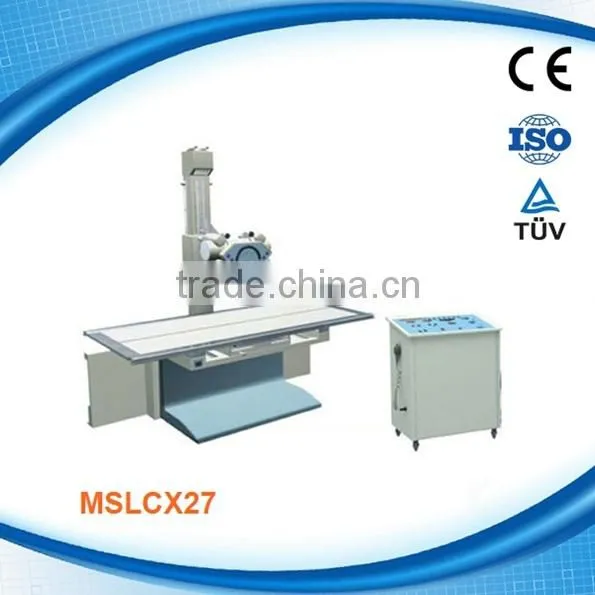

MSLCX27P X ray machine with table and bucky stand
Features:
1.Single diagnostic table and single X-ray tube with rotated anode.
2.X-ray tube capacity protection, anode starting-up protection and radiograph time-limited protection devices are provided.
3.The surface of the bed can move lengthways and crosswise, electromagnetism locking.
4.The X-ray tube assembly can rotate the cross arm, and be localization anywhere and vertical radiograph frame is provided.
Technology Parameters of the digital x-ray equipment
Description |
Technology Parameters |
|
Power Supply |
Voltage |
A.C.380V / 220V (±10%) |
Frequency |
50Hz ± 1Hz |
|
Capacity |
20KVA |
|
Power Supply Resistance |
A.C.380V≤1.0Ω; A.C.220V≤0.3Ω |
|
Maximum tube voltage |
120KV; 125KV |
|
Maximum tube currency |
200mA |
|
Radiograph |
Tube voltage |
40~120KV; 40~125KV |
Tube currency |
Small Focus: 50mA; 100mA; Big Focus: 100; 150; 200mA |
|
Time |
Divided into 23 grades from 0.04~6.3s |
|
High Voltage Generator |
Capacity |
20KVA |
X-ray Tube |
Model |
XD 51—20,40 / 125 |
Focus |
Small Focus 1×1mm2 Big Focus 2×2mm2 |
|
Rotated Speed of anode |
2800r / min |
|
Table for radiograph |
Length×width×height |
2000×760×680(mm) |
Movable scope of the bed |
Lengthways: ±450mm; Crossways: ±110 |
|
Pillar moves lengthways |
1000mm |
|
Distance from surface to film |
≤60mm |
|
Bulb tube moves up and down |
1100mm~1760mm |
|
Radiography item |
10"×12" 11"×14" 12"×15" |
|
Beam Limited Device |
Manually single automatic multi-optional. |
|
