Medical surgical lamps MSLSL08-M
Cold light halogen lamps
Feature
1. Full close streamline lamp body design completely meets the demand of the sterilization and high standard of laminar flow purification in operation room.
2. The Whole reflection optical system of the cold light halogen surgical lamps is made by CAD/CAM technology, its illumine depth is up to 1000mm.By using color temperature compensation technology, the color reversion is uprised
3. Streamline lamp panel use Germany PC material pressing and injecting, make the air clean and improve the cleanliness of the operation surface

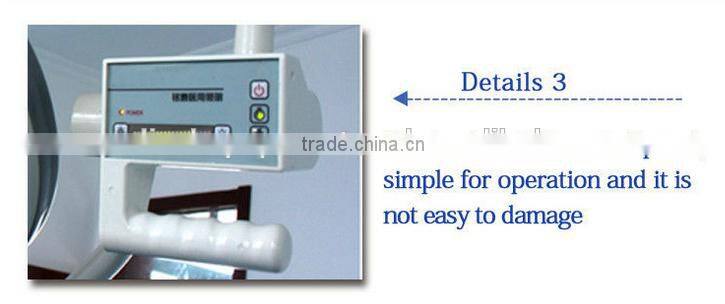

4. With advanced double switch control system,when the control panel of surgical lamps failure,lamp head install an emergency switch,in order to ensure the normal use of surgical lamp.the control panel was on the spring arm joint,film touch switch,simple for operation and it is not easy to damage

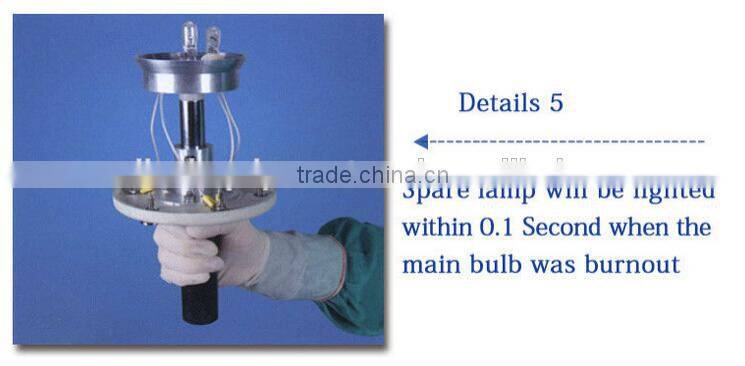

5. With spare bulb automatic switch function, when the main bulb was burnout, spare lamp will be lighted within 0.1 Second.There's failure indication in the handle control panel, to recommend the bulb to be changed after operation
6. The halogen surgical lamps MSLSL08-M adopting Germany long life halogen bulb, life can be up to 1500 hours.there is soft start up unit

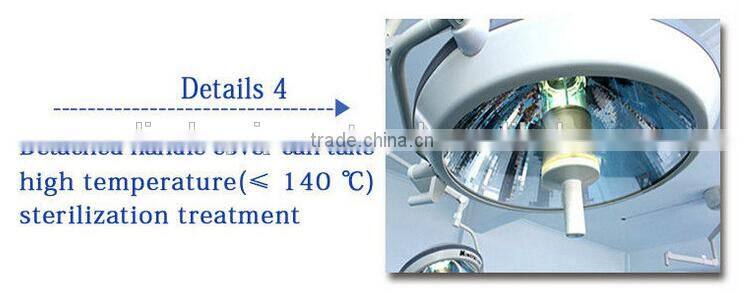

7. Focusing system has a delicate structure and easy to change bulb and the ceramic lamp socket;Detached handle cover can take high temperature(≤ 140 °C) sterilization treatment
9. It can be directly upgraded to LED surgical lamp only by changing the lamp head.
Technical parameters of the surgical lamps
| Item | Medical cold light halogen surgical lamps MSLSL08-M |
| Illuminance (Lux) | 30,000-160,000 |

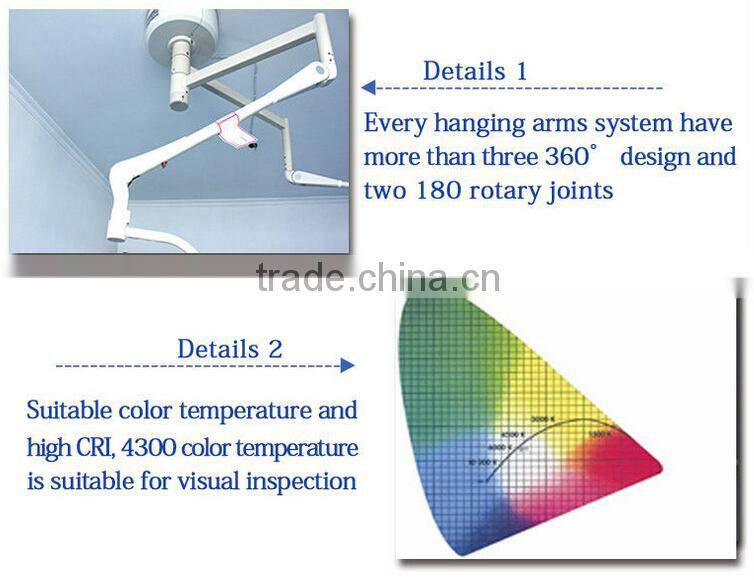

| Color temp (Kelvin) | 4300 ±50 |
| Colorrenderingindex(Ra) | 96 |
Diameter of spot(mm) |
100-360 |
| Illumination depth(mm) | ≥1000 |
| Light Note depth L1+L2 | ≥1500 |
| Ee/Ec (mW/ m2 lux) | 3.8 |
| Light adjusting steps | 16-steps continuous light adjustment |
| Temp rise(°C) (surgical field) | ≤10 |
| Temp rise(°C) ( surgeon’s head) | ≤2 |
| Automatic switching | Automatic switching |
| Power | ~220V/50HZ |
| Input power (W) | 400 |
| Bulb specification | halogen(150/150) |
| Bulb lifetime | over 1500h |
| Lowest height of installation(mm) | 2400 |
Detail show of the halogen surgical lamps

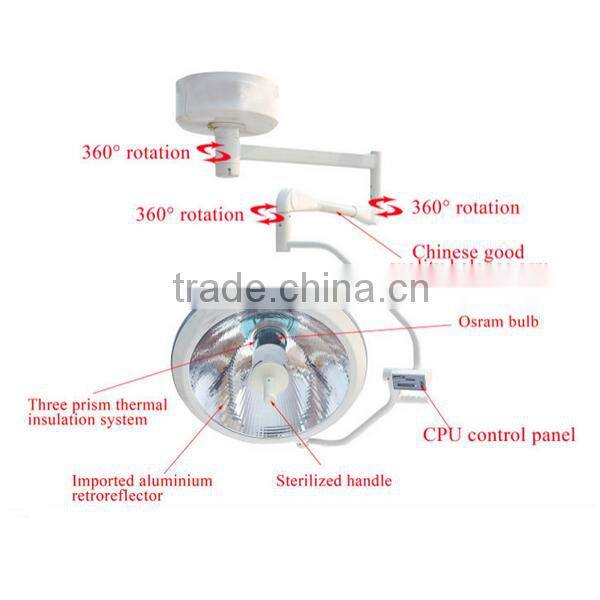

Surgical lamps MSLSL08-M Configuration
- Germany ORSAM bulb and lamp socket
- Multiple mirror
- CPU control handle controller
--------------------------------------------------------------------------------------------------------------------------------------
Mobile surgical lamps for your choose!
LED surgical lamps:
Mobile halogen lamp
