(MSLCU18)New General Handheld Color Doppler 3D 4D Ultrasound Scanner
MSL owns START Medical Products such as Ultrasonic Scanner that others do not have!!!

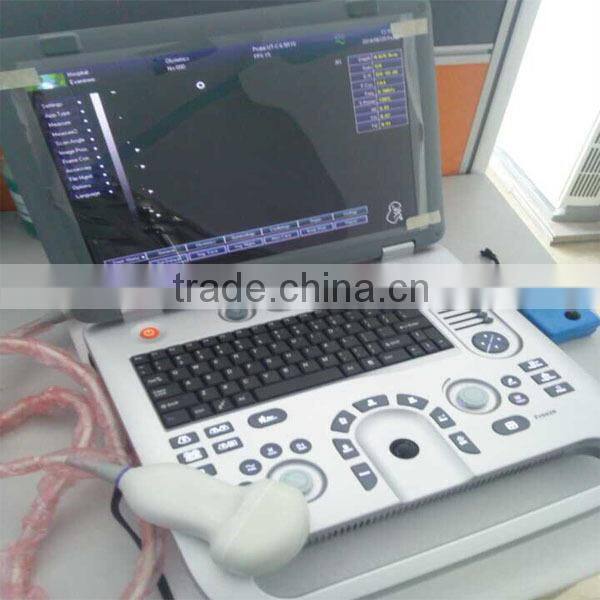

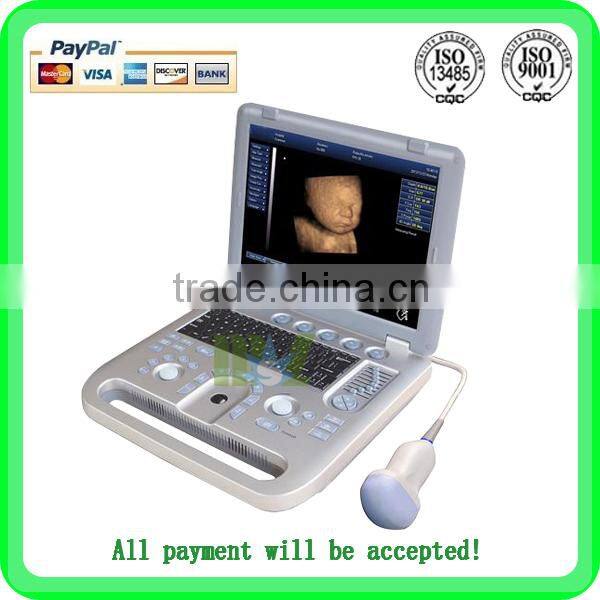

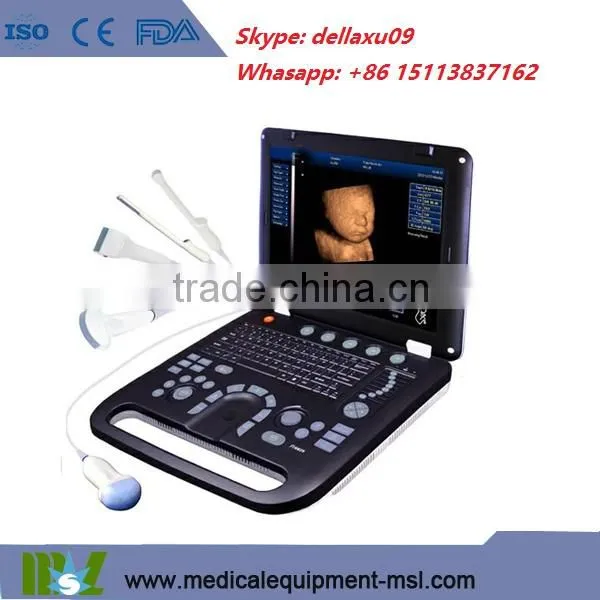

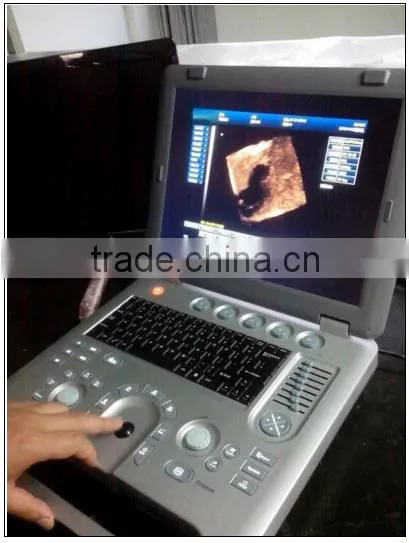

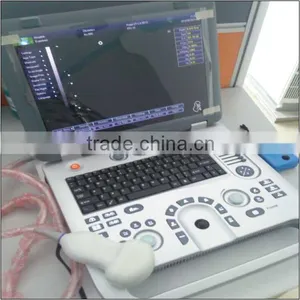

Image of Color Doppler 4D Ultrasound Scanner MSLCU18:

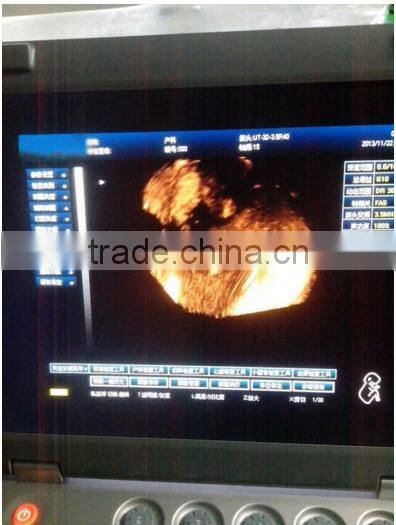

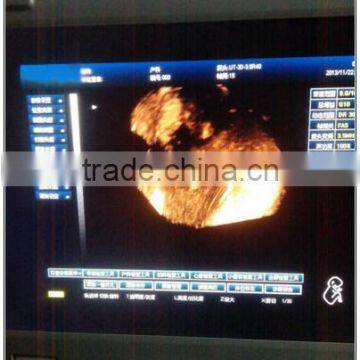

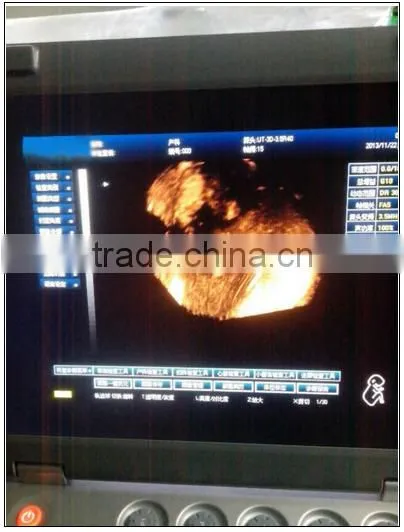

Clinical Image by Ultrasound Scanner MSLCU18:

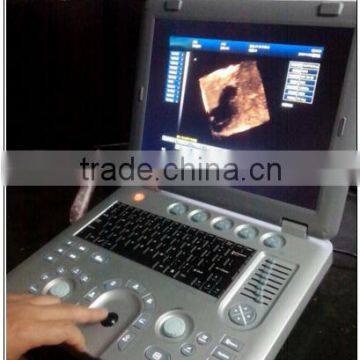

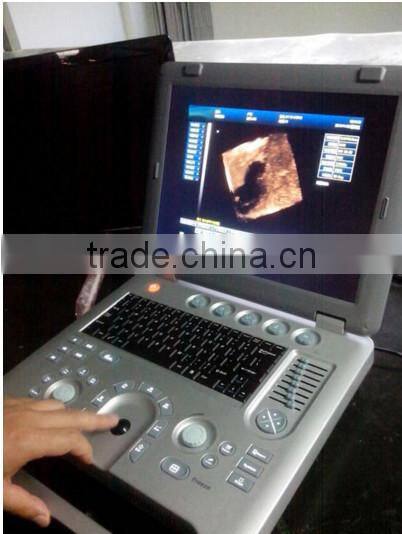

Interface Clinical Image by Ultrasound Scanner MSLCU18:

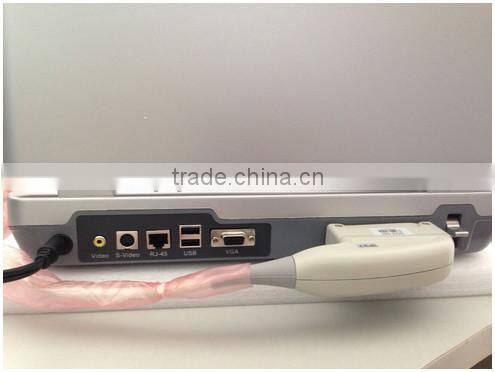

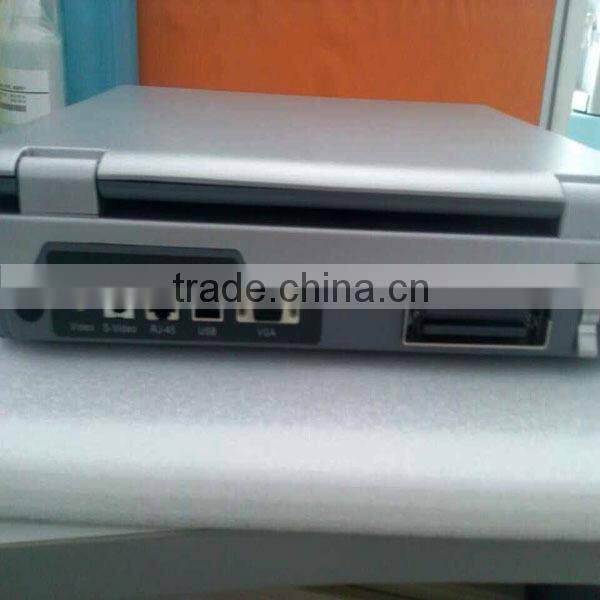

Backside Image for Ultrasound Scanner MSLCU18:

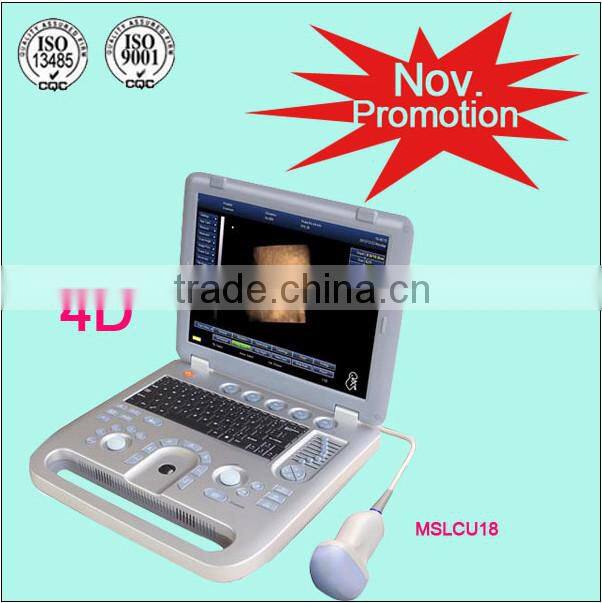

Front Image for Ultrasound Scanner MSLCU18:
Main Specs of Doppler 4D Ultrasound Scanner MSLCU18:
|
Cutting-edge Imaging Techniques
|
1. Digital Beam Forming (DBF) 2. Real-time Dynamic Aperture (RDA) 3. Dynamic Receiving Focus (DRF) 4. Tissue Harmonic Imaging (THI)
|
Applications |
General, OB/GYN, Cardiology, Urology, Small organ, etc |
Imaging mode |
B, 2B, 4B, M, B/M |
One-click optimization |
Preset various calculation formula, diagnostic parameters, case library, etc |
File management |
Image save, video save, examination report auto-generation |
Peripheral ports |
USB2.0/ Video/ /S-video/RS-232/ DICOM3.0 |
Ergonomic Designed Keyboard, Radium Carved Soft Keys
Multi-frequency, High-density, Broadband Probes
•Volume
• Convex
• Linear
• Trans-vaginal
•Trans-rectal
• Micro-convex
Clinical Diagnostic Solutions of 4D Ultrasound Scanner:
Applications |
General, OB/GYN, Cardiology, Urology, Small organ, etc |
Imaging mode |
B, 2B, 4B, M, B/M |
One-click optimization |
Preset various calculation formula, diagnostic parameters, case library, etc |
File management |
Image save, video save, examination report auto-generation |
Peripheral ports |
USB2.0/ Video/ /S-video/RS-232/ DICOM3.0 |
Standard Configuration of Our Color 4D Ultrasound Scanner MSLCU18:
• Color ultrasound scanner main unit
• 3.5MHz/R80 volume probe
• 4D imaging software package
• 250ml coupling gel
• AC adapter
• Built-in rechargeable lithium battery
• Protection bag
• Grounding cable
• Fuse (2)
• Operation manual
Options for Color 4D Ultrasound Scanner MSLCU18 :
• 3.5MHz/R60 convex-array probe
• 3.5MHz/R20 micro-convex-array probe
• 7.5MHz/L40 linear-array probe
• 6.5MHz/R13 transvaginal probe
• DICOM3.0
• Biopsy guide for convex probe
• Video printer
• Laser printer
• Ergonomic mobile trolley
• Air captain suitcase Drag and pack backbag
Specifications for Color 4D Ultrasound Scanner MSLCU18:
|
MODEL |
MSLCU18 |
Monitor |
15 inch LED |
Display mode |
B, B+B, B+M, M, 4B, 9B |
Image gray scale |
256 level |
Cine loop |
Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M |
Image storage |
>50,000 frames |
Scan angle |
60-160 degrees, depending on probe |
Scan depth |
20mm~240mm |
Dynamic range |
≥100dB, 4-level adjustable |
Image flip |
Up/down, left/right, black/ white, 90/180/270° |
Zoom |
Continuously, real-time dynamic PIP |
Focus position |
Adjustable |
Focal space |
Adjustable |
Measurement |
Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc. |
Software packages |
General, OB, GYN, cardiology, urinary, small organ |
Notation |
Date, time, name, sex, age, doctor, hospital name, full screen notation |
Body mark |
43 types |
Peripheral port |
Video, S-video, USB2.0, DICOM3.0, VGA |
Battery volume |
8,000mAh |
Power consumption (MAX) |
75VA |
Dimension |
35.5*36.6*7.5 CM |
Net Weight |
5kgs |
Certification of Medisinglong Group:
Why Choose Us:
- Factory based.
- MSL Export Team made up by 10 people, Team-work Spirit, Excellent Colaboration.
- Dinamic & Young but experienced Team to offer you best services.
- MSL owns START Medical Products such as Ultrasonic Scanner that others do not have!!!
- 10 Year engaged in domestic market,7years for oversea market.
Packages for some products:
Welcome to medicalequipment-msl.en.china.cn. If you have any demand in color doppler ultrasound scanner(MSLCU18). Please feel free to contact della(at)
Pls kindly contact us as below:
Email: della(at)
Whatsapp: +86 15113837162
Skype: dellaxu09
