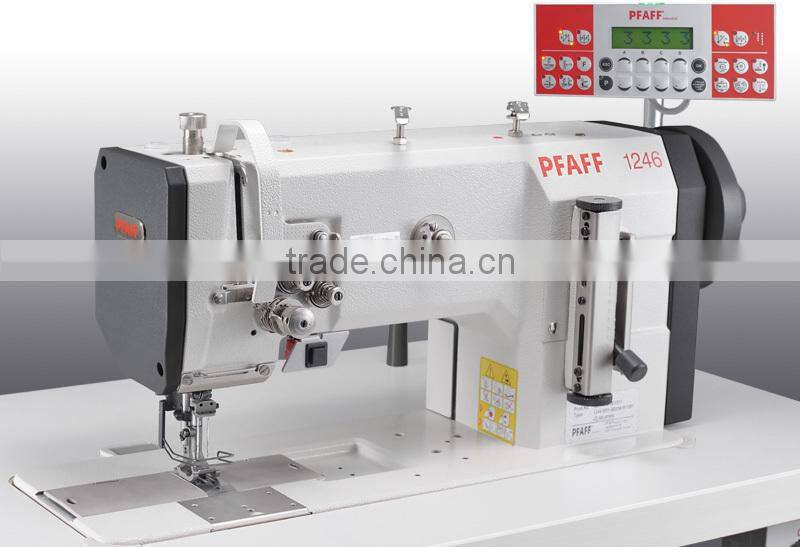

PFAFF 1246 walking foot lockstitch industrial sewing machine parts
- 10000 Set / Sets per Month
- China main port
Product Details
Condition: | New | Type: | Industrial Sewing Machine | Place of Origin: | Shaanxi, China |
Brand Name: | PFAFF | Model Number: | 1246 | Stitch Formation: | Lock Stitch |
Mechanical Configuration: | Flat-Bed | Max. Sewing Speed: | 2800 r.p.m | Max. Sewing Thickness: | 14MM |
Stitch Length: | 8MM | Power: | 550W | Overall Dimensions: | 270x115MM |
Feed Mechanism: | Walking Foot | Certification: | ISO9001 | After-sales Service Provided: | No overseas service provided |
Product Description
PFAFF 1246 walking foot lockstitch industrial sewing machine parts
Applications:
PFAFF 1246 can be used for medium-heavy materials, e.g. furniture and car upholstery, leather clothing, leather goods, etc.
Features:
- High traction due to unison feed
- Even feed motion without any ply-shift of individual layers
- Large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks (capacity with 40/3 threads: 50 m)
- Automatic hook lubrication
- Efficient hook protection against thread jamming due to standard built-in overload coupling (M)
- Rugged and durable machine construction
- The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
- Easy to service
- Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
- Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy
Specifications:
Model | 1246 |
Max. sewing speeds | 2.800 s.p.m |
Max. stitch length | 8,0 mm |
Stitch type | 301 (Lockstitch) |
Needle system | 134-35S |
Machine sets:
Sewing samples:
TOPEAGLE INTERNTIONAL LTD is a comprehensive trading company for machinery and hardware. which can supply the full range TOPEAGLE brand industrial sewing machines for garment manufacturing , shoe making, and furniture manufacturing. we always pay top attention on the quality of the products.
With tens of years experience for industrial sewing machines and hardware, we cooperate with the several top companies of the world for industrial sewing machines, now we have the five production bases in Shaanxi, Jiangsu, Zhejiang and Guangdong. Which can supply us the full range of industrial sewing machines, and also we have the We always supply the top quality products and top service to the our clients, and let the customers satisfaction is our first aim.
1. Q: Is machine sample available?
A:No. We can supply spare parts sample, but customer needs to pay for it and bear shipping cost, we will return the parts value once order confirmed.
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Do you supply overseas installation and debugging?
A: Yes, but customer needs to bear all overseas expenditure.
4. Q: Do you supply spare parts?
A: Yes, and with fast lead time.
5. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate.
