Specifications
MSLCU08 color doppler ultrasound scanner1.Portable 3d ultrasound
2.Full-digital color ultrasound
3.Digital portable 3d
MSLCU08 Color doppler ultrasound scanner
• Professional manufacturer for 6 years.
• Various medical equipment for your easy sourcing
• Good after-sales services agreement
• Stable quality
We specialize in produce Ultrasound machine, Blood analyzer, X-ray machine, etc. If you Want to know more details about Medical equipment?Click here:medicalequipment-msl.en.china.cn
Through few years development. Because our products' better performance,high quality,favorable price and excellent pre-market after-sales services. We have became a professional supplier in Medical equipment. Our products are sold more than 36 countries in the world. Such US. , UK., Canada, Frence, Germany, etc. and well appreciated by their purchasers. Therefore,we have great confident that our products could meet your different requirements.
I hope we have more chance to cooperate with each other and both of us business is booming.Thank you for reading.
We could give you fastest delivery and one year quality guarantee.
We are professional supplier specialized in all kinds of portable 3d ultrasound machine, ultrasound scanner, ultrasound system.
Specification
Trolley Colourful Doppler Ultrasound Scanner is composed of advanced technology of digital color Doppler.High performance.
With high precision digital beam forming and Doppler ultrasonic imaging technology, the MSLCU08incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image.
Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accruacy and analysis efficiency.
Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
Displaying mode
B,2B,4B,left&right B|M,B|D,PW,M,B mode part zoom; B|C|D,B|C|M,B|C duplex,PW,CFM,CPA
Signal processing
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
Image processing
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image.
General measurement
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram
M mode: cardiac rate, time, distance, speed.
Measurement & report packages
GYN (four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
Storage function
Probe parameter, image, cine loop, measurement data and report
Cine loop
Operated by automatically and manually, speed optional, searching cine loop, forward/
backward cine loop.
Input/output interface
VGA, network, USB, VIDEO, parallet communication port, serial communication port.
Standard configuration
Main unit, 3.5MHz convex probe, 17" LCD monitor, 3 probe connectors, DVD-RW, 6 USB ports, 7.8MHz high-frequency linear probe, free arm.
Optional configuration
3.5MHz micro-convex probe, 7.0MHz transvaginal probe, color video printer, laser printer, DICOM3.0.

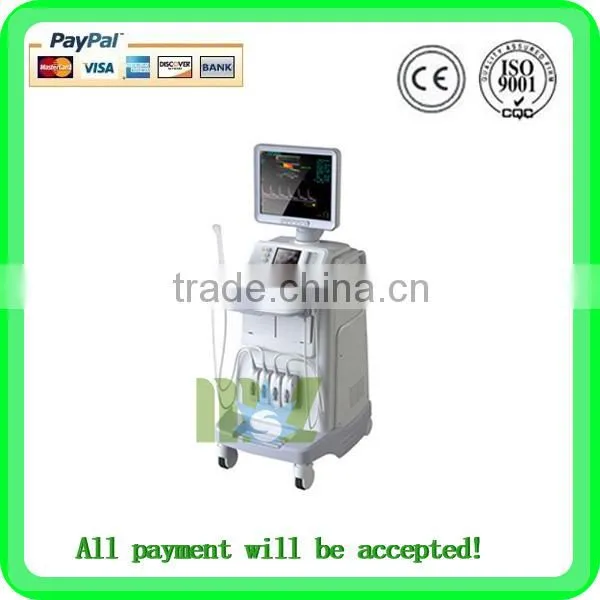

Image of color doppler ultrasound scanner
