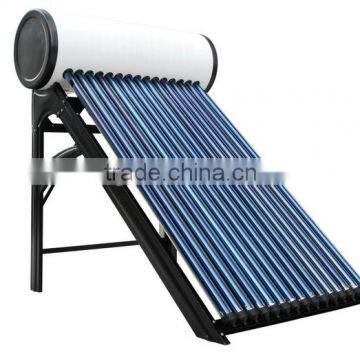

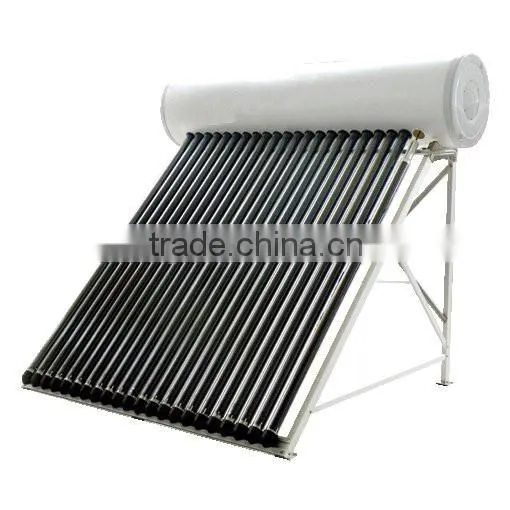

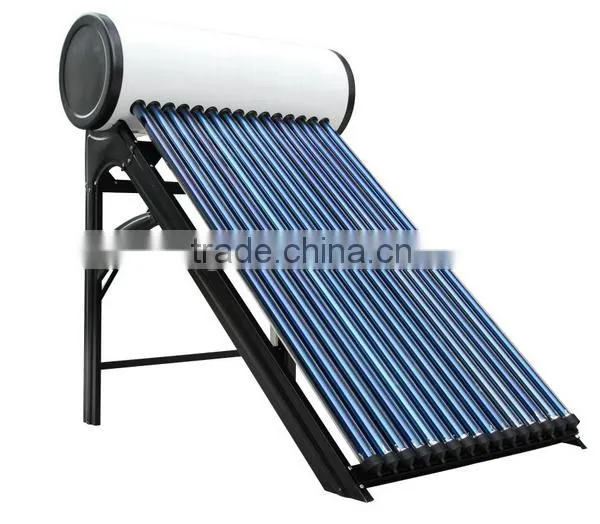

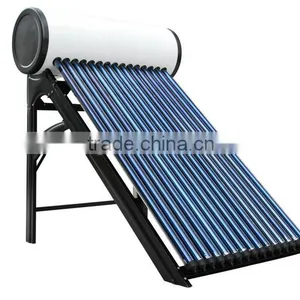

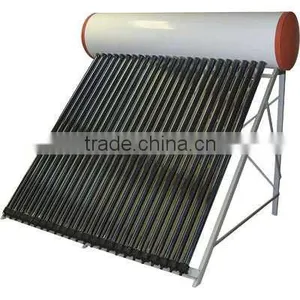

Help CenterHeat Pipe Pressurized Solar Hot Heater (direct Solar System)
Related Products
-
Pressurized Solar Water Heate(glass Vacuum Tube) 200LUS$ 290.00 - 300.00MOQ: 1 Set -
High Pressure Solar Water Heater/150Liters/Painted Steel/bathroom Use for 3peopleUS$ 160 - 180MOQ: 1 Set
-
Compact Pressurized Solar Water Heater (10 Tubes)US$ 215 - 230MOQ: 1 Set
-
High Quality 200L Compact Pressure Heat Pipe Solar Water Heater(manufacturer)US$ 350 - 380MOQ: 1 Set
-
High Quality 200L Integrated Pressurized Solar Water Heater(manufacturer)US$ 350 - 380MOQ: 1 Set
pressurized solar water heater with assistant tank
How solar water heater system works
1. Solar water heater system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.
Specification of the Pressurized solar water heater
Tank:
1.Inner tank:0.31mmt thickness white colored steel ,diameter 460mm.
2.Out tank:0.4mm thickness stainless steel 304 food grade diameter 360mm.
3.Tank cover:0.4mm thickness Galvanized steel.
4.Welding of the tank:High frequency welding and argon arc welding.
5.Inlet and out let:1/2 inch.
6.Tank insulation layer:50mmhigh-density polyurethane foam.
Vacuum tube:
Three layer high efficiency vacuum tube
1:glass material:high borosilicate 3.3glass
2:external pipe diameter and thickness: Φ58mm1.6mm thickness
3:internal pipe diameter and thickness: Φ47mm 1.6mm thickness
4:pipe length: 1800mm
5:structure: (selective absorptive coating)/AL-N/AL,cu,stainless steel
6:hail resistance:≤25 mm
Frame/Structure
Material of the structure:Galvanized steel1.3mm thickness.
Cover of the coating: green.(can be painted as you like)
Angle of the structure:45 degree(can be made according to the latitude of your place.)
Packaging and shippping
Packaging
For container quantity:the package will be common export cartons.
For less container quantity:tank and frame will be export cartons, vacuum tubes must be wooden boxes.
Shipping
Loading quantity
|
Model |
Tube size |
Tube Qty |
Capacity |
Loading quantity |
||
|
|
|
|
20GP |
40GP |
40HQ |
BG-IUA1 |
58mm/1800mm |
10 |
100L |
76 |
153 |
182 |
BG-IUA2 |
58mm/1800mm |
12 |
120L |
65 |
130 |
160 |
|
BG-IUA3
|
58mm/1800mm |
15 |
150L |
55 |
109 |
135 |
BG-IUA4 |
58mm/1800mm |
18 |
180L |
46 |
92 |
118 |
BG-IUB1 |
58mm/1800mm |
20 |
200L |
41 |
82 |
105 |
BG-IUB2 |
58mm/1800mm |
25 |
250L |
36 |
72 |
90 |
BG-IUB3 |
58mm/1800mm |
30 |
300L |
29 |
58 |
75 |
BG-IUB4 |
58mm/1800mm |
36 |
360L |
25 |
50 |
63 |
Production for shipping time
For 20 feet contianer:in 7 workinf days
For 40HQcontainer:in 10 working days
For Less than 20 sets:5 working days.
Sales manager:Peter
Tel:+86-13758332413
Skype:solar5566
