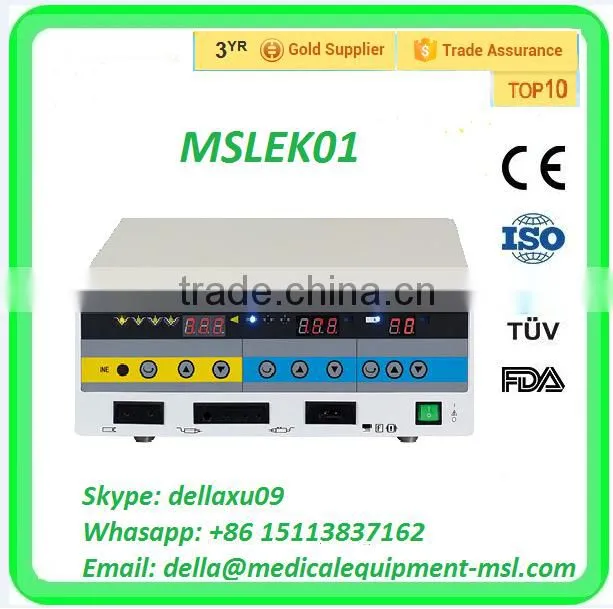

MSLEK01A High End Portable bipolar high-frequency electrosurgical generator/High-Frequency Electric Knife
High-Frequency Electric Knife (Vaporization type MSLEK01)
Features
Maximum output power: 350W
Eight output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) mixed cut 3, (5) electrocoagulation 1, (6) electrocoagulation 2, (7) electrocoagulation 3, (8) Bipolar condensate;
Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation; mixed cut 3 70 % cut, 30% coagulation;
Pure cut: Maximum output power 350W, enabling easy surgery on any tissues and structures;
Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;
Electrocoagulation 1: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;
Electrocoagulation 2: Applicable for general open surgery and fine surgical surface coagulation;
Electrocoagulation 3: Applicable for general open surgery and deep tissue jet coagulation surgery, featuringstrong jet coagulation effect;
Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;
Panel operation: Overall microcomputer automatic control, three-zone (LED) digital display, key function/power, switch/ settings, waterproof panel design;
Automatic adjustment: Automatically fine adjust power in a certain range to ensure increasing impedance and no power decay in liquid and gasified tissues, the consistency of the cutting effect;
Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm until the contact area returns to normal, which could effectively avoid burning patients by plates.
Application range:Used in arthroscopic, cystoscopy, endoscopic, hysteroscopy, anorectal, general surgery, etc
Technical parameters
Safety standard |
I-type BF-type |
|
Ambient temperature range |
+10℃~ +40℃ |
|
Relative humidity range |
30 ~ 75% |
|
Atmospheric pressure |
700~ 1060 hPa |
|
Power supply |
220V ± 22V 50Hz ± 1Hz |
|
Operating frequency |
530KHz ±2 |
Load: Monopolar cut coagulation 300Ω, Bipolar coagulation 100Ω |
Rated output power |
a)Pure cut: 1W ~ 350W(Peak voltage 1500V) |
b) Mixed 1: 1W ~ 250W(Peak voltage 2000V) |
c)Mixed cut 2: 1W ~ 200W(Peak voltage 2500V) |
d) Mixed cut 3: 1W ~ 150W(Peak voltage 3000V) |
|
e) Electrocoagulation 1: 1W ~ 120W(Peak voltage 3500V) |
f) Electrocoagulation 2: 1W ~ 100W(Peak voltage 4020V) |
|
g) Electrocoagulation 3: 1W ~ 80W(Peak voltage 4700V) |
h)Bipolar coagulation:1W ~ 70W(Peak voltage 620V) |
|
Overall energy consumption |
≤1400VA |
|
Transport and storage |
Ambient temperature range: -40℃ ~ +55℃ |
b) Relative humidity range: ≤93% |
|
Atmospheric pressure: 500hPa ~ 1060hPa |
|
Standard configuration sheet
1 host |
2 electric knives |
5 disposable neutral plates |
1 bipolar electrocoagulation forcep |
1 neutral electrode connecting |
1 bipolar forceps wire |
1 power line |
1 medical foot switch |
ESU Neutral Patient Plate:
Reusable ESU Pad for Electrosurgical Unit
- Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
- The material is non-cytotoxic, without stimulus and sensitivity.
- Neutral electrode cable : 3m

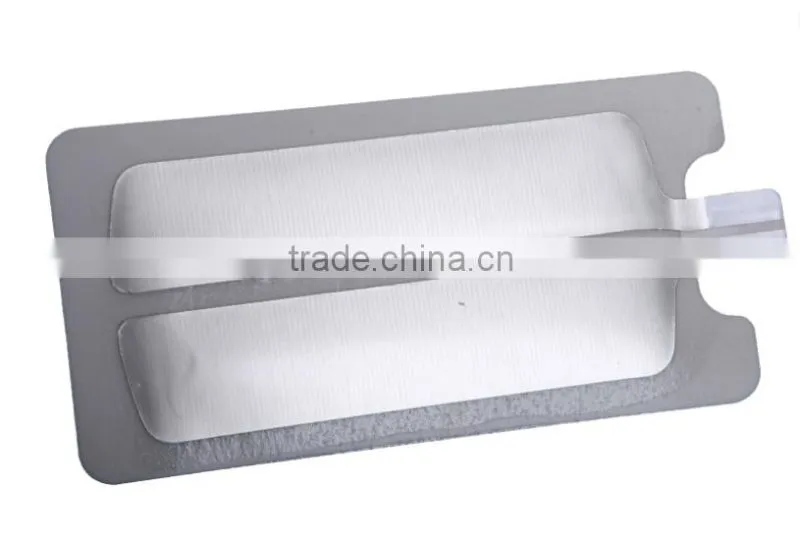

Disposable ESU Plate for Adult
- Excellent adhesive and conductance.
- Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
- The material is non-cytotoxic, without stimulus and sensitivity.
Best Durable Disposable Grouding Pads for AdultExcellent adhesive and conductance.
- Compatible with electrosurgical generator, radio frequency generator and other high frequency equipment.
- The material is non-cytotoxic, without stimulus and sensitivity.

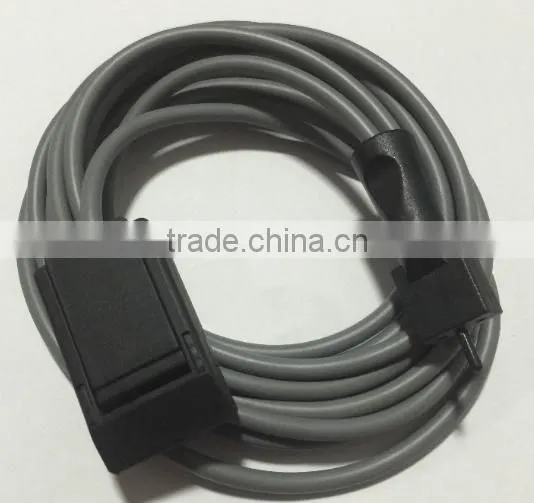

ESU Neutral Plate Cable
- Compatible with electrosurgical generator, radio frequency generator and other high frequency unit.
- Patient Plate cable : 3m.

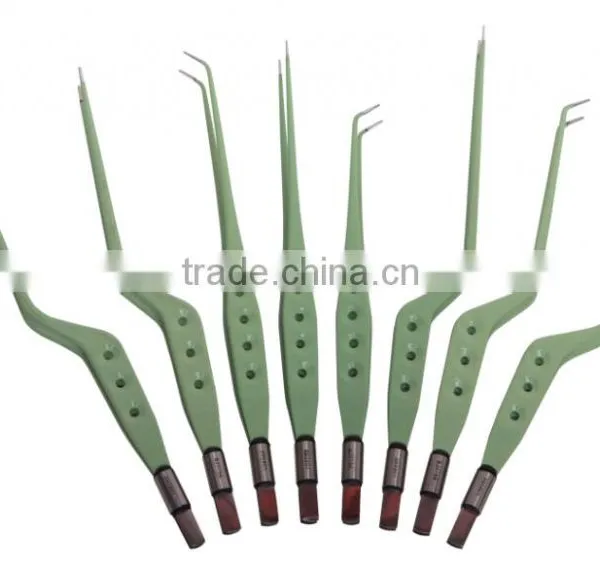

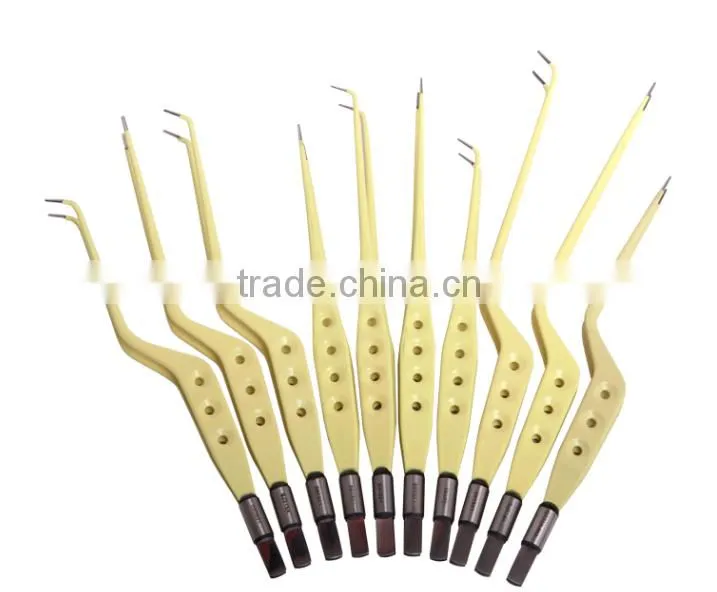

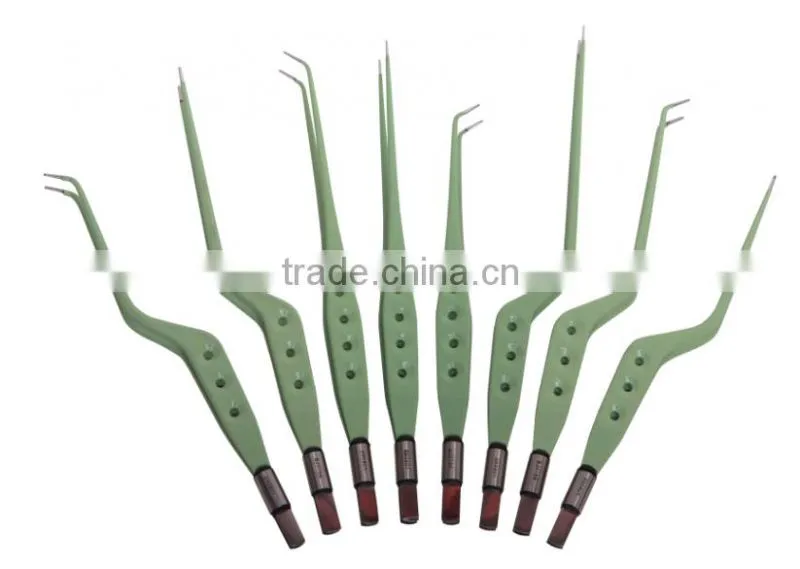

ESU Bipolar Forceps
- MSL owns START Medical Products such as Surgical Equipment that others do not have!!!
- Factory based.
- MSL Export Team made up by 10 people, Team-work Spirit, Excellent Colaboration.
- Dinamic & Young but experienced Team to offer you best services.
- 10 Year engaged in domestic market,7years for oversea market.
Medsinglong Global Group CO.,Limited engages in manufacturing Medical Equipments & the Subsidiary Products for 10 years. MSL owns Professional Senior and Skilled Online Marketing Team and Procurement Team,supplying (Low Prices with High Quality) cheap medical equipmentswith good service which is a very strong advantage of MSL in the same level of others. Therefore,lower the cost of your medical devices with good service and high quality is our goal. You can always get your favorite products with us for hospital, clinic,or personal use.
Our mission is be the best,always be better; we can do what you think! We are ready to serve you!
Pls kindly contact us as below:
Email: della(at)
Whatsapp: +86 15113837162
Skype: dellaxu09
