Home > Consumer Electronics > Audio & Sets > Professional Audio > C-mark High Power pa System for Outdoor Live Performance With HIFI Equipment

C-mark High Power pa System for Outdoor Live Performance With HIFI Equipment

Name: C-mark High Power pa System for Outdoor Live Performance With HIFI Equipment
Brand: C-mark
SKU: 114978495

C-mark High Power pa System for Outdoor Live Performance With HIFI Equipment thumbnail-1

C-mark High Power pa System for Outdoor Live Performance With HIFI Equipment photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

C-mark

Model Number:

PA system

Contact Supplier Request Quote Chat Now

Shenzhen Bao Ye Heng Industrial Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name C-mark

Model Number PA system

C-mark high power pa system for outdoor live performance with HIFI equipment

High Quality Sound PA System - U System

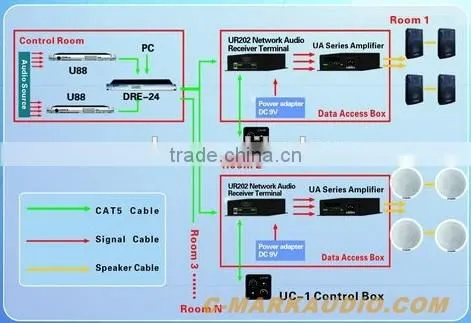

U system is specially designed for high-quality PA background music System. The System provides CD quality sound with selectable 8 channels sound source, volume control and Mute control at any receiving terminals. The transmission distance is up to 60 kilometers by optical fiber cable, 100 meters by CAT5 cable. Fully reflect the concept of decentralized layout, decentralized management, and centralized control. The system is the inevitable choice for airports, stations, hotels and other high-end venues.

( high power pa system )

UC-1 Control Box Features:

1.The brand model number will show in yellow light when the power is on, as the power indication.
2. Press down Power (Standby) button to switch on the power amp, press again to shut down the power amplifier.
3. Press the mute control button to control UR202 transmitter muted.
4. The volume control knob controls the UR202 transmitter output volume.

5. 8 segment LED status display, showing red state of maximum volume.
6. Turns program source select knob to control UR202 transmitter to select from 8 stereo channels.
7. The corresponding channel indicate light will be on when the program source select knob turns to any of the 8 channels.
8. Connect UC-1 with UR202 via RS485 interfaces to support the UC-1 terminal control box with power supply and data transmission.

( high power pa system )

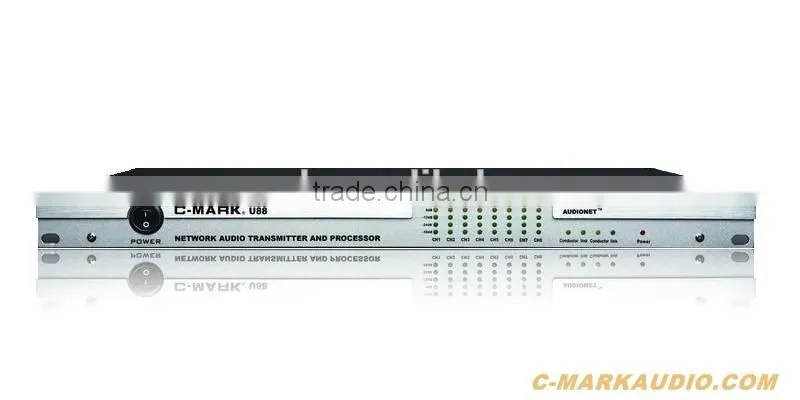

U88 network audio transmission processor features

1. Simple Connection. Just connect two U88 pocessors via the CAT5 with audio network, audio signal transmission and processing can be realized.

2. Easy operation. Use a simple graphical operating software to control U88 processor and preset one processing mode stored in a memory chip, convenient to use.

3. Powerful audio processing. RS1600 software offers varieties of virtual digital audio processing equipment,and it can entirety replace a large number of professional audio processing equipment.

Network Audio Receiver Terminal UR202 Introduction:

1. 100BASE-Tx, 100Mbps CobraNet full duplex network real time audio transmission.
2. Supports up to 48K/96K, 24BIT uncompressed CD-quality audio.
3. SNMP network bi-directional control, monitoring and management.
4. TFTP network software upgrade
5. DSP audio signal in real time adjustment: Parametric EQ (Q value is adjustable), compressor, limiter, noise gate, filter, electronic crossover, electronic filtering, mixing, dual matrix management.
6. 2 channels input & 2 channels output.
7. With both LINE IN input and MIC input, microphone phantom power output.
8. Phoenix-style balanced input and output connector.
9. Support the 485 network transmission.
10. Dual Network interface design, device internal network redundant backup.
11. LINK clock input and output, to achieve redundant backup between devices to ensure the audio transmission control perfectly safe.
12. Output level real-time LED indication.

UA Series Class D amplifier technology parameters

Model No.	UA80	UA120
Output power 8Ω/1KHZ 4Ω/1KHZ	240W RMS 280W RMS	260W RMS 2120 RMS
Bridged	160W RMS	240W RMS
Input Sensitivity	-10dB	-10dB
Input Impedance	10KΩ(Unbalanced)	10KΩ(Unbalanced)
Frequency Response	20Hz-20KHz@ 8Ω	20Hz-20KHz@ 8Ω
THD+N	0.01%(1KHz,1W)	0.01%(1KHz,1W)
S/N	100dB	100dB
Power Supply	AC 110V ~60Hz or AC 220V ~50Hz (selectable)	AC 110V ~60Hz or AC 220V ~50Hz (selectable)
