Specifications
2 Way Active high quality audio speakers2.CobraNet Port
3.Digital and Analogue signal Input
4.Remote Control
5.D amplifie

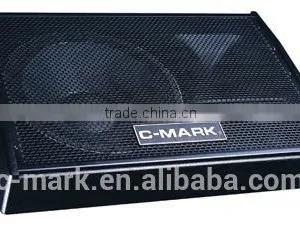

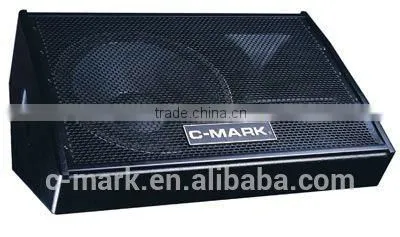

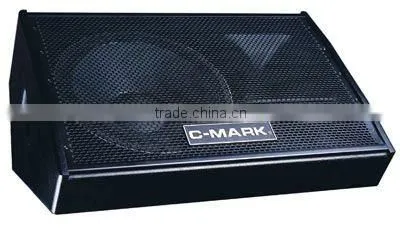

C-Mark K15M Network 2 Way Active outdoor stage sound system speaker
K Series Network Active Loudspeakers Features:
K Series Network Active Loudspeaker is a full range loudspeaker, which integrates the function of network transmission, remote control & monitoring, with built-in class D digital amplifier. It features high effective, outstanding sound, complete protection and perfect compatibility of electromagnetism. Users can monitor and adjust the loudspeaker remotely through a CAT5 line by computer. The loudspeaker can receive audio signal from network via the built-in CobraNet board. K Series Network Active Loudspeaker is suitable for 110V AC & 220V AC.
1) K12: two-way, 12” woofer + 44T tweeter
2) K15: three –way, 15” woofer + 75T mediant + 44T tweeter
3) K15M: two –way, 15” woofer + 44T tweeter
4) K30: three –way, 2*15” woofer + 75T mediant + 44T tweeter
5) K18: 18” subwoofer
6) It adopts CobraNet technology, with backup analogue input & CobraNet input.
7) Users can control and monitor the working temperature, loading, voltage and current of the loudspeaker remotely by PC, and achieve gains control & long distance power on and off .
8) By using one CAT5 line and RJ45 connectors, audio transmitting, controlling and monitoring can be achieved, very easy for installing and operating.
9) The mid-high and woofer is respectively driven by class D amps.
10) With complete protection(short-circuit protection, over current protection, over and under voltage protection, DC protection, power compression, temperature compression, long time power output limit, clipping limit)
11) The switching technology provides high reliability, small size, low weight and high efficiency. A PMC converter works as a high frequency sampler, converting the variable amplitude (audio) signal into an impulse sequence with average value equal to the audio input. The loudspeaker uses very high frequency conversion rate to obtain high performances.
12) Open choice of 110V±20%/220V±20% power supply.
13) Independent MCU control, independently running without computer.
14) User can control every channel independently.
15) All setup parameters can be stored in the memorizer.
16) Firmware is updatable via RS232 port.
17) Redundant network connection
Specifications:
K15M
Hi Output Power (8Ω/800Hz): 50W
Low Output Power (4Ω/8KHz): 350W
Input Sensitivity: 0dB
Input Impedance : Line 20KΩ(balance) 10KΩ(unbalance)
Crossover: 2 KHz
Frequency Response: 50-18 KHz
Sensitivity: 97dB(1m/1w)
Slope: 24dB
THD+N: Hi 0.03% (8KHz,1W)
Low 0.01%(800Hz,1W)
SPL: Hi 105dB (A weighted)
Low 110dB (A weighted)
Power Supply: AC110V/AC220V (2 kinds power supply)
Fuse Tube Current: 12A(AC110V )6A(AC220V )
