Home > Consumer Electronics > Battery & Charger > Primary & Dry Battery > 3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery

3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery

3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-1
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-2
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-3
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-4
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-5
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery thumbnail-6
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-1
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-2

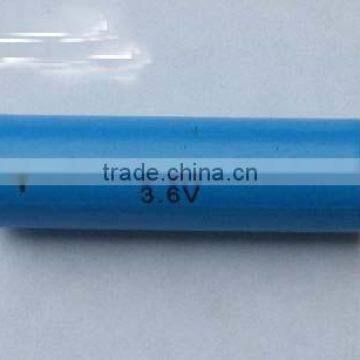

3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-3
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-4
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-5
3.6V 2400mAh ER14505H AA Lithium Battery Non-rechargeable Battery photo-6
US$ 1 - 1.5 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
neutral
Model Number:
ER14505
Contact Supplier Request Quote Chat Now
East (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name neutral
Model Number ER14505
Battery Type LiSO2
Nominal Voltage Other, 3.6V, 3.6v
Size Other, 14*50.5mm
Nominal Capacity 2700mAh

ER14505 AA 3.6V LiSOCL2 primary lithium thionyl chloride battery

Electrical characteristics

  • Nominal capacity 2.4Ah ( 2400 mAh)@ 1.0mA +20'C 2.0V cut-off.
    • Capacity may vary based on test condition of current drain, temperature, cutt off voltage
  • Open circuit voltage (at +20C +68F) 3.66V
  • Nominal voltage (at 1mA +20C +68F) 3.6V
  • Pulse capability: Typically up to 200 mA
  • Max. Continuous current: 100mA Max
  • Pulse current: 200mA
  • Storage (recommended) +30C +86 F max
  • Operating temperature range -55C / +85C
  •  lithium-thionyl chloride (Li-SOCl2) technology
  • Diameter(max):  14.4mm (0.57")
  • Height (max):     49.65mm (1.95")
  • Typical weight:   19g (0.622oz)
  • Note: Please make sure you order the correct size of battery. ( The cell is little different from standard AA rechargeable cells
    • Standard AA rechargeable cell's dimension (Dia x H): 14.21(0.56")x50.4mm(1.98"),

Main applications:

  • Radio communication and other military applications
  • Alarms and security systems
  • Beacons and emergency location transmitters
  • GPS
  • Metering systems
  • Sonobuoys
  • LED lighting applications
  • Others.



Model   Rated voltage Nominal Capacity Working Current(mA) Dimensions(mm) Weight(g)
(V) (mAh) Standard current Continues Current Pluse Current Diameter*Height
High Capacity
ER10280   3.6V 450mAh 1mA 10mA 30mA 10.5mm*28mm 4g
ER13150   3.6V 450mAh 1mA 10mA 30mA 13.5mm*15.5mm 6g
ER10450 AAA 3.6V 750mAh 1mA 25mA 60mA 10.4mm*45.3mm 9g
ER14250 1/2AA 3.6V 1200mAh 1mA 20mA 45mA 14.5mm*25.2mm 10g
ER14335 2/3AA 3.6V 1600mAh 1mA 75mA 150mA 14.5mm*33.5mm 12g
ER14505 AA 3.6V 2400mAh 2mA 100mA 200mA 14.5mm*50.5mm 19g
ER17335 2/3A 3.6V 2000mAh 1mA 100mA 200mA 17.0mm*33.5mm 18g
ER17505 A 3.6V 3500mAh 2mA 120mA 200mA 17.0mm*50.5mm 24g
ER18505 A 3.6V 3800mAh 3mA 120mA 200mA 18.5mm*50.5mm 28g
ER26500 C 3.6V 8500mAh 4mA 130mA 300mA 26.2mm*50mm 52g
ER34615 D 3.6V 19000mAh 5mA 200mA 400mA 32.9mm*61.5mm 100g
ER341245 DD 3.6V 35000mAh 10mA 400mA 500mA 32.9mm*124.5mm 195g
ER9V   9.0V 1200mAh 1.5mA 40mA 100mA 17.0*26.0*50 31g

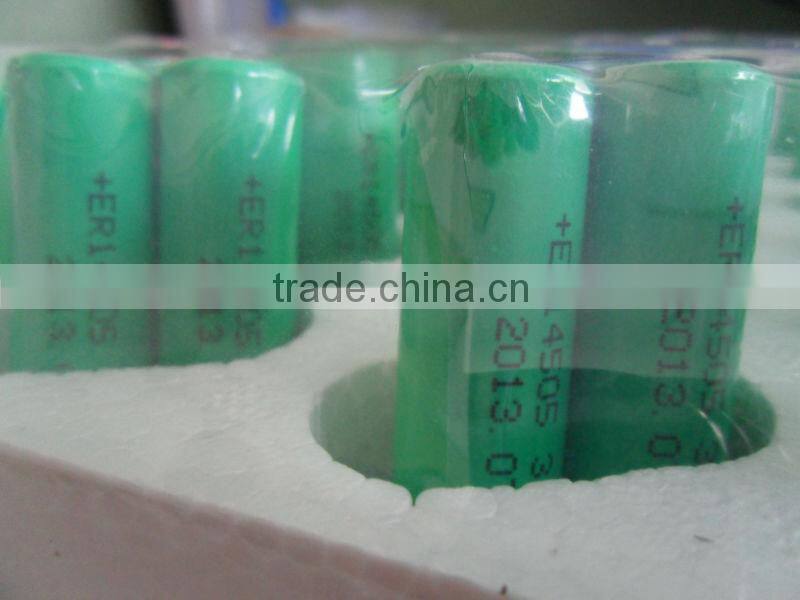

 3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery

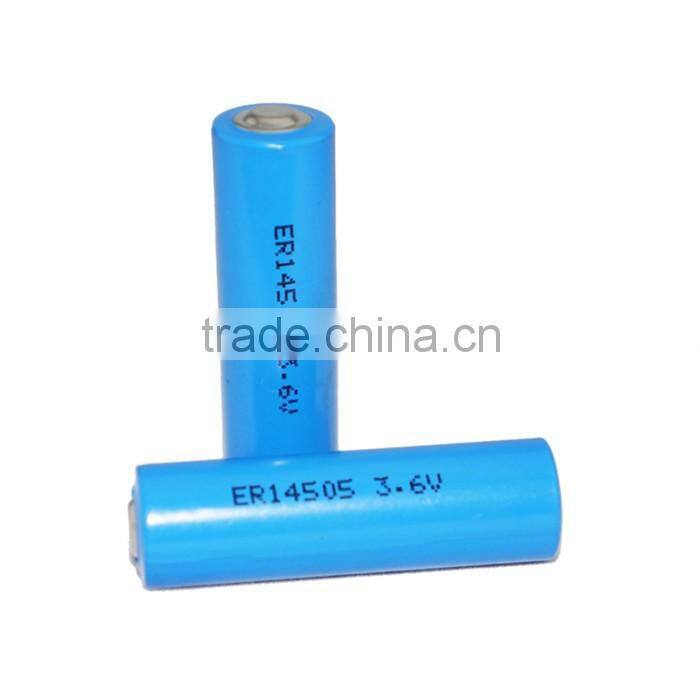

3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery

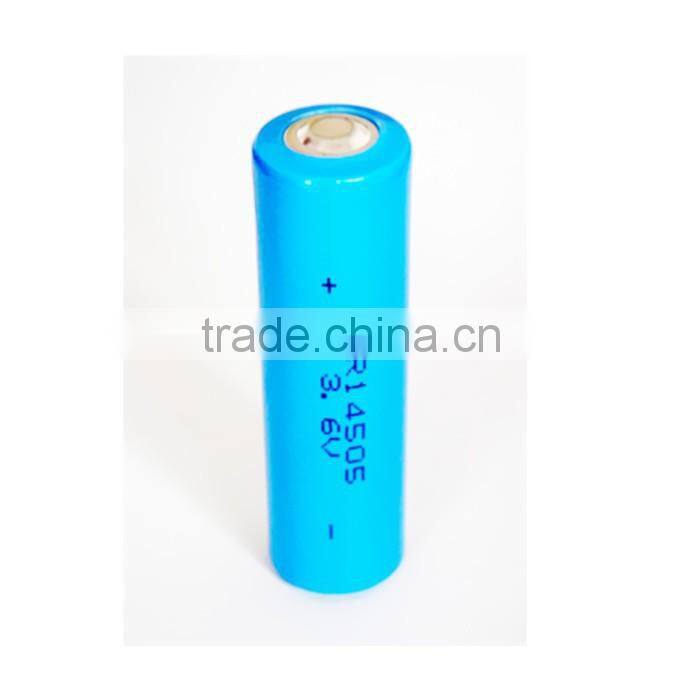

3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery

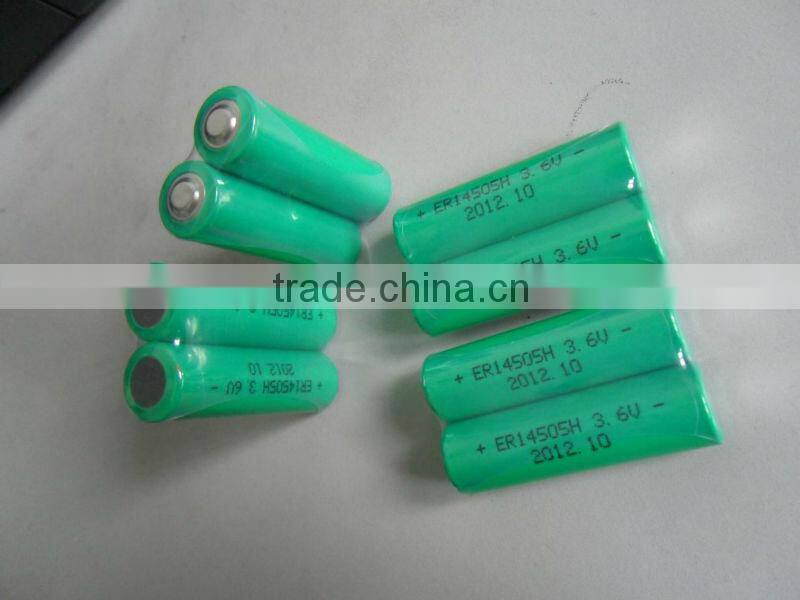

3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery

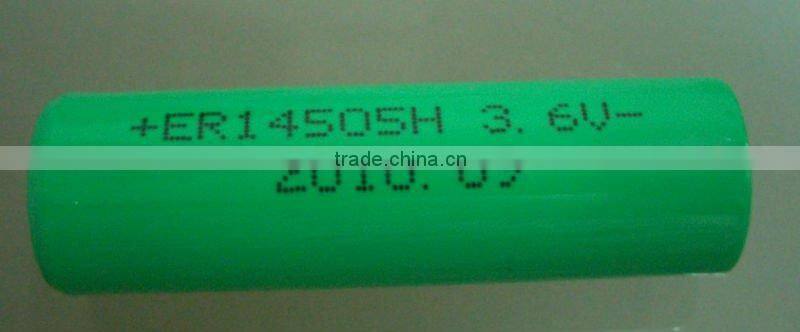

3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery





3.6V 2400mAh ER14505H AA lithium battery non-rechargeable battery
