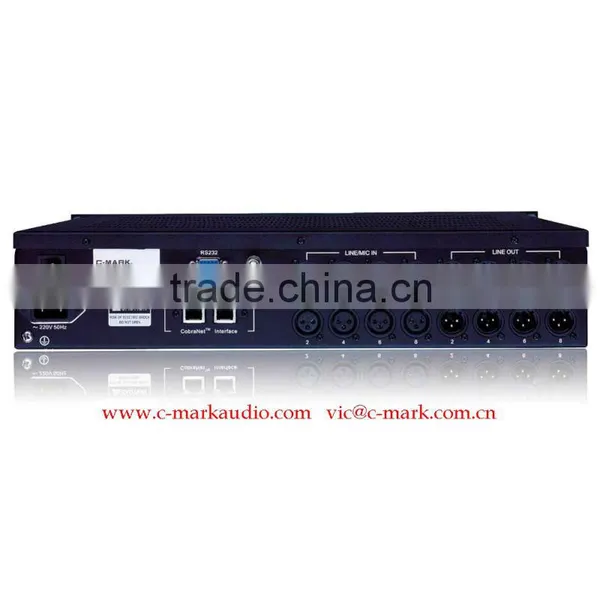

Help CenterC-MARK DRC Network Audio Transmitter/Receiver
Related Products
-
C-MARK DRD28A Audio ProcessorUS$ 1 - 3,000MOQ: 1 Piece -
C-MARK U88 Network Audio Transmission ProcessorUS$ 1 - 3,000MOQ: 1 Piece
-
C-MARK DRB1 Network Audio ProcessorUS$ 1 - 3,000MOQ: 1 Piece
-
C-MARK DRB-8A Network Audio ProcessorUS$ 1 - 3,000MOQ: 1 Piece
-
C-MARK DRB-206A Network Audio ProcessorUS$ 1 - 3,000MOQ: 1 Piece
Specifications
CobraNet Ethernet networkReal time audio transmission
16 channels,independently
Easy installation
Flexible configuration
FEATURES
Audio transmission in real time on CobraNet Ethernet network
Flexible configuration
Maximum 16 channels balanced analog inputs
Maximum 16 channels symmetrical analog outputs
Independent MCU control, independently running without computers
Every received channel can be controlled independently
All DRC setup parameters can be stored in flash memory
Firmware is updateable via the RS-232 port
Redundant network connection
Selectable backup power design (global mains voltage)
Easy installation
Stabilization and reliability
SPECIFICATIONS
1 Analog Audio Input Specification
1). 2, 4, 6, 8, 10, 12, 14, 16 channels input configurable
2). analog input converted to 20-bit,48-kHz digital audio
3). Frequency Response: +/-0.2dB, 20 Hz–20 kHz
4). THD plus Noise: <0.005% @ +4 dbu
5). Dynamic Range: 103 dBA
6). Input Gain Adjustment:0dB to 66dB
7). Maximum Input Level: +21 dBu, balanced
8). Input impedance: 20 kΩ
2 Analog Audio Output Specification
1). 2, 4, 6, 8, 10, 12, 14, 16 channels output configurable
2). 20-bit, 48-kHz digital audio converted to analog signal output
3). Frequency Response: ±0.2 dB, 20Hz~20kHz
4). THD plus Noise: <0.005% @ +4 dBu
5). Dynamic range: 103 dBA, 101 dB
6). Maximum output level: +21 dBu, differential
7). Output impedance: 100 Ω
3 Interface Specification
1). Two RJ45 network interface
2). One RS-232 interface (9-pin D-type)
4 Other Specification
1). Power Supply: 100-240 V AC, 50/60 Hz
2). Power Consumption: less than 30 W
3). Device Dimensions(L×W×H): 432 * 330 * 89 mm without rack mounts
4). Environment Temperature: +5-40°C
5). Environment Humidity: 5-85%
Difference Between DRC Network Audio Transmitters:
Model: Description
DRC 1600A: CobraNet Primary/Secondary Port, 16 CH analogue in
DRC 1204A: CobraNet Primary/Secondary Port, 12 CH in and 4 CH out(analogue)
DRC 0808A: CobraNet Primary/Secondary Port, 8 CH in and 8 CH out(analogue)
DRC 0412A: CobraNet Primary/Secondary Port, 4 CH in and 12 CH out(analogue)
DRC 0202A: CobraNet Primary/Secondary Port, 2 CH in and 2 CH out(analogue)
DRC 0016A: CobraNet Primary
