LED Outdoor Solar Powered Wireless Waterproof Motion Security Sensor wall Lights
LED Outdoor Solar Powered Wireless Waterproof Motion Security Sensor wall Lights

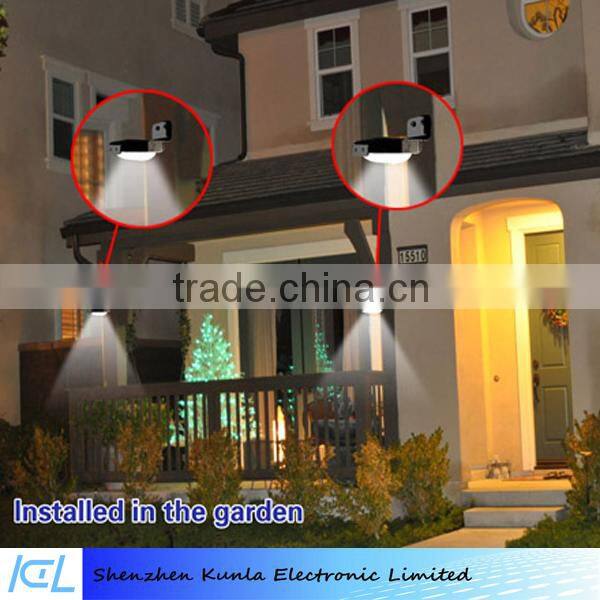

The solar motion sensor light is a kind of outdoor light that use specific light-control and infrared control system. The highly efficient solar panel will convert solar energy into electrical energy and store in the built-in battery for the LED. In the daytime, it will be charged automatically. And in the evening, it will auto turn on Dim light when no motion over there, and when people walk close, it will turn on bright light. In addition, the light is easy to install, waterproof and sunproof. This product is widely used in the place of roads, courtyards, shopwindows, etc.
Operation Instructions

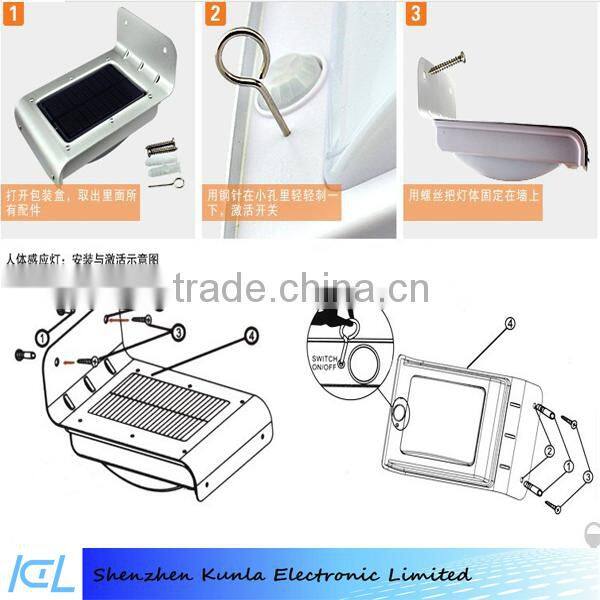

1. Unlock and activate the device
The internal battery is locked from factory for safety shipment, so users have to use supplied Key pin to click the “on/off” socket and unlock the battery and lighting system.
2. How to install the device?
Please use the supplied Expansion pillar-hinge and screws to mount the device on Pole or wall anywhere outside you want for lighting.
3. Charging via solar panel:
Please install the unit face south and make sure the solar panel can get the good sunlight directly without any shelter or glass.
4. Night sensor function
It will auto turn on Dim light when in darkness or at night, and auto turn off when in daytime or bright area.
5. Dim light mode
In order to save power, it will auto turn on Dim light when no Motion over there, but the brightness also can work as signal light.
6. Bright light mode
When people walk around 2 meters close, it will turn on bright light.
Electrical characteristics
1. solar panel: 0.55W, 17% efficiency
2. Li-ion battery: 3.7V 800mAh
3. Switch Pin: turn on/off the light by hand
4. LED: 16pcs, SMD 3528, 1W, 100Lumens
5. Light mode: Dark/Dim/Bright
Dim: weak lighting for saving power when no motion
Bright: motion activate for lighting when people walk near
6. Protect function: over charging, over discharging, over current, short circuit
7. Advantage for electronic:
a) Constant voltage 4.2V charging type
b) Input current limited
c) Output current limited
d) Backflow current proof for solar cell
e) High efficiency
f) Famous brand component: MURATA, PANASONIC, ST, TOSHIBA, ETC
8. Stainless Material: ABS+aluminum(sand blasting)
Product & Packing Information

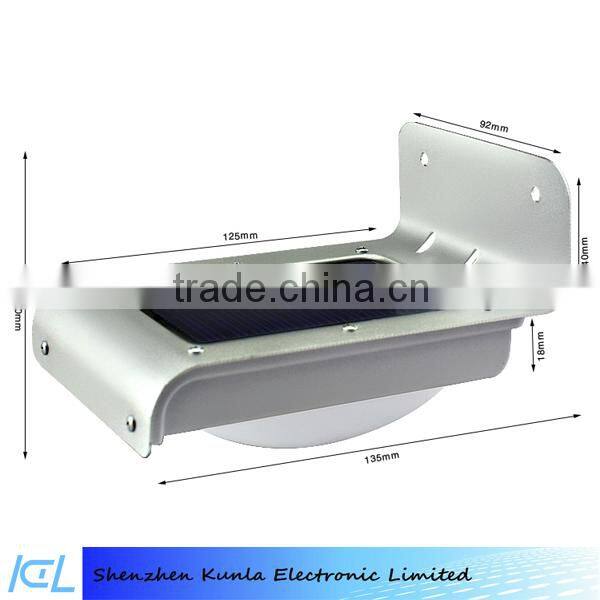

Product Size |
the solar panel is 85*55mm |
Unit In Inner Carton |
1 |
Dimension Of Inner Carton |
147*93*90mm |
N.W |
200g |
G.W |
220g |
Unit In Export Carton |
30 |
Dimension Of Export Carton |
50*30*20cm |
