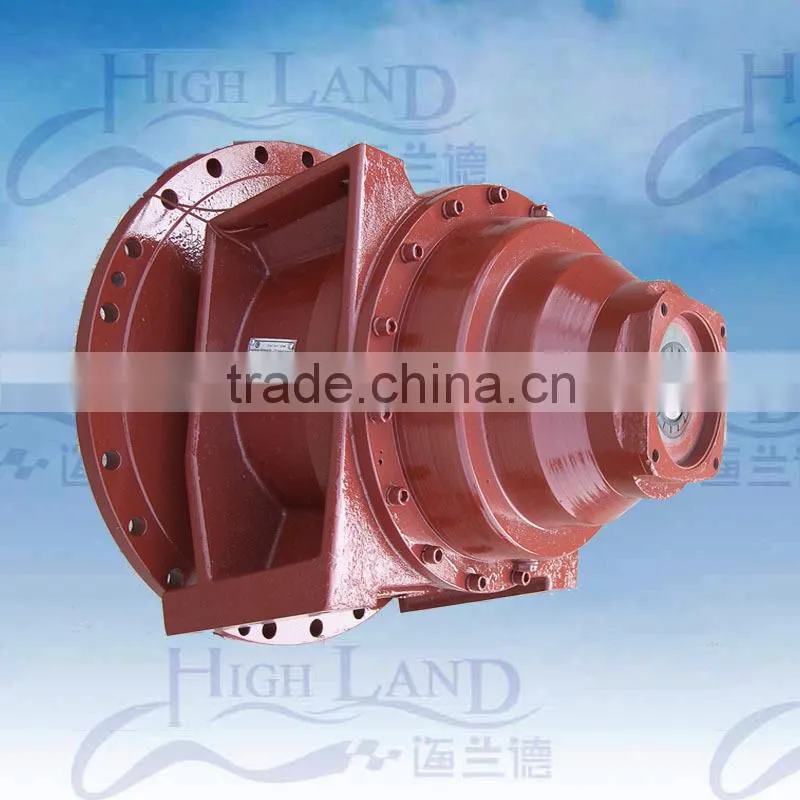

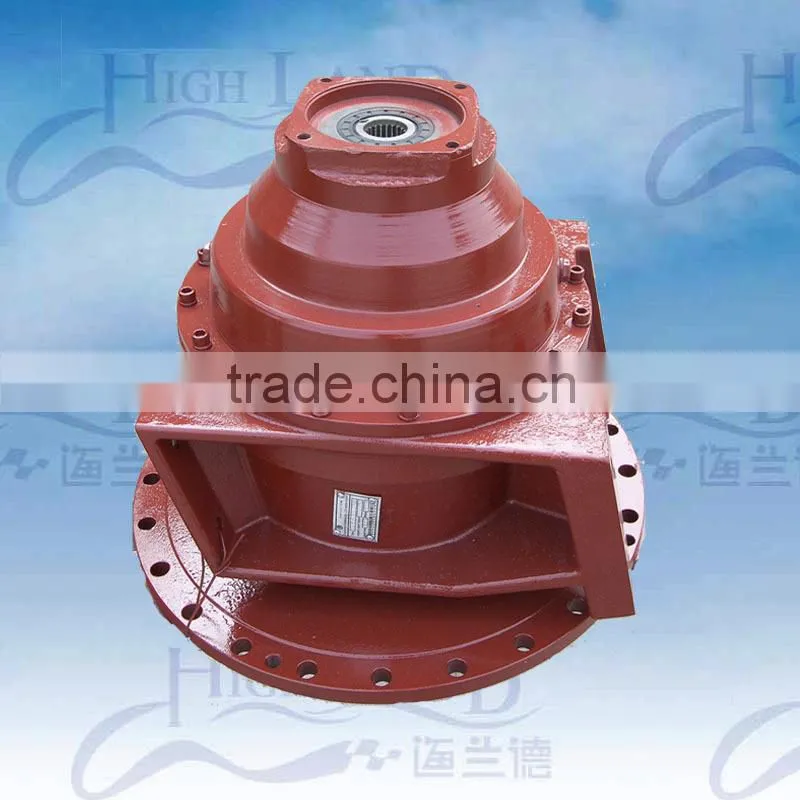

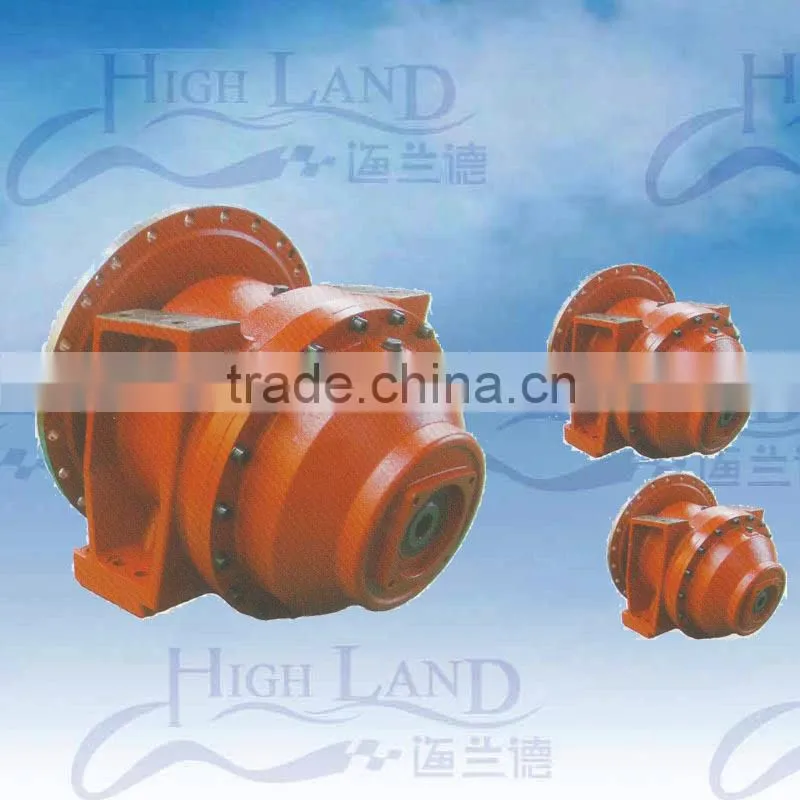

Concrete Mixers Hydraulic Gearbox For Concrete Trucks and Concrete Mixers

wooden case

Hydraulic Reducer

One . Features Overview :
Reducer models: Specifications HSG5 and HSG6 of two planetary gear ; specifications HSG7 of two planetary gears , spur gears first level
Direction of rotation: clockwise and counterclockwise
Purpose : drive rollers, support the weight of the moment and part of the drum
Two . Specific parameters :
Reducer Model : HSG5; HSG6; HSG7
Reduction ratio : 98.4 ; 111.8,121.7 ; 129.6
Efficiency reducer : 0.96 ; 0.96 ; 0.96
The maximum dynamic drum knife corner : ± 6 °; ± 6 °; ± 6 °
Reducer shaft slope : 15 °; 15 °; 15 °
Mounting angle of the drum : 8m ³ max14 °; 9-10m ³ max13.5 °; 12m ³ max12 °;
Weight (Kg): 233; 275; 304
Dose lubricants (L / min): 12; 16; 16
Types of lubricants : EP- gear lubricants
Note: No added EP gear oil additive will reduce the life of reducer 80%

Three . Technical parameters:
Maximum output torque (Nm): 51000; 61000; 71000
Allowable radial static load rollers (KN): 130; 180; 180
Intermittent radial roller allows dynamic load (KN): 265; 350; 350
Drum permissible axial static load (KN): 50; 65; 65
Intermittent drum permissible axial dynamic load (KN): 160; 230; 230
Performance output speed min-1 (rpm): 15; 14; 14
Maximum output speed min-1 (rpm): 18; 18; 18

Applications:

Concrete mixer truck gearbox

IDM reducer ( concrete tank dedicated )

IDM concrete mixer truck dedicated reducer world number more than 80,000 sets of marketing has become the preferred mixer manufacturers supporting

IDM reducer torque , low noise

IDM reducer gears and shafts used are immersed in an oil bath , continuous operation can have a maximum service life and minimum wear and tear

IDM reducer is a world famous and most experienced drive shaft and gear manufacturers produce

IDM reducer easy to install, simple to maintain , beautiful appearance

Products suitable conditions :

Good concrete trucks ( tank ) of the drive means , and an output terminal of the other requires a certain swing where

Adapt to conditions -30 °C -45 °C field work conditions

Input speed is less than 2500rpm

Output torque 15000-75000N.m, for 3m3 to 16 m3 of concrete mixer truck

You can forward and reverse operation , duty cycle is less than 40%
