hydraulic universal testing machine china
Portalbe and digital hydraulic universal testing machine china for hydraulic repair factory
MYHT portable hydraulic testing gauge,which is used for checking and surveying hydraulic system's ure and
temperature,is the initiation in china,and has gotten the country patent.
Portable hydraulic tester, hydraulic system that is able to reflect the performance of the main parameters (pressure, flow,
leakage, temperature and speed, etc.) for field testing without removal system piping instrumentation. Which is characterized by
rapid measurement of system pressure, flow, power and other key parameters, and thus can determine exactly which a
hydraulic component is faulty. Detection saves maintenance time and increases productivity.

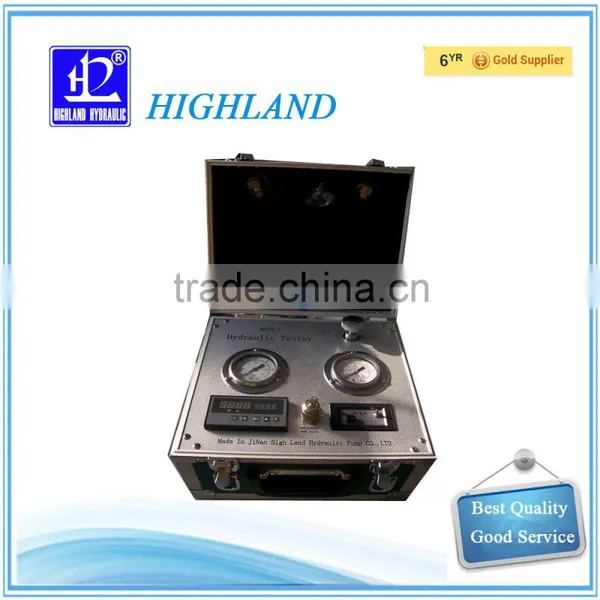

The MYHT digital potable hydraulic tester is an all-in-one unit designed to test the performance of hydraulic
pumps,motors,cylinder,valves and hydrostatic transmissions.
Features:
- Accurate measurement of flow ,pressure, peak pressure and temperature .
- Safe to use in both directions of flow. Internal oil by-pass protects muitimeter and operate against overpressure
- Bi-directional for unrestricted connection and simplified testing.
- Fast checks on pumps ,motors, valves ,cylinders ,hydrostatic transmissions.
- Easy to operate controls. Connect into the hydraulic system and simply ‘switch on”.
- Portable and lightweight with the case for easier viewing and cleaning.
- Rechargeable power: lithium battedes 12v.
Accessory:
- 1.5m rubber hose:2 pieces
- 1.5m testing pressure line:1 piece
- Tie-in:2 pieces
- Multipurpose flange:4 pieces
- Charger:1 piece
Technical Specification:
| Best price hot sell hydraulic pressure tester | ||||||
| Item No. | Max.Flow(L/MIN) | Precision | Max.Pressure(BAR) | Temperature(℃) | N.W.(KG) | Dimension(MM) |
| MYHT-1-2 | 200L/MIN | ±1% | 420 BAR | 150℃ | 6.1 | 530*320*260 |
| MYHT-1-4 | 400L/MIN | ±1% | 420 BAR | 150℃ | 8.8 | 530*320*260 |
| MYHT-1-5 | 500L/MIN | ±1% | 420 BAR | 150℃ | 10.2 | 530*320*260 |
| MYHT-1-7 | 700L/MIN | ±1% | 420 BAR | 150℃ | 15 | 580*440*500 |
Application Range:
MYHT series hydraulic oil pressure tester is used for checking and surveying hydraulic system(hydraulic pump, hydraulic motor, hydraulic valve, hydraulic cylinder)'s discharge, pressure and temperature, is the initiation in china,and has gotten the country patent.
Pictures:
