CM-1530 High Speed Automatic Wood Lathe

Specifications

CM-1530 High Speed Automatic Wood Lathe
1)Single Axis And Two Blades
2)A Spindle For Engraving

CM-1530 High Speed Automatic Wood Lathe



Use:

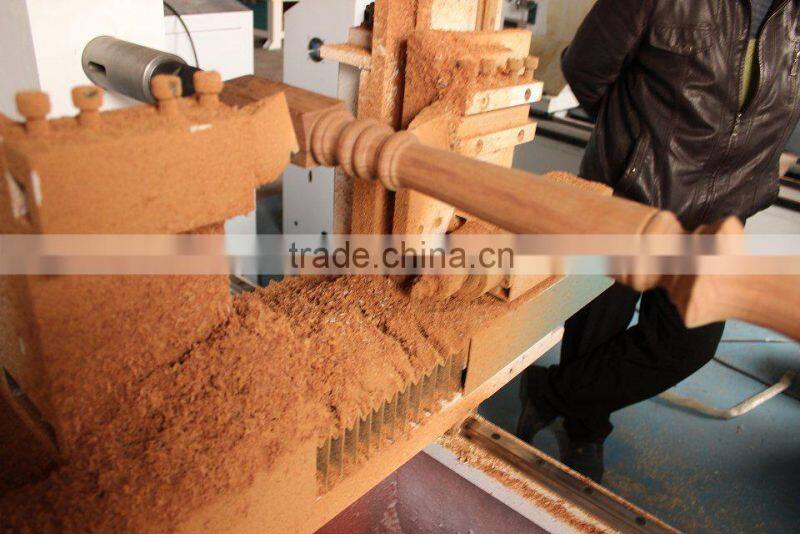

Wood lathe is a device that can create items such as stairway posts,designs on wood,and more. A CNC wood

lathe is operated by a computer which is controlled by the user. The use of computers on a lathe machine offers

a wide range of benefits and features,while improving functionality.Lathe machine is designed for cylindrical or

conoid workpieces,for example pillar,banister,chair legs,etc.All lathes work the same way.USB access device,

turning garland, a molding.



Application:

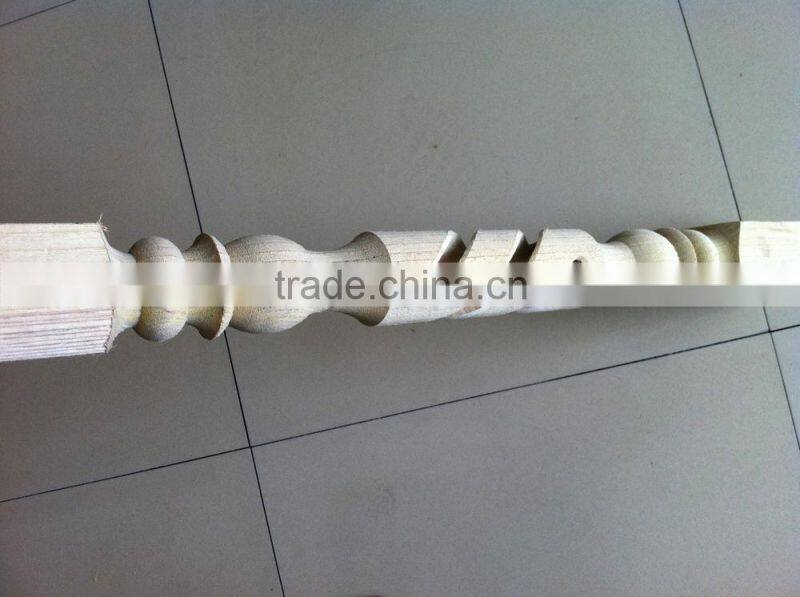

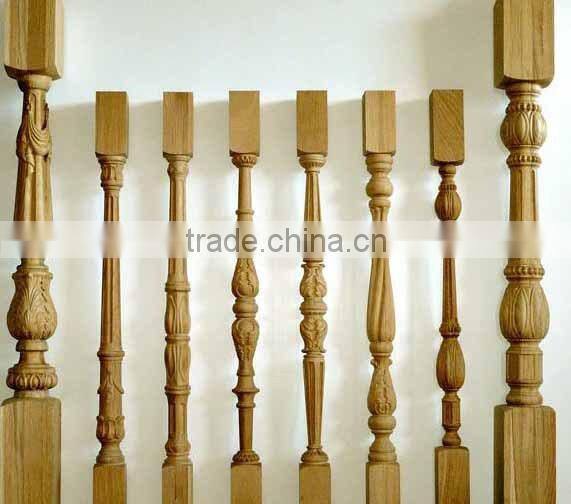

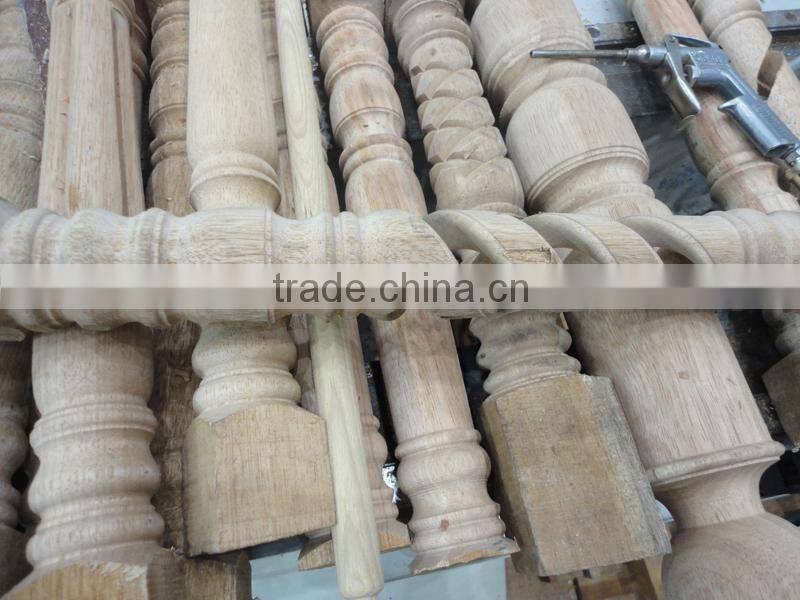

Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;

chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats and so on.



Features:

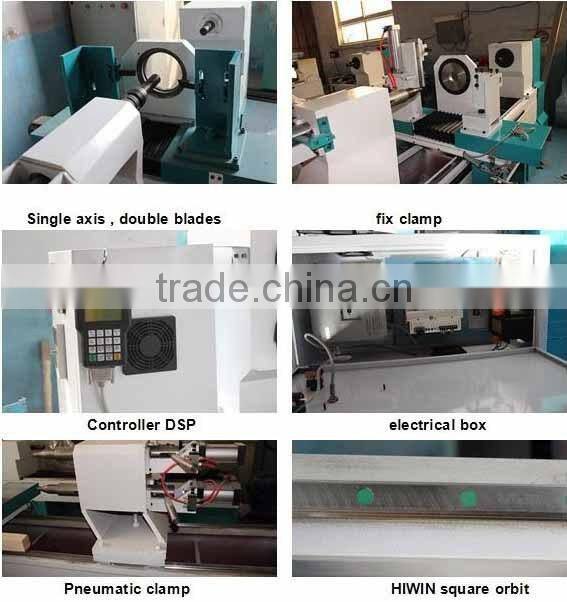

1)Single axis with two blades, the single axis can hold one square timber, one blade is for rough finish, one blade is for fine finish.The two blade increase working efficiency greatly.

2)Adjustable gymbal for engraving spindle, this equipment can make the engraving spineld engrave at any direction.

3)Drive mode: Y axis adopt rack and pinion transmission,X and Z axis adopt Taiwan TBI ballscrew transmission.

4)X,Y,Z axes all adopt Taiwan Hiwin linear square guide rails

Parameter:



Model	CM-1530
Turning length	200mm~1500mm
Turning diameter	20mm~300mm
Number of axis	single axis,two blades
Maximum feed rate	200cm/min
Minimum setting unit	0.01cm
Spindle motor power	4kw
Power supply	AC380v/50hZ
Overall dimensions	300*100*150cm
Spindle power	3.5kw air cooling spindle
Weight	1600kgs
