Specifications

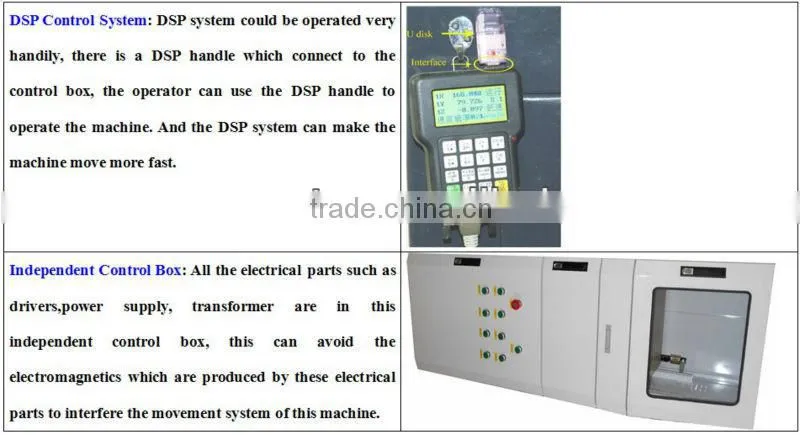

CM-1325 High Efficiency Stone CNC Router Machining Center1.DSP
2.Stainless Steel Water Tank
3. Hiwin Linear Square Guide

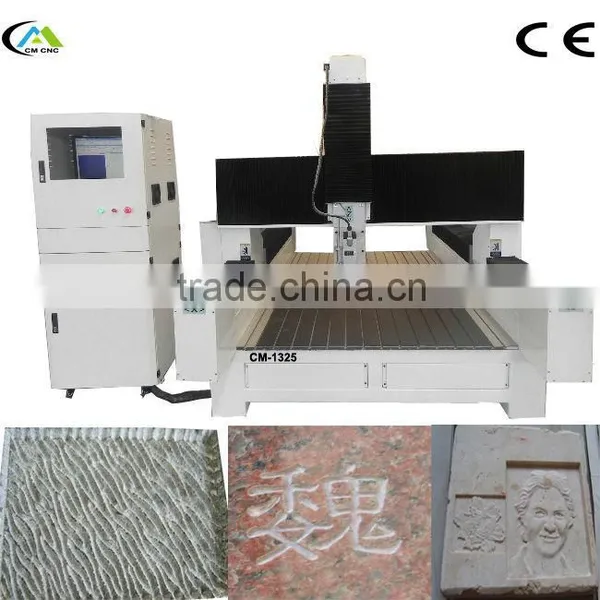

CM-1325 High Efficiency Stone CNC Router Machining Center
Technical Features:
1.Welded lathe bed of profile steel, stabilizing treated under high temperature.
2.The bed height is lower for put on the heavy stone easily.
3.Y axis with double motors to drive that ensure stable and precise performance.
4.This machine adopt high precision rack and pinion transmission and Hiwin linear square guide way ensure high accuracy,fast speed,heavy-duty with long service life.
5.Professional design and high quality machine parts provide this CNC router with low break down
rate.
6.Feeler block make the machine working more precisely.
7.T-slot worktable with clamps can hold the workpieces tightly.
8.Tank wall is stainless steel in case of being rusty while touch water.
9.3.0kw-8.0kw spindle is optional.
10.Rotary device for cylinder materials is optional.
Applicable Industries:
Tombstone,menument,grave stone,headstone, advertisement, home&outdoor products making,
mould industry, architectural decoration,etc.
Applicable Materials:
Marble,Granite,artificial stone, ceramic tile, terrazzo, limestone, sandstone, travertine, quartzite, slate, grindstone,jade,crystal, aluminum, copper,etc.
Description |
Parameter |
X,Y Working Area |
1300*2500mm |
Z Working Area |
300mm |
Resolution |
+0.01mm |
Lathe Structure |
Welded steel structure |
X,Y Structure |
Rack and pinion transmission |
Z Structure |
Germany rolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
25m/min |
Spindle |
4.5KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Fuling |
Working Voltage |
AC380V/50Hz |
Working Mode |
Stepper |
Driver |
Yako2811 |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
DSP with USB interface/Nc Studio |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Work-holding |
By Clam |
Water Tank |
Yes |
Net Weight |
2000KGS |
Gross Weight |
2100KGS |
Samples:
Package:
