Specifications
CM-2090 High Accuracy Multi Head CNC Router With Rotary1.Six PCS Spindles
2.4th DSP System
3.Six PCS Rotary

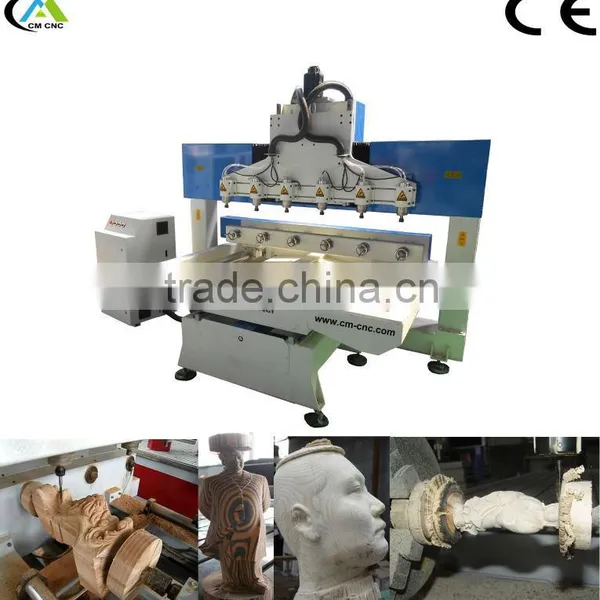

CM-2090 High Accuracy Multi Head CNC Router With Rotary

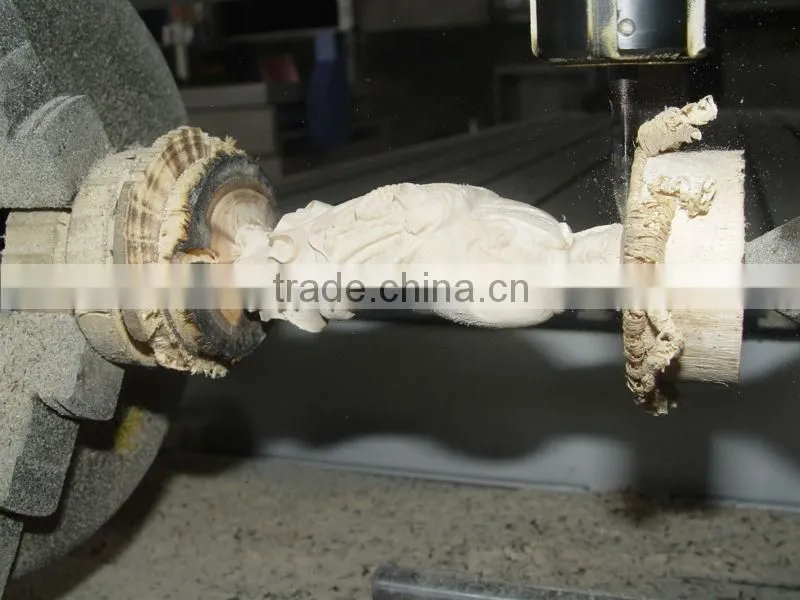

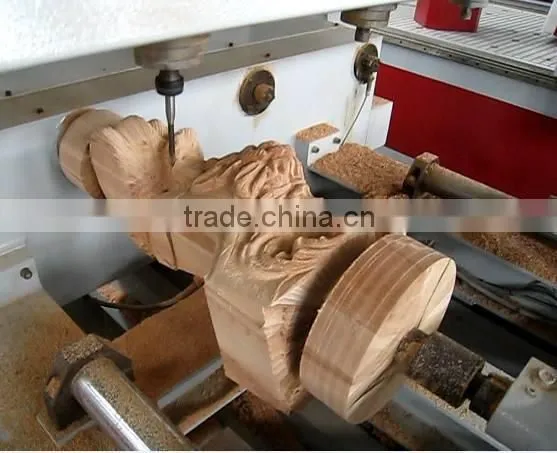

1.Six pcs rotary device, six pcs spindles,
2.X,Y,Z axes all adopt Taiwan TBI ballscrew transmission, so this machine can engrave rotary with high accuracy.
3. 4th axis DSP control system, this system can make X,Y,Z and rotary axis work at the same time with high precision.
4.To gurantee the equal press loading, The guideways adopt Taiwan Hiwin Linear Square Guide Rails, with four row steel balls and self-lubrication slideways.
5.Adopt the breakpoint memory.The machine will finish the works under the unsure objective factors.
6.Gantry moving, The whole bed adopt durable welded steel, and could work for long time without distortio
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal
materials and light metal materials
Description |
Parameter |
Rotary Size |
Diameter: 200mm,Length: 900mm |
Z Working Area |
200mm |
Resolution |
+0.05mm |
Lathe Structure |
Welded steel structure |
X,Y,Z Structure |
Taiwan TBI Ballscrew Transmission And Hiwin Linear Square Guide Rails |
Max. Idling Speed |
10m/min |
Spindle |
2.2KWX6 |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Fuling |
Working Voltage |
AC380V/50Hz,Three Phase |
Working Mode |
Japan Yaskawa Servo Motor |
Driver |
Yaskawa |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
4th DSP with USB interface |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Work-holding |
T-slot |
Net Weight |
2000KGS |
Gross Weight |
2100KGS |
