Specifications
CM-1212 Multiple Spindles CNC Router1.Multple Spindles
2.Rack And Pinion Transmission
3.Sunfar Inverter
4.Nc Studio

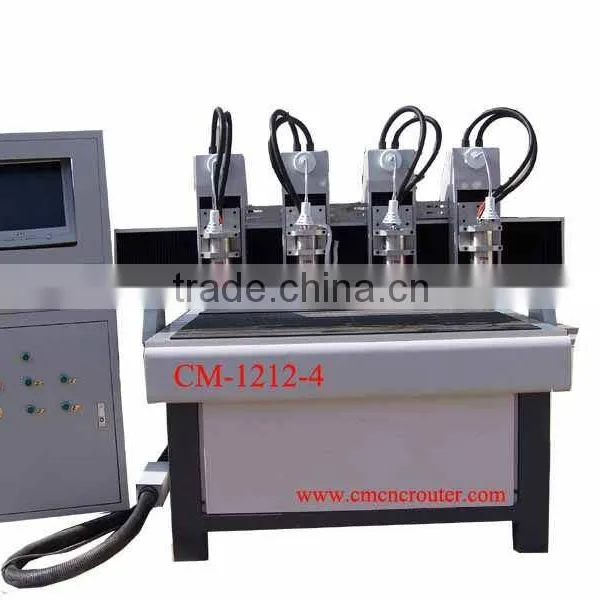

CM-1212 Multiple Spindles CNC Router
1.Multi spindles could work seperatly and else work synchronously. So Multi-spindles CNC routers could improve the working efficiency much than the machines with single spindle.
2. Rack and pinion transmisssion for X and Y axis, it can make the machine work at a very high speed.
3.The ball screw rods are of super precision with the pre-tight and anti-gaps functions . So the blade could pinpoint spot very correctly before working on materials.
4.To gurantee the equal press loading, The guideways adopt Square rails, with four row steel balls and self-lubrication slideways.
5.Adopt the breakpoint memory.The machine will finish the works under the unsure objective factors.
6.Gantry moving, The whole bed adopt durable welded steel, and could work for long time without distortio
Applicable industries:

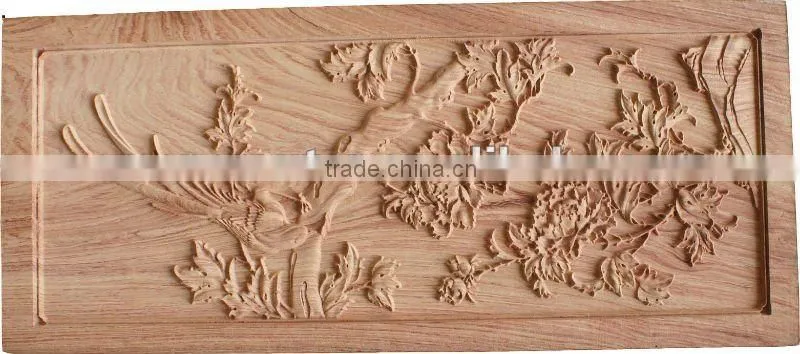

Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.

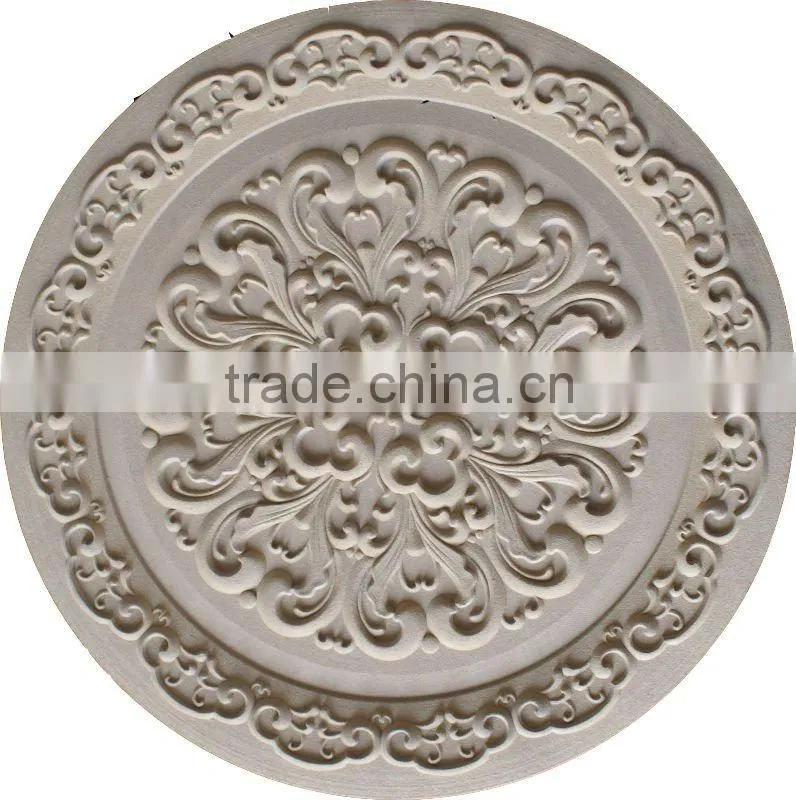

Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal
materials and light metal materials
Description |
Parameter |
X,Y Working Area |
1200*1200mm |
Z Working Area |
140mm |
Resolution |
+0.01mm |
Lathe Structure |
Welded steel structure |
X,Y Structure |
Rack And Pinion transmission |
Z Structure |
Germany rolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
35m/min |
Spindle |
1.5KW |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Inverter |
Sunfar |
Working Voltage |
AC380V/50Hz |
Working Mode |
Stepper |
Driver |
YAKO |
Command |
G code,HPGL,U00,mmg,plt |
Operating System |
DSP with USB interface/Weihong |
Diameter of cutter |
φ3.175-φ12.7mm |
Cooling Mode |
Water-cooling |
Work-holding |
By suction or Clamp |
Net Weight |
720KG |
Gross Weight |
770KG |
