Specifications
CM-4040 Hot Sale Mini Hobby CNC Router1.DSP System
2.Hiwin Linear Square Guide Way
3.Ballscrew
4.Cast-iron Structure
CM-4040 Hot Sale Mini Hobby CNC Router
Standard features:
- Whole machine is cast-iron
- The machine adopts gantry movement, it can process any kinds of materials freely.
- Three axes adopt Taiwan Hiwin high precision square guide rails; X ,Y, Z axis adopts Germany-made ball screw,with high precision and longevity.
- Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
- Has the function of re-carving after break point and power failure.
- Has the function of forecasting process time.

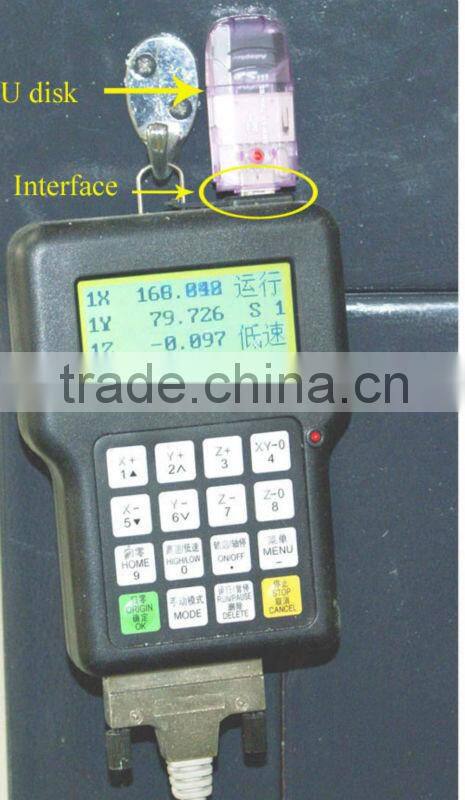

- Adopting advanced DSP Control system
- Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Applicable Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable Materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Description | Parameter |
X,Y Working Area | 400*400mm |
Z Working Area | 70mm |
Resolution | 0.05mm |
Lathe Structure | Cast-iron |
X,Y Structure | Ballscrew transmission |
Z Structure | Germanyrolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Fuling |
Working Voltage | AC220V/50Hz,Single Phase |
Working Mode | Sub-division Stepper Motor |
Driver | Leadshine 542 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Work-holding | By Clamp |
Net Weight | 100KG |
Gross Weight | 150KG |
