The LED Downlight series products is formed by lower power LEDs and quality Alumnium Alloy,the light design has combined the more flexible installation and high CRI.
To acheive high heat dissipation transmittance,we quality bonding LED chips base.
COB LED is a new form,further lighting and more higher lumen are its great features.

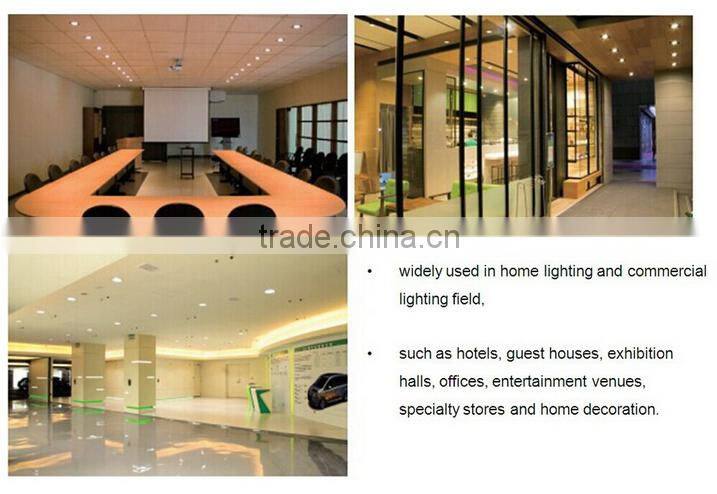

It has the advantages in energy-saving,environment conservative,long serice life,suitable for commercial decoration,inhouse decoration etc,.
BASIC PARAMETERS | |||
| Brand Name: | Real Green | Item No.: | RG-COBAA002 |
| Power: | 20W | LED Type: | COB Lighting |
| Emitting Color: | Warm White /Cool White | Material: | AluminumAlloy+PC |
| Shape Size: | ø200*H90mm | Beam Angel(°): | 120° |
| Cutout: | ø180mm | IP Rating: | IP44 |
| Lumen : | 1350 LM | Lifespan: | ≥ 50,000 Hr |
| SDCM Range: | <7.5 | Color Temp.: | 3000K-6500K |
ELECTRICAL PARAMETERS | |||
| Input Voltage(V): | AC100V-265V | Working Temperature(℃): | -30 ℃- 70 ℃ |
| Power Factor(PF): | ≥0.97 | Driver: | Constant Current Driver |
| Color Rendering Index(CRI): | >85 | Warranty: | 2 Years |
| PACKING PARAMETERS | |||
| Packing Size(Carton): | 180*190*80mm |
|
|
| Weight: | 180mm | ||
| Heigth: | 190mm | ||
| Depth: | 80mm | ||

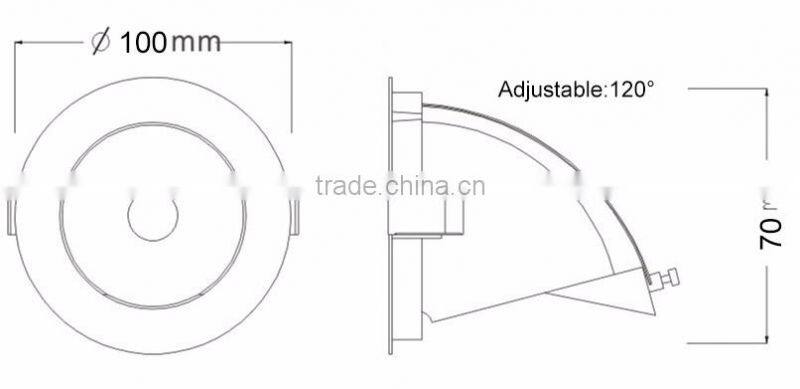

ADJUSTABLE:120 Degree
Aluminum Alloy Lamp Body Quality Down Light features:
v Long lifespan
v High efficiency LED constant current driver
v Uniform lighting
v Quick start
v No stroboscopic effect, no glare
v High heat-sink efficiency: scientific design to help heat sink
v No mercury or lead; environmental protection
v Save 60% energy than traditional light
v CE, EMC and RoHS certified
More special details why you choose our products!

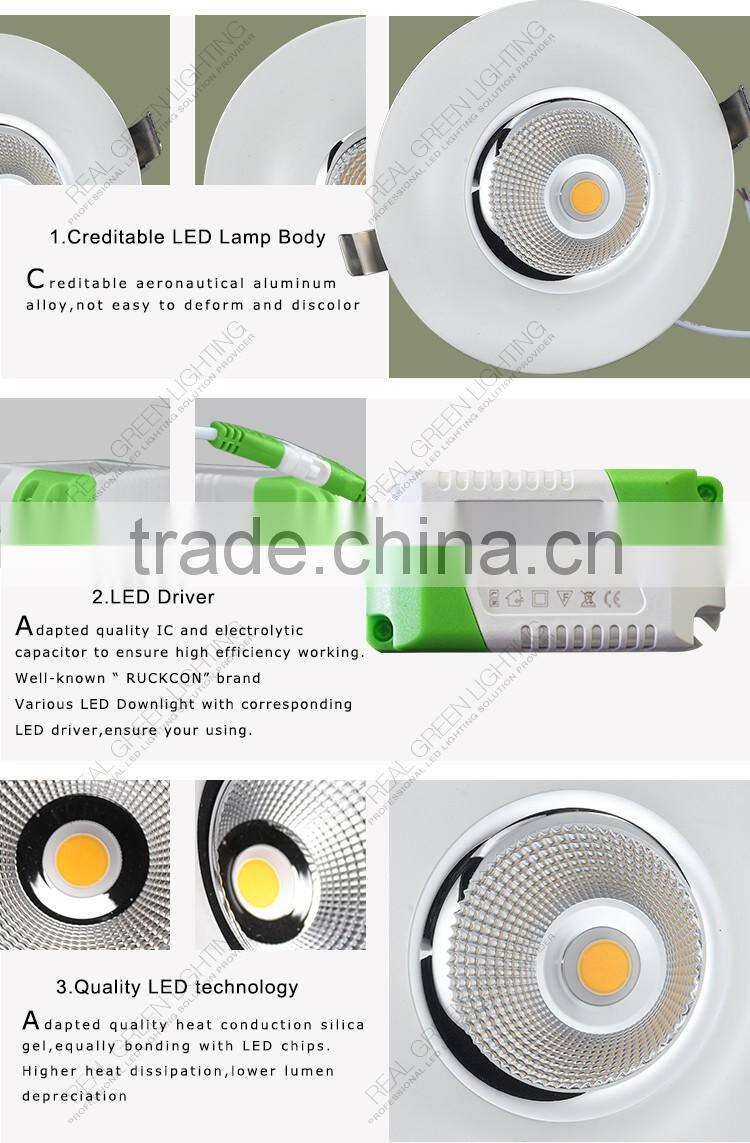

- Led chip: High lumen chip-on-board chips in high CRI for lighting performance and have 120 ° beam angle for lighting.
- Lifespan: led flood light has 50000 hours lifespan for using.
- Led Power Supply: Constant current CE listed series power supply will protect LED chip in correct current and voltage. It provide power factor >0.96 and power efficient > 86% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
- Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
- Glass Cover: It guarantees 100% light transmittance and uniform light distribution.
Notices:
1. Open the packaging, check the products carefully, and take them gently.

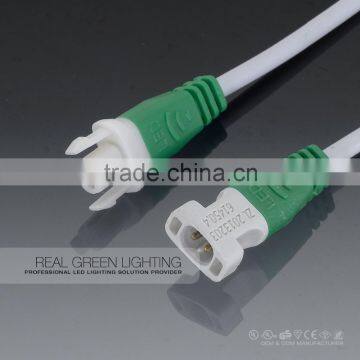

2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
3. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
4. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.
Acutions: All of this install instruction is for conference, please install the down light in professional instruction.
Electrial and Photmetric Test Report For Light Source (5w cool white)
Test Condition:
Analysis Instrument: STARSPEC SSP33112-D
Test Lab:Test Lab
Temprature: 25.0 ℃
R.H: 60.0%
TESTING RESULT
|
Photometric Parameters Luminous Flex: 392.57 lm Luminous Efficiency: 68.87 lm/W |

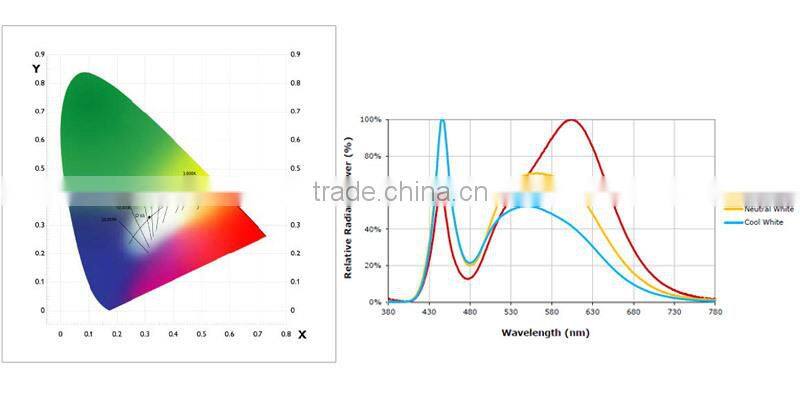

Colorimetric Parameters Chromaticity Coordinates: X=0.3203 Y=0.3289 Color Temp.:6105K Dominant Wavelength: 487.28 nm Color Tolerance: 11.05 SDCM |
|
Electrical Paraments Voltage : 219.40 V Wattage: 5.70W |
Electrical Paraments CURRENT:0.006A Power Factor: 0.427 |
Shipping Details:
Fedex/UPS/DHL/EMS we accept.
The shipping charge according to the weight of products.
The packing of LED Light included foam and plastic bag, ensure without damage in the shipping.
The pattern of packing can be customized.
5-10 days will be sent to the destination
With strong carton packing,and also customized.
Packing size: 100*100*70 mm
-
Trade Terms:
1. Payment: By T/T, 30% before production, 70% before delivering (Western Union or Paypal also welcome)
2.Pls contact us promptly if there is something problem with payment.3 Shipping freight is quoted on your request.
4 Shipping port: JIANGMEN / GUANGZHOU / SHENZHEN, Mainland China.
5 Discounts are offered based on order quantities.
Services:
1. Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to help you locate the products in your best interest.
3. OEM & ODM production available.
4. 2 years warranty.
Feedback:
Your satisfaction and positive feedback is very important to us.
lease leave positive feedback if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.
We will do our best to solve any problems and provide you with the best customer services.
Markets
Our main markets are Europe, USA, Australia and Japan, products are UL, BS, GS, SAA, UL, CUL, JET approved. Our goal is to build strong and reliable business relationship with business partners, to provide the best benefit to customers.
QC and R&D
We have our own R&D and design Department of 20 colleagues. We do OEM and ODM for customers around the world. Quality control is always strict, becasue quality is life of a factory. We accept the third party inspection to our products, like SGS, CSA.
Professional Shipping Service
We have good cooperation with shipping companies, customers don't have to be worried about their shipments. Our shipping department team is professional, able to handle all kinds of shipping documents, customs clearance. One-stop service is available through the whole year.
Real Green Lighting Company Limited
Address: No. 1, Mayi Industrial Zone, Jianghai District, Jiangmen City, Guangdong Province, China, 529000
TEL: 0086-750-3718761 / FAX: 0086-750-3718761
Skype: cecifeng62
Email:ceci@realgreenled.com
Website:
Q: Are you manufacturer?
Yes, our factory has been set up for many years. Sincerely welcome you to visit us in Guangdong Province, China.
Q. Can the led downlight dimmable?
Our led downlight can not dimmable,but we can find a solution for you if you need.
Q:What is CRI?
CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED down light, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.
Q:How to controll your quality?
Each products will do 48 hours Aging Test before shipment.
Q: How long will i get the goods after ordered?
Total about 18-23 days.About 5-15 days after payment and the shipping is about 3-5 days.
