1, APPLICATION
HGY5311TFC intelligent Fiber slurry paver is is mainly applied to treat the pavement diseases like friction resistance reduction, cracks and ruts for improving its performances of anti-slide and waterproofing, evenness and travelling comfort. This equipment can be widely used in construction of slurry seal, modified slurry seal, micro surfacing and fiber micro-surfacing.
2, MAIN TECHNICAL PARAMETERS
Product Model: |
HGY5311TFC |
Chassis Model: |
ZZ1317M3867D1, HOWO Euro IV |
Engine Power: |
110kw / 2300rpm |
Aggregates Hopper Volume: |
12 m3 |
Emulsion Tank Volume: |
4 m3 |
Water Tank Volume: |
4 m3 |
Additive Tank Volume: |
600 L |
Filler Tank Volume: |
2×0.5 m3 |
Discharging Volume of Mixer: |
max.3.5T/min |
Fiber amount: |
max.3.5kg/min (fiber dose:1.3‰ for 3.5T/min volume) |
Minimum Vehicle Speed: |
1 km/h |
Width of Paver: |
2.5-4.3 m |
Overall Dimensions: |
11690×2496×3490 (mm) (L×W×H) |
3, Advantages of Road Sealing Machine
1, This paver is our patented product on the basis of the same kind products of home and abroad, with advantages of convenient operation, easy maintenance and effective cost.
2, Large power engine is applied to pave breaking modified asphalt of high viscosity.
3, Large storage hopper of 12m3 is equipped to improve working efficiency.
4, The maximum mixing volume of 3.5t/min fits for different width, depth and technologies of construction.
5, Fiber feeding unit of optimized design regulates fiber feeding amount accurately and uniformly, easy in operation.
6, The fluid storage tanks and pipelines are all made of stainless steel to prolong the service life of this equipment.
7, Key parts are all famous international brands so as to guarantee reliability and stability.
8, This equipment applies centralized control to the whole machine, with complete function of display and alarm, humanized design and easy operation.
9, The chassis is equipped with two speed gear box which realizes a perfect combination of travelling at high gear and construction at low gear.
10, Optimized paver offers strong guaranty to the construction quality and prolongs its service life.

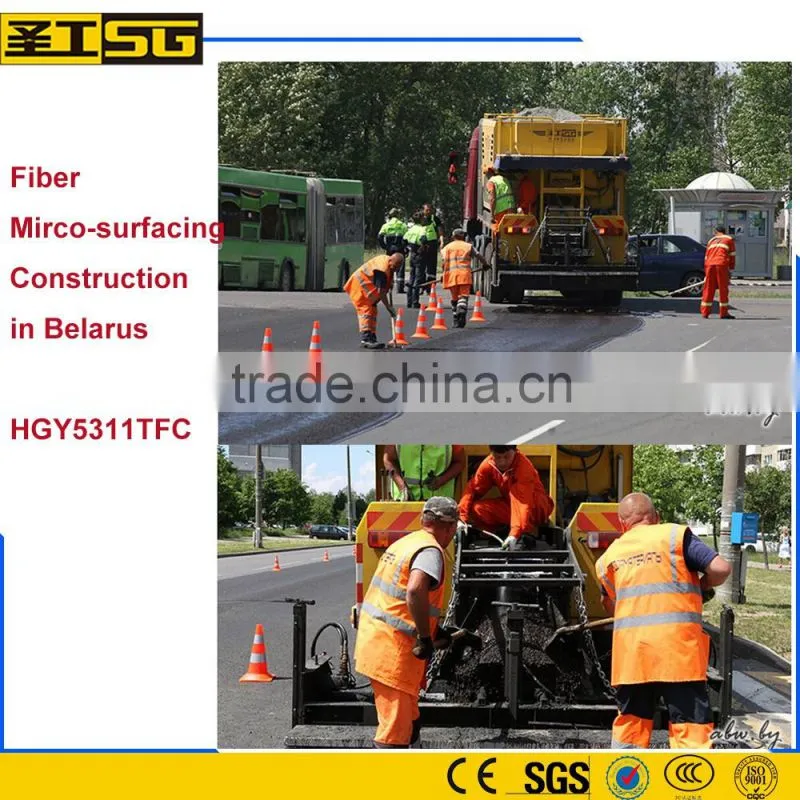

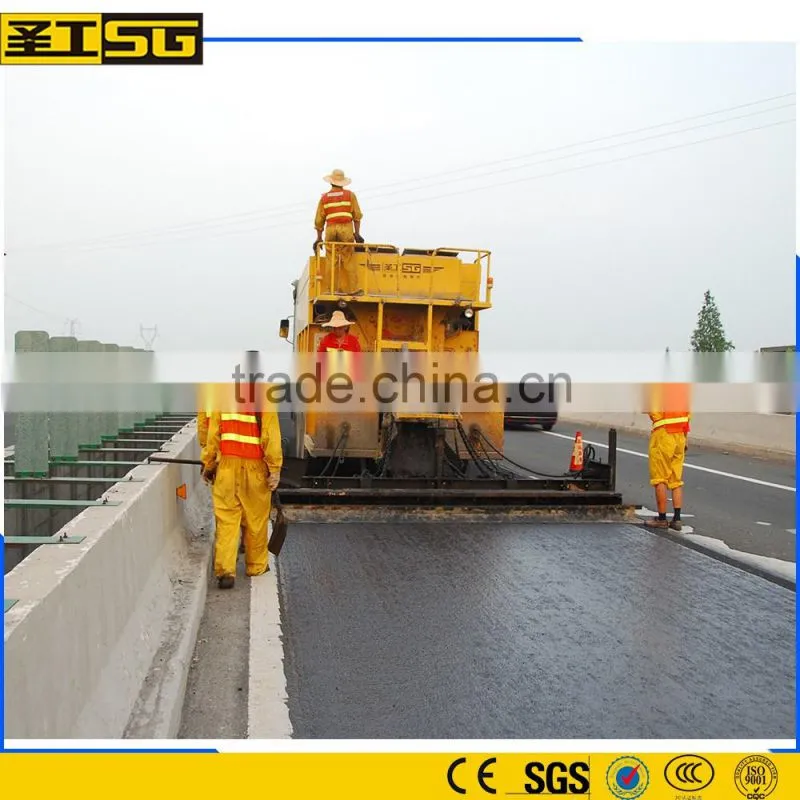

Construction case
Our Services
>> 24 hours online-service, welcome your inquiry and business visiting !
>> 12 Months warranty !
>> Free overseas technical training !
>> Skype: eva_hlcable
Henan Gaoyuan Road Maintenance Equipment Co.,Ltd (Gaoyuan SG), has been specializing the development and production of road maintenance machinery since its foundation in April, 2004.
There are 5 production workshops and 1 paint finishing workshop with more than 270 units of various kinds of production and inspection equipment.
As a National Hi and New Technology Enterprise Gaoyuan SG is widely recognized as one of the TOP 3 domestic suppliers of road maintenance equipment and vehicles which also has provincial technology research center with 23 invention patents among 108 practical patents and several research results which fills in the blanks for relative areas.
In 2012, we established China's first laboratory for road maintenance equipment.
NATIONAL HIGH-WAY MAINTENANCE EQUIPMENT ENGINEERING LAB
FACTORY & WORKSHOP
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
Generally it is 7-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What warranty coverage do I have?
Our machine has one-year warranty; We will provide free overseas technical training for exported products.
Q4: What is your term of payment?
A: 30% T/T in advance, balance before shipment, or 30% T/T in advance, 70% L/C at sight.
CERTIFICATE & PATENS
