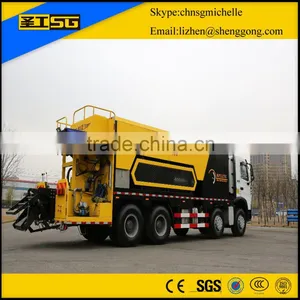

Hot sale slurry paver ,Fiber surfacing paver
Application
HGY5312TFC intelligent fiber slurry paver, improved is mainly applied to treat the pavement diseases like friction resistance reduction, cracks and ruts for improving its performances of antislide and waterproofing, evenness and travelling comfort. This equipment can be widely used in construction of slurry seal, modified slurry seal, micro surfacing and fiber micro-surfacing.
This equipment is a new type of independent patented product for road maintenance at international advanced level on the basis of foreign advanced technologies. This product is tested and optimized in constructions for many years, which is the ideal machinery for slurry seal, micro-surfacing and fiber micro surfacing constructions.
Main Technical Parameters
Product Model: |
HGY5312TFC |
Engine: |
Cummins 6BT5.9, 110kw / 2300rpm |
Aggregates Hopper Volume: |
12 m3 |
Emulsion Tank Volume: |
3.8 m3 |
Water Tank Volume: |
3.8 m3 |
Additive Tank Volume: |
400 L |
Filler Tank Volume: |
2×0.5 m3 |
Fiber Tank Volume: |
0.2 m3 (6 fiber rolls with diameter of 280mm) |
Discharging Volume of Mixer: |
max.3.5T/min |
Overall Dimensions: |
11920×2496×3460 (mm) (L×W×H) |
Advantages
- This paver is our patented product on the basis of the same kind products of home and abroad, with advantages of convenient operation, easy maintenance and effective cost.
- Large power engine is applied to pave breaking modified asphalt of high viscosity.
- New hopper structure and stilling cone layout could convey the aggregate smoothly.
- New chain belt conveyor avoids skidding to make the aggregates conveying smoothly and accurately.
- New mixer is driven by double motors with strong power. Front bearing is removed to make the structure more practical.
- HOWO MAN T7H deluxe chassis with 2-speed gearbox could meet the demands of both transportation at high speed and construction at low speed. The truck speed could be controlled by the operator in construction.
- PLC is replaced by industrial controller. The new controller can drive the hydraulic proportional valve directly and detect the faults by itself to decrease the system faults and improve its stability.
- This equipment applies centralized control to the whole machine, with complete function of display and alarm, humanized design and easy operation.
- Large storage hopper of 12m3 is equipped to improve working efficiency.
- The maximum mixing volume of 3.5t/min fits for different width, depth and technologies of construction.
- Fiber feeding unit of optimized design regulates fiber feeding amount accurately and uniformly, easy in operation.
- Key parts are all famous international brands so as to guarantee reliability and stability.
- The paver is elegant in appearance and practical in structure.
Workshop
Products
Projects and Certificates
With the efforts of our excellent and unceasing technical R&D team, we obtain 108 national
patents and 12 TOP products of China, 3 TOP products of the world. Our machine also support
the outstanding projects like the most famous street of China Chang An Avenue major repair
forthe 60th anniversary of the founding of PRC, 2010 Shanghai World Expo Park, Motorway of Shanghai Pudong International Airport, airstrip of Shanghai Hongqiao International Airport,
Motorway of Guangzhou Baiyun International Airport for 2010 Asian Games, etc.
We obsess professional and experienced technical service personnel,provide the users with low-cost and high-quality products and rapid-response services after sales.
