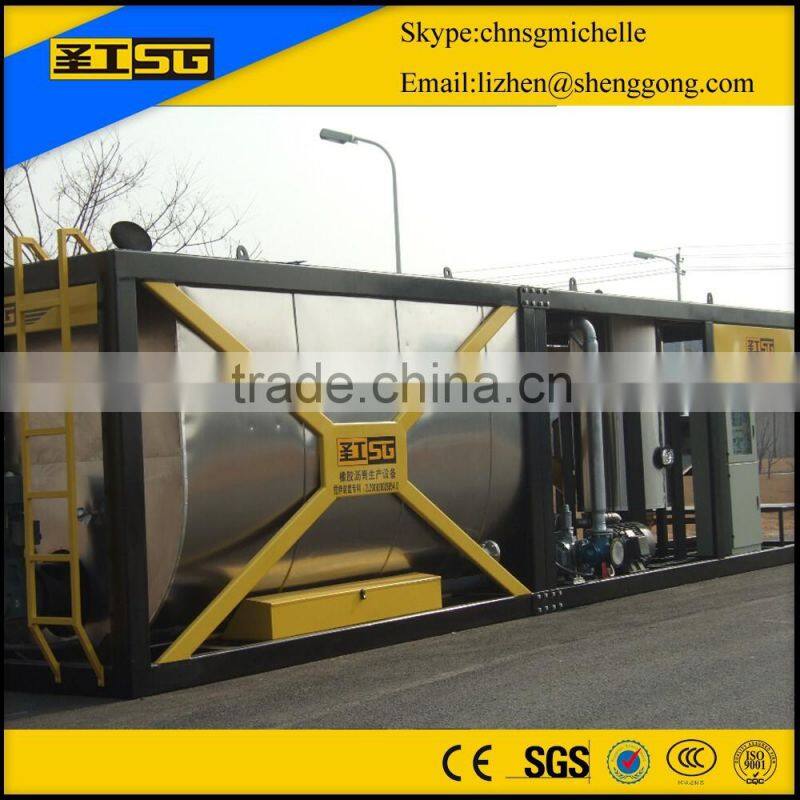

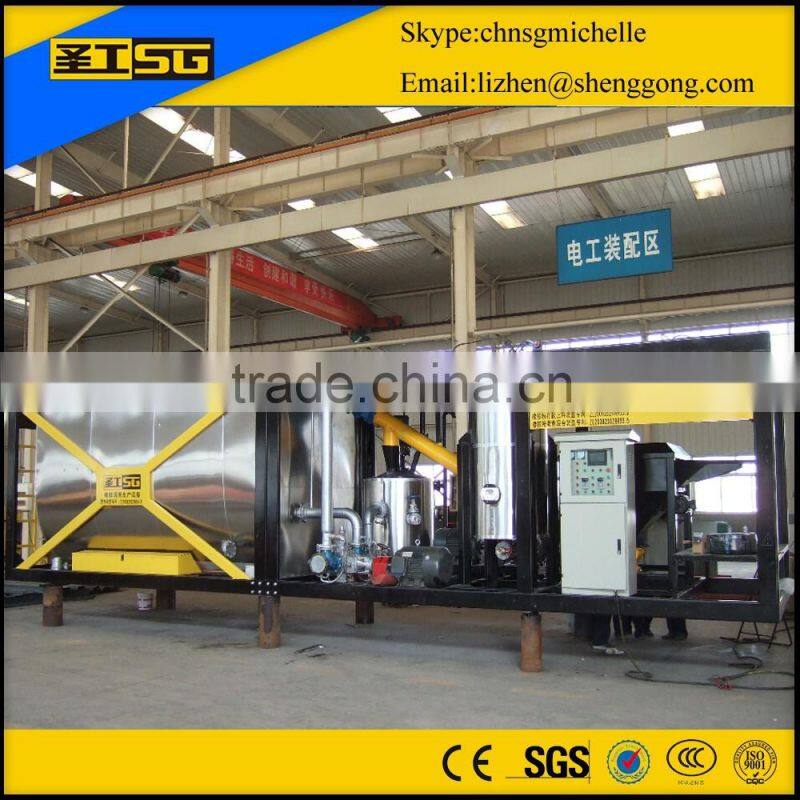

Low fuel consumption Asphalt Rubber Plant,bitumen Rubber Plant
Application
GYXL1606 asphalt rubber plant adopts computer to control the precise proportioning of materials easily and stably. It is capable to produce asphalt rubber stably, successively and efficiently. The finished asphalt rubber is featured by high-temperature stability, low-temperature flexibility, properties of aging resistance, endurance resistance and water resistance. Therefore, asphalt rubber is widely applied in express highway construction.
Main Technical Parameters
Model |
GYXL1606 |
|
Mixing tank |
500L |
|
Reaction kettle |
15m3 |
|
Heat oil furnace power |
80×104 kcal/h |
|
Productivity |
6t/h |
|
Spiral feeder of rubber powder |
2-6t/h |
|
Base asphalt heating mode |
Heat oil |
|
Reaction kettle heating mode |
Imported self-ignited diesel burner |
|
Burner heat capacity |
20×104 kcal/h |
|
Dimensions | ||
Heat oil furnace |
8t |
6000×2500×2800 (mm) |
Mixing device and reaction kettle |
11t |
11200×2500×2900(mm) |
Advantages
- This equipment of frame structure concentrates all the systems in a rack, which is convenient to move around and work in wild area.
- It is equipped high efficiency heat exchanger and heat oil furnace to realize efficient production.
- Imported variable asphalt pump, frequency convertor for asphalt pump and spiral batching device of rubber powder are accurate in measuring, convenient in operation and high in efficiency.
- Continuous mixing and high-speed cutting device with specially design structure can distribute the rubber powder evenly in base asphalt, which improves the properties of finished asphalt rubber.
- U-shape reaction kettle with horizontal stirring shaft of large power
- Each system is able to be started up and shut down by manual buttons easily
As an experienced road maintenance machine manufacturer in China, we supply automatic
asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant,
intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines,
municipal road management equipment and more to customers all over the world.
National High-way Maintenance Equipment Engineering Lab
Workshop
Products
Projects and Certificates
With the efforts of our excellent and unceasing technical R&D team, we obtain 108 national
patents and 12 TOP products of China, 3 TOP products of the world. Our machine also support
the outstanding projects like the most famous street of China Chang An Avenue major repair
forthe 60th anniversary of the founding of PRC, 2010 Shanghai World Expo Park, Motorway of Shanghai Pudong International Airport, airstrip of Shanghai Hongqiao International Airport,
Motorway of Guangzhou Baiyun International Airport for 2010 Asian Games, etc.
Sales network
We obsess professional and experienced technical service personnel,provide the users with low-cost and high-quality products and rapid-response services after sales.
