Help CenterHigh Quality Asphalt/Bitumen Emulsion Plant For Road Construction
Related Products
-
High Quality 10T/H Asphalt/Bitumen Emulsion Plant For Road ConstructionUS$ 30,000 - 60,000MOQ: 1 Set -
High Quality Rubber Asphalt/Bitumen Emulsion Plant For Road ConstructionUS$ 140,000 - 200,000MOQ: 1 Set
-
Rubber Asphalt/Bitumen Emulsion Plant For Road ConstructionUS$ 140,000 - 200,000MOQ: 1 Set
-
Quality Bitumen Emulsion Plant,Asphalt Emulsion Plant,6 TonNegotiableMOQ: 1 Set
-
10Ton,Bitumen Emulsion Plant,Asphalt Emulsion Plant,asphaltNegotiableMOQ: 1 Set

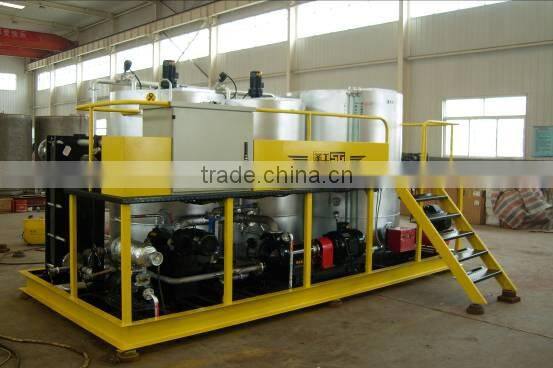

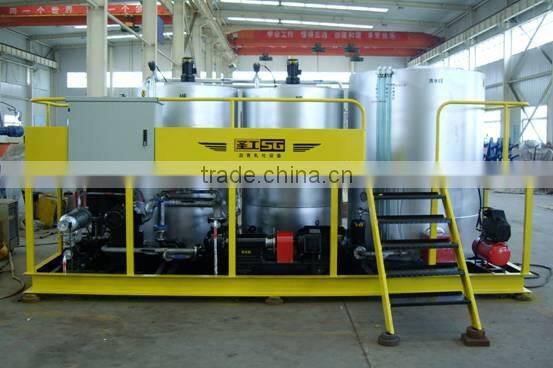

GYRY06H Asphalt Emulsion Plant
1.Main Technical Parameters Of GYRY06H
Systematic Name |
Volume |
Power |
Speed |
Max. Power |
30kw |
||
Productivity |
6T/h |
||
Thermal oil Heating Power |
9kw |
||
Heat Transfer Area |
15 m3 |
||
Fineness of Emulsified Asphalt |
≤5μm |
||
Power Of Burner |
1.0×105 |
||
Weight |
4.5t |
||
Overall Dimensions |
4700×2150×2250mm |
||
|
Emulsifying Machine (Colloid Mill) |
6T/h |
15kw |
3516rpm |
Matrix Asphalt Pump |
7 m3/h |
3kw |
1152rpm |
Water Tank |
3m3 |
||
Emulsion Tank |
1.5 m3×2 |
||
2.Main Configurations
No. |
Name |
Brand/Origion |
Quantity |
Remarks |
1 |
Colloid Mill |
China |
1 |
|
2 |
Asphalt Pump |
POTOU, China |
1 |
|
3 |
Water Pump |
China |
1 |
|
4 |
Emulsion Pump Stirrer |
China |
2 |
|
5 |
Air Compressor |
China |
1 |
|
6 |
Emulsion Tank |
SG, China |
2 |
Each 1.5m3 |
7 |
Water Tank |
SG, China |
1 |
3m3 |
8 |
Heat Exchanger |
China |
1 |
|
9 |
Burner |
RIELLO, Italy |
1 |
10×10kcal |
10 |
Frequency Convertor |
ABB, UK |
1 |
|
11 |
Electric Component |
Schneider, France |
1 |
|
3.Structural Characteristics
- This equipment is settled on a foundation which is convenient for moving to another constructions site and working in the field. Its dimensions are designed according to the standard export container for the convenience of transportation and cutting the freight.
- High efficiency heat exchanger is equipped to cool the finished emulsified asphalt to improve the stability of emulsified asphalt storage; then to heat the cooling water for producing emulsified asphalt, which saves clear water heating expense to reduce production cost and make the process environment friendly and energy saving.
- Two soap tanks are equipped to mix the materials and drain water in turn for continuous production. Compressed air drives fluid flow which is governed by pneumatic valve. This design saves human labor and reduces labor intensity.
- The key part of this plant emulsor (i.e. colloid mill) is independently developed by our company. Its special structure of pilot rotors clearance is likely to keep tiny fixed clearance. It is made of special stainless steel with properties of wear resistance and corrosion resistance. Its emulsion fineness is less than 5μm.
- Frequency governing motor is used to control the rotation speed of asphalt pump. Emulsion flow rate is regulated by valve (displayed by the flow meter). By the above means, asphalt content in emulsified asphalt (ratio of asphalt to water) can be accurately and stably controlled. In-line sampling valve of exclusive design could monitor the emulsified asphalt quality.
- Thermal oil heating system is equipped to warm all the pumps before production, which is easy and convenient to replace baking with blowtorch.
- This equipment is equipped with a water tank. Burner and heating device could heat the clear water and control the temperature in real time, which is convenient and fast.
- All the parts contacting the emulsion are made of qualified stainless steel with good anti-corrosion property to suit for production process of various kinds of emulsified asphalt.

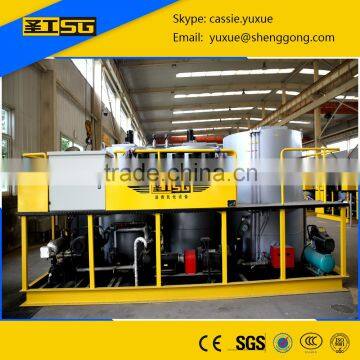

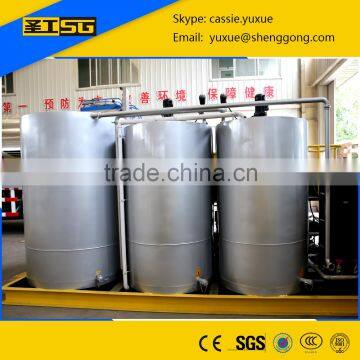

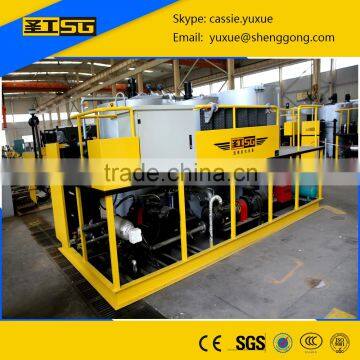

4.Product Details
24hours service, welcome your inquiry and business visiting !
Professional and experienced technical service after sales !
Skype: cassie.yuxue
Henan Gaoyuan Road Maintenance Equipment Co., Ltd. was founded in 2004, and now is the TOP 3 companies in road maintenance equipment manufacturing industry of China.
We supply automatic asphalt distributor, synchronous chip sealer, fiber chip sealer, asphalt emulsion plant, intelligent asphalt rubber plant, intelligent micro surfacing paver (slurry paver), snow removal machines, municipal road management equipment and more to customers all over the world.
National High-way Maintenance Equipment Engineering Lab
In September 2012, the national development and reform commission approved the projectof National High-way Maintenance Equipment Engineering Lab. Two Lab buildings, a pilot workshop, the machine performance test site were built.By purchasing test equipment, test platform, multi-function integrated tester, It improved laboratory hardware advantage, strengthened personnel training and technology exchange, solved the technical bottleneck existed in road maintenance equipment.
Certification
Q1: What are the terms of payment.
A:Generally, L/C orT/T are used. that is 30% prepayent and 70% before shipping.
Q2: What about the warranty.
A;It would be for 12 months.
24hours service, welcome your inquiry and business visiting !
professional and experienced technical service after sales !
Skype: cassie.yuxue
