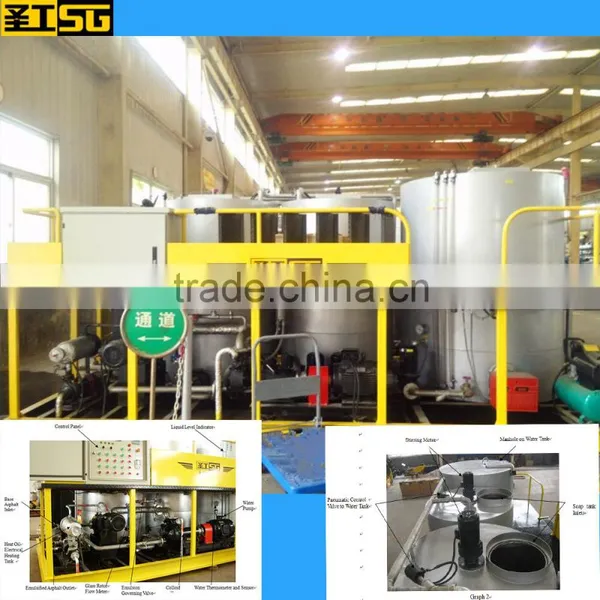

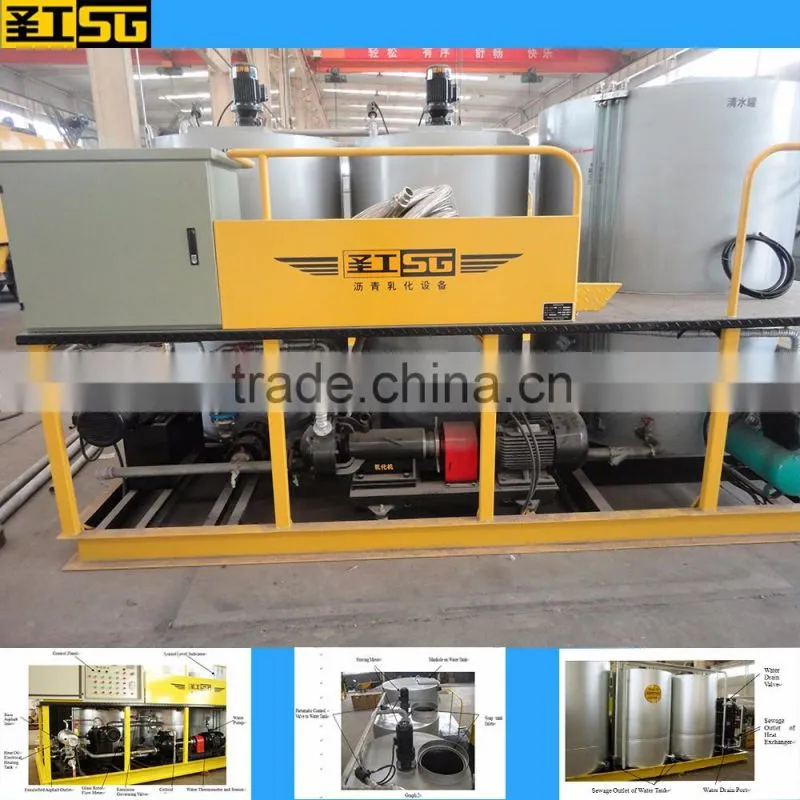

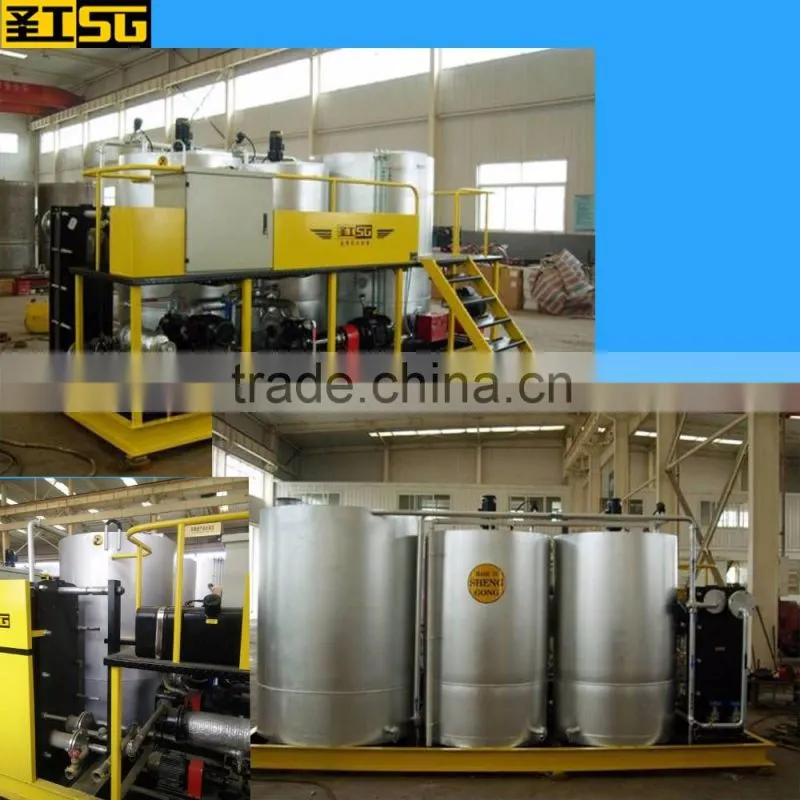

6Ton, 10Ton GYRY06H Bitumen Emulsion Plant, Asphalt Emulsion Plant
Application
GYRY06H bitumen emulsion plant is the new type of asphalt emulsion equipment developed by our company and has won national patent with patent No. ZL00226275.4. Emulsified asphalt of wide range of asphalt content and stable property produced by this equipment can meet various requirements of different construction technologies, which is applied into the express highway constructions and road maintenance projects.
Main Technical Parameters
Model: |
GYRY06H |
Max Capacitance: |
30kWh |
Rotation Speed of Emulsifier: |
2930rpm |
Power of Mill: |
15kW |
Thermal oil Heating Power: |
9kWh |
Power of Burner: |
1.0×105kcal/h |
Heat Transfer Area: |
15m2 |
Fineness of Emulsified Asphalt: |
<5μm |
Productivity: |
6t/h |
Weight: |
4.5t |
Overall Dimensions: |
4700×2150×2330mm (L×W×H) |
Main Configurations
Colloid Mill |
SG |
Burner |
RIELLO, Italy |
Asphalt Pump |
POTOU, China |
Heat Exchanger |
China |
Air Compressor |
China |
Frequency Convertor |
ABB, UK |
Electric Component |
Schneider, France |
Company information
Henan Gaoyuan Road Maintenance Equipment Co.,Ltd (Gaoyuan SG), has been specializing the development and production of road maintenance machinery since its foundation in April, 2004.
There are 5 production workshops and 1 paint finishing workshop with more than 270 units of various kinds of production and inspection equipment.
As a National Hi and New Technology Enterprise Gaoyuan SG is widely recognized as one of the TOP 3 domestic suppliers of road maintenance equipment and vehicles which also has provincial technology research center with 23 invention patents among 108 practical patents and several research results which fills in the blanks for relative areas.
In 2012, we established China's first laboratory for road maintenance equipment.
