Specifications
150w good quality CO2 laser tube, compatible for metal and non metal CW 5000 cooling, automatic focus for metal, 4000dpibest laser metal cutting machine in China
Model: YH-1390G
Working range: 1300mm×1900mm
laser power:150w
Cutting thinkness: 0.1-30mm(depends on the material)
Cutting speed: 0.1-3600(mm/min)
Engraving speed: 0.1-6400(mm/min)
Resolution: 4000dpi
Location accuracy: <0.05mm
Mini words: Chinese:2×2mm Letter:1×1mm
Power: AC220V (10% more or less) 50HZ
Working Power: <1650w Working platform: Strip platform
Operating Temperature: 0-45 celius
Operating humidity: 5%-95%
Cooling type: Water cooling
File format: PLT,CDR,AI,DWG,DXF,DST,PCX,TGA ect

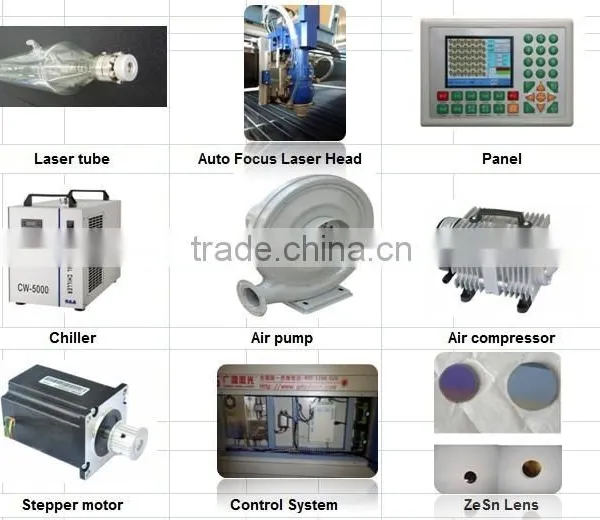

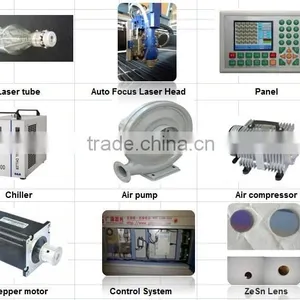

32 bit DSP controlling system
Focus Mode: Automatic focus for metal
CW5000 water cooling box
LEISAI stepping motor and driver import from USA
ShangYin straight guide rail
Steady laser power box
Import laser focus mirror
Strip platform
Net Weight: 360kg
Gross weight: 530kg
Size: 1930mm*1150mm*1220mm 2800mm*2100mm*1200mm
| Specail Advantage | ||||||||
|
1. YH-1390G not only can cut Acrylic, density board, ABS, double color boards, bamboo and other non-metal materials,but also can cut Carbon steel, stainless steel and other metal materials. 2.Using DSP high speed controlling system and TFT screen,USB port for Data transmission. 3. Configuration the laser head can cut both metal and non metal in one head and special laser tube,import laser focus from USA. 4. Use autofocus system and blow system 5. Configuration the special water cooling tank | ||||||||
| Applied materials and Industry | ||||||||
| Applied materials: Acrylic, density board, ABS, double color boards, bamboo and other non-metal materials,but also can cut Carbon steel, stainless steel and other metal materials. Applied industry: Professional applied in advertisement, decoration, furniture, lamp act the role ofing, blister, die cutting, light boxes, packaging and other industries. |
Aftersales Service
1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
Certificates
Picture wall (pictures with clients from all over the world)
Head office & Teams (in Guangzhou, near the airport)
Warehouse & Goods
