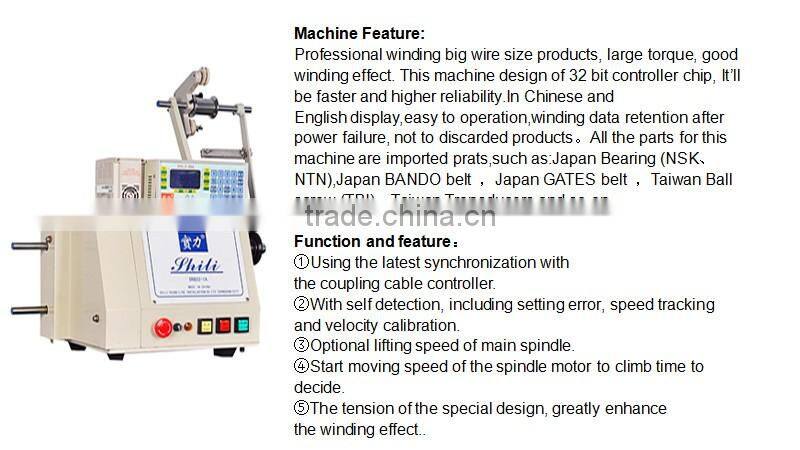

International High Quality Standard filament winding machine manufacturers
Descriptions of stator coil winding machine
Spindle number | 1 |
Wire size range | 0.05-2.0MM |
Winder width | 180MM |
Max.speed | 0-4000turns/min(Two levels of adjustable)
|
Input power | 220V 50HZ/60HZ |
Spindle motor | Three-phase motor+Phase motor+ AC Drives |
Winder motor | Stepping motor |
Machine size | 600×360×450mm |
Package size | 780×810×580mm |
Net weight | 60kg |
Gross weight | 80kg |
Loop diameter | 200mm |
Max wire distance | 9.99mm |

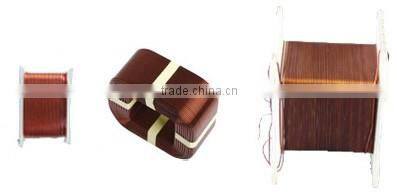

Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.

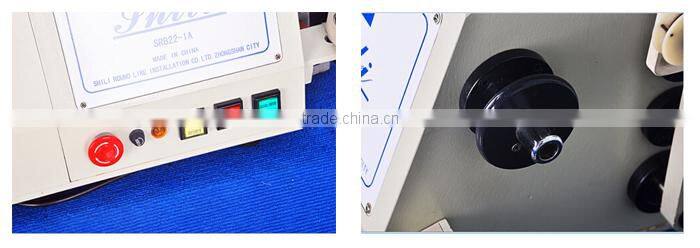

Details images of stator coil winding machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
A:Web:
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
