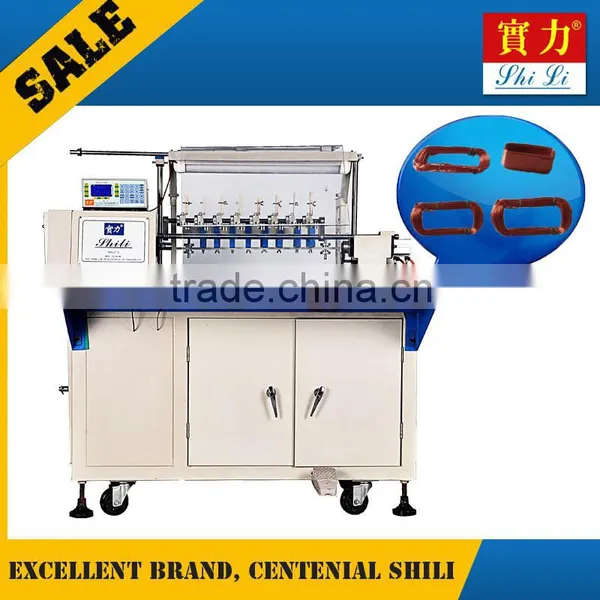

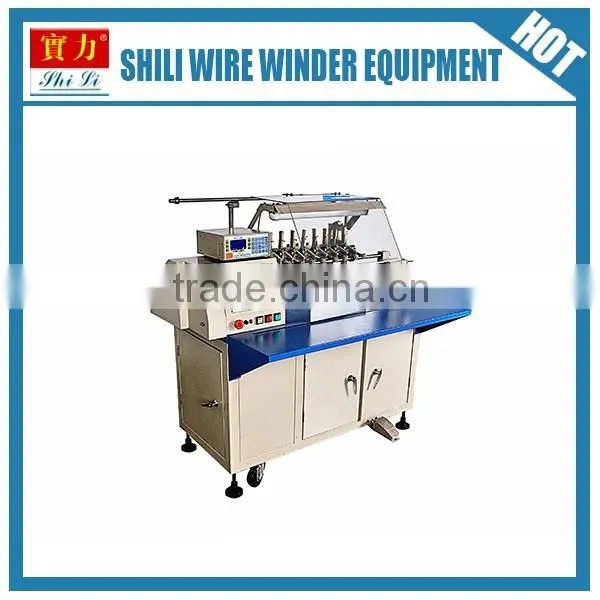

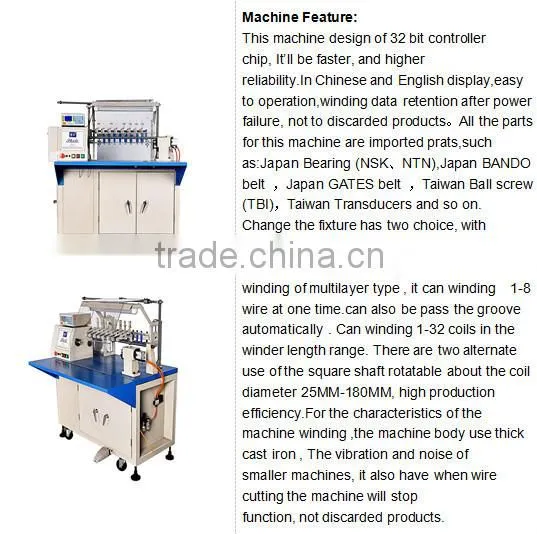

SRA22-8 air condition motor coil universal winding machine
Main configuration:
a. Row of thread with eight winding head, the winding head length and elevation can beeasily adjusted.
b.Equipped with mobile wire frame (including eight group bobbin and eight spools ,size
is 120mm × 300mm diameter ).
c. With two mold spindle :dimensions 16 × 16 × 630mm
d. Supply frame size is 800 × 800 × 780mm.
e. Install brake resistors, the position more accurately
Descriptions of toroid winding machine
Spindle number |
8 |
Wire size range |
0.1-0.6mm |
Loop diameter |
260mm |
Max wire distance |
9.99mm |
Winder width |
180mm |
Max speed |
0-3500 turn/min |
Input power |
220V 50HZ/60HZ |
spindle motor |
AC1/2three phase motor+1HP transducer |
winder motor |
stepping motor |
Machine size |
1320×900×1320mm |
Package size |
1370×1420×1300mm |
net weight |
200kg |
gross weight |
240kg |
Application range:
Can winding a variety of motor coil groups, including industrial motors, air conditioner motors, washing machine motors, fan motors.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
