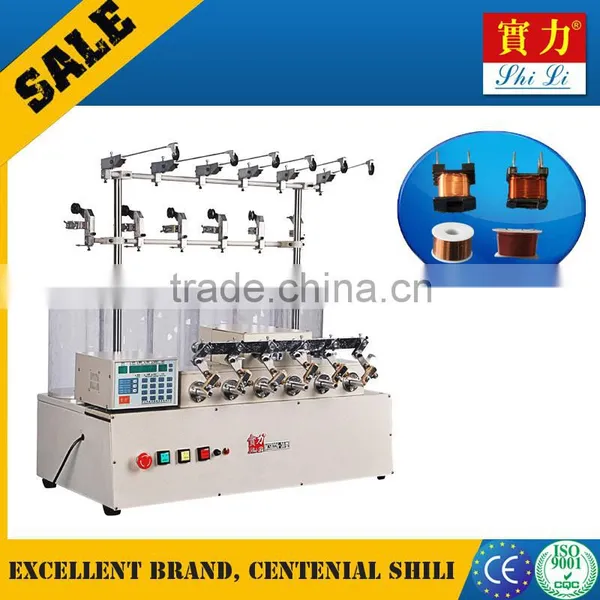

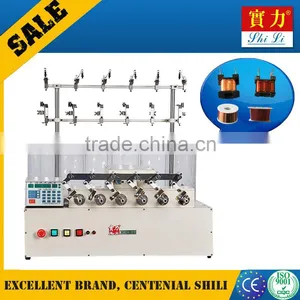

Speaker voice coil winding manufacturing machines
Descriptions of coil winding machine
Spindle number |
6 |
wire size range |
0.05-0.45mm |
Loop diameter |
70mm |
The max wire spacing |
9.99mm |
winder width |
60mm |
Max speed |
0-5000turns/min |
Spindle pitch |
85mm |
Input power |
220V 50HZ/60HZ |
spindle motor |
AC1/2three phase motor+1HP transducer |
winder motor |
stepping motor |
Machine size |
930×510×480mm |
Package size |
460×650×1040mm |
net weight |
65kg |
gross weight |
85kg |
Application range:

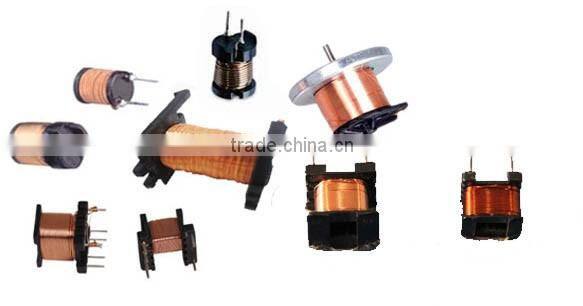

EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch power transformer and special products.

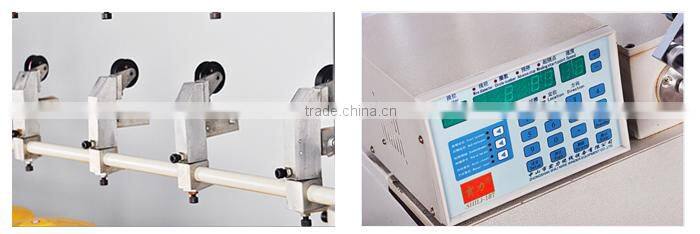

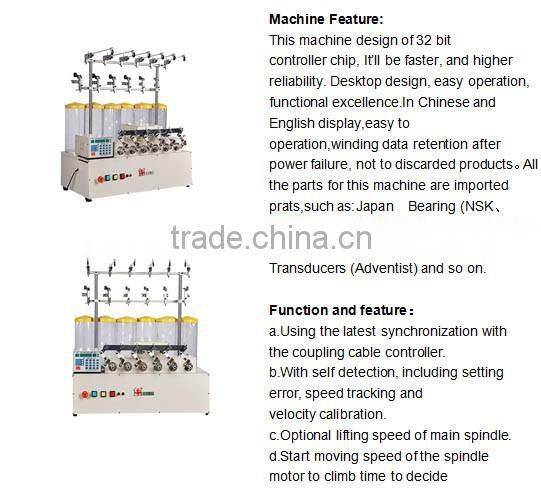

Details images of coil winding machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
A:Web:
