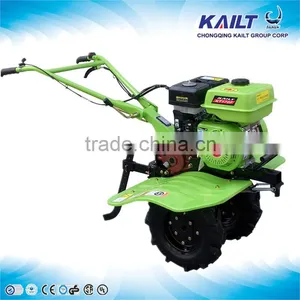

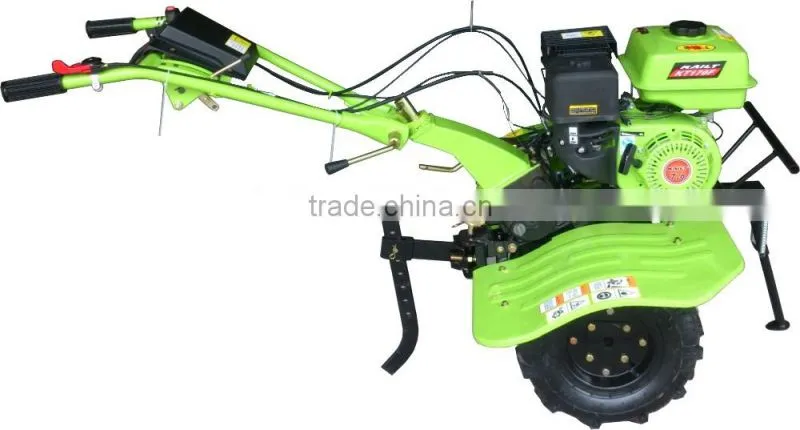

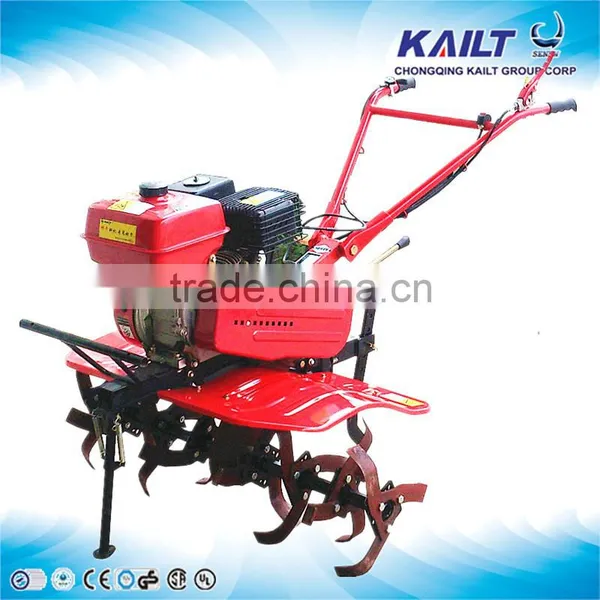

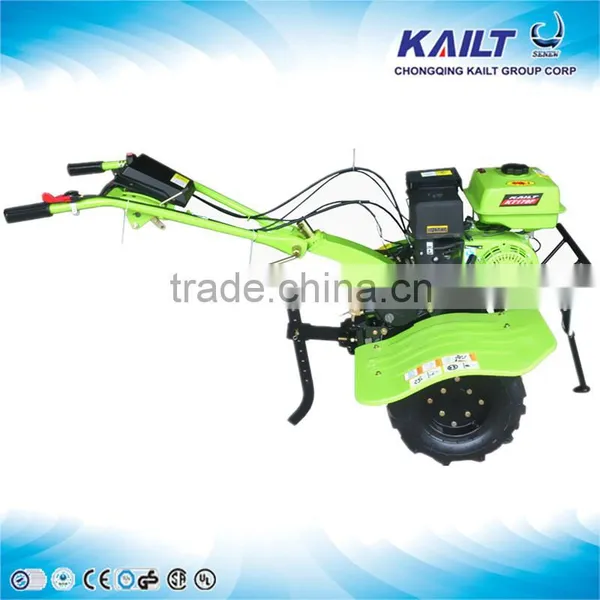

CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden

CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden photo-1

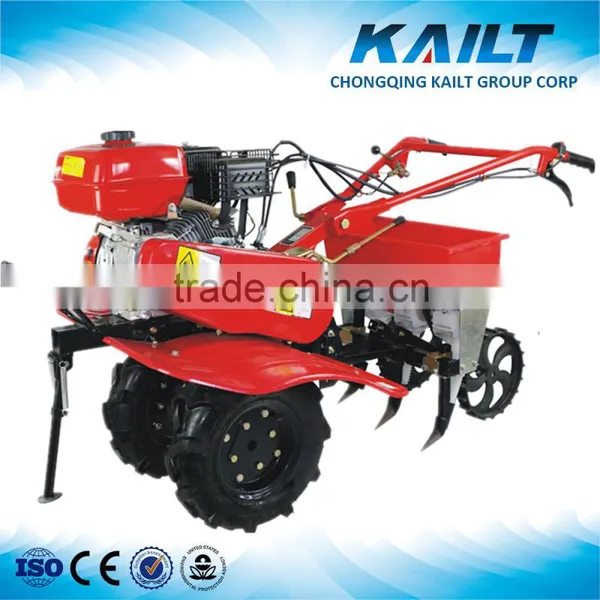

CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden photo-2

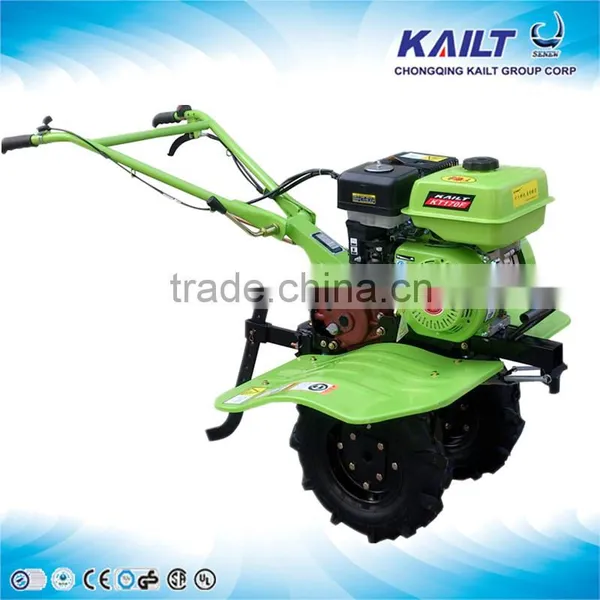

CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden photo-3

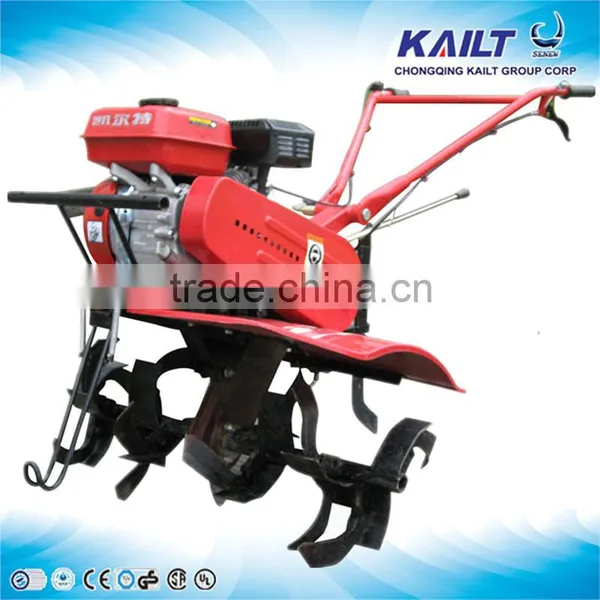

CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden photo-4
CE ISO Approved 3.8KW Gas Engine Power Tiller for Cultivation Farming Garden photo-5
US$ 180 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Gasoline
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Farm Cultivator
Power Type Gasoline
Power(W) 4.1KW
Certification ISO CE
Place of Origin China
Brand Name KAILT
Model Number 1WG4.1-90FQ
Weight 72KG
After-sales Service Provided Engineers available to service machinery overseas




Product Description

Product Details:

CE ISO approved 3.8KW gas engine power tiller for cultivation farming gardenCE ISO approved 3.8KW gas engine power tiller for cultivation farming gardenCE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

Technical Parameter:

Tiller Tiller Model 1WG4.1-90FQ
Gasoline engine Engine model 7HP gasoline engine
Engine type OHV25°Tilt,single cylinder, Forced air cooling, 4-stroke
Bore×Stroke(mm) 70×55
 Displacement(ml) 207
Compression 8.5:1
Starting system Recoil start
Fuel tank capacity) L 3.6
Oil volume) L 0.6
Rated rotary speed(r/min) 3600
Rated output(kw) 4
Tilling parameter Blades 4 pcs 3 groups
Tilling scope (mm) 900
Tilling depth(mm) ≥100
Gear Shifting  Reverse, 0, 1, 2
Driving Mode belt
Fuel consumption (Kg/kw.h) ≤35
Working performance( hsqm/h.m) ≥0.04
Revolutions per minute of revers gear 73
Revolutions per minute of slow gear 97
Revolutions per minute of fast gear 133

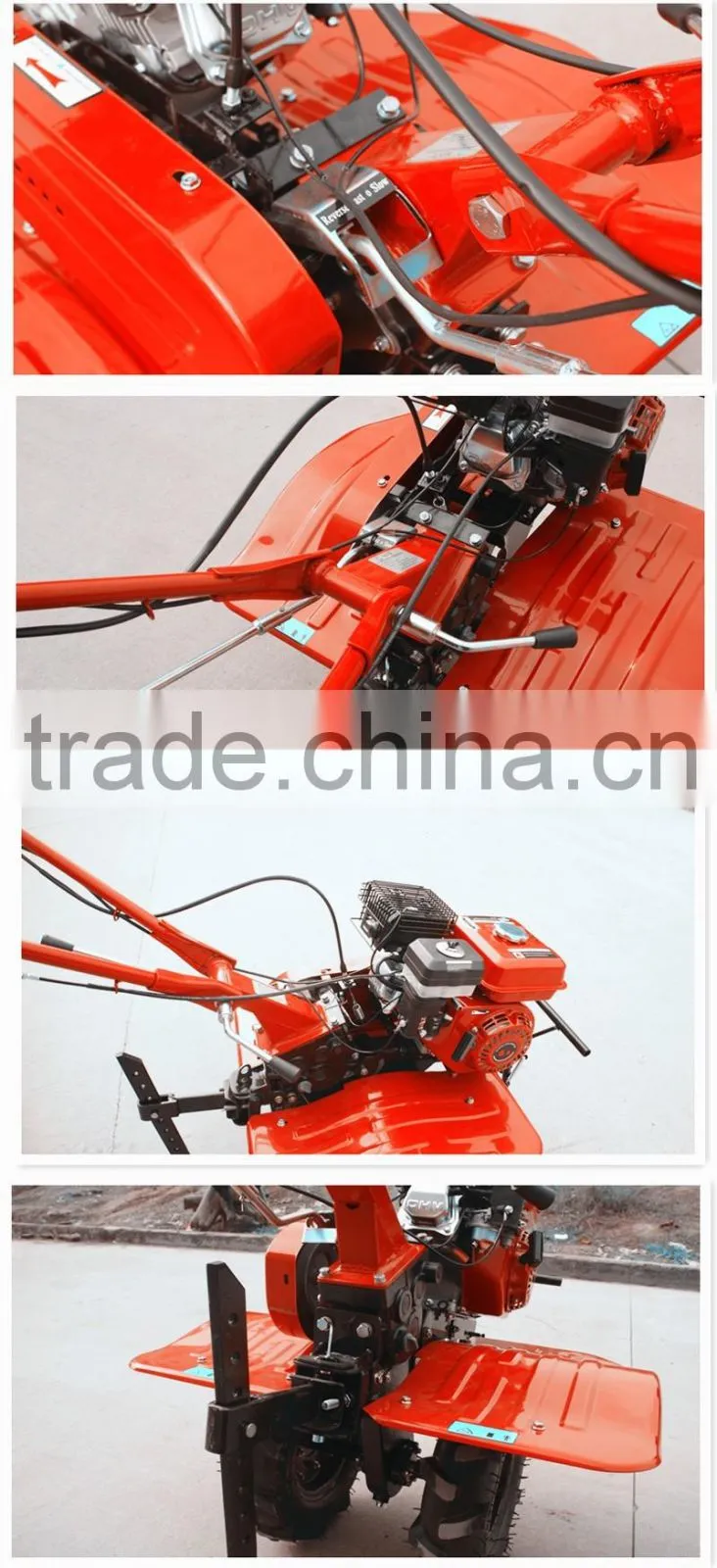

Tiller details Handle horizontal adjustment angle±90°
Handle vertical adjustment angle 60°
Left Handle assessories Clutch and stall switch
Right handle assessories Throttle
Transimission type 38 type
Transimission material cast iron
Tire 400-8
Axle Diameter φ23

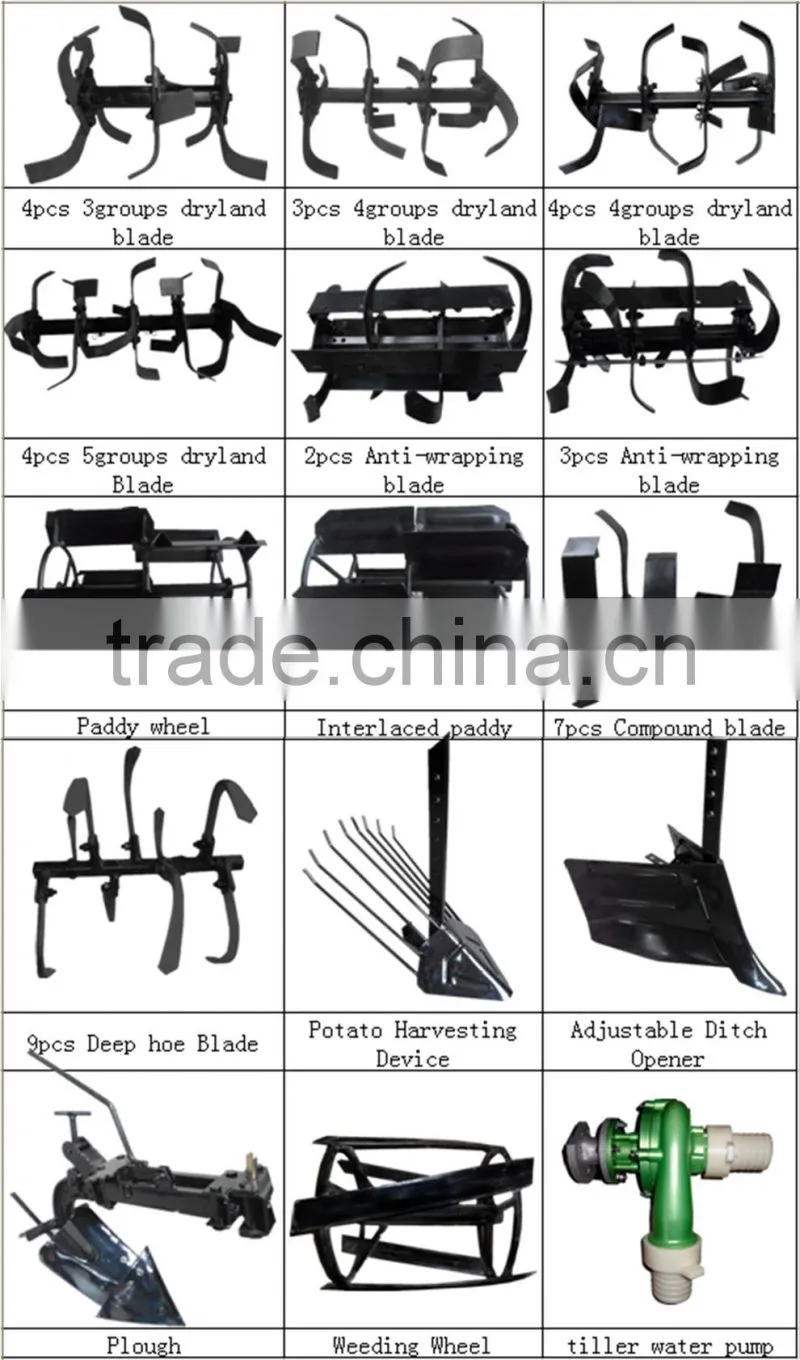

Usage and Accessories:



 Used in drylands,paddy,sandy soil,none farmed lands,greenhouse,orchard,garden operations and so on.



Tilling, Weeding,ditching,furrowing,irrigation,potato harvest and so on.

If you want know the more details about assessories,pls contact with us!

 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden







Certification:



 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden



















Packaging & Shipping

1.Packaging Details:



Steel inside frame

Common Cartons or Colorful Cartons

Carton or Wooden case









2. Shipping and airexpress:

LCL or FCL,Our forwarder or Your Forwarder



 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

Our Services

1.   Ways Of Cooperation:

OEM,ODM,Wholesale,Agent





2.    Guarantee:

Guarantee Period:1 year for Key parts(According to supplying machine photoes with machine No.)

Technical Support: Engineer online and Technical consult



Company Information

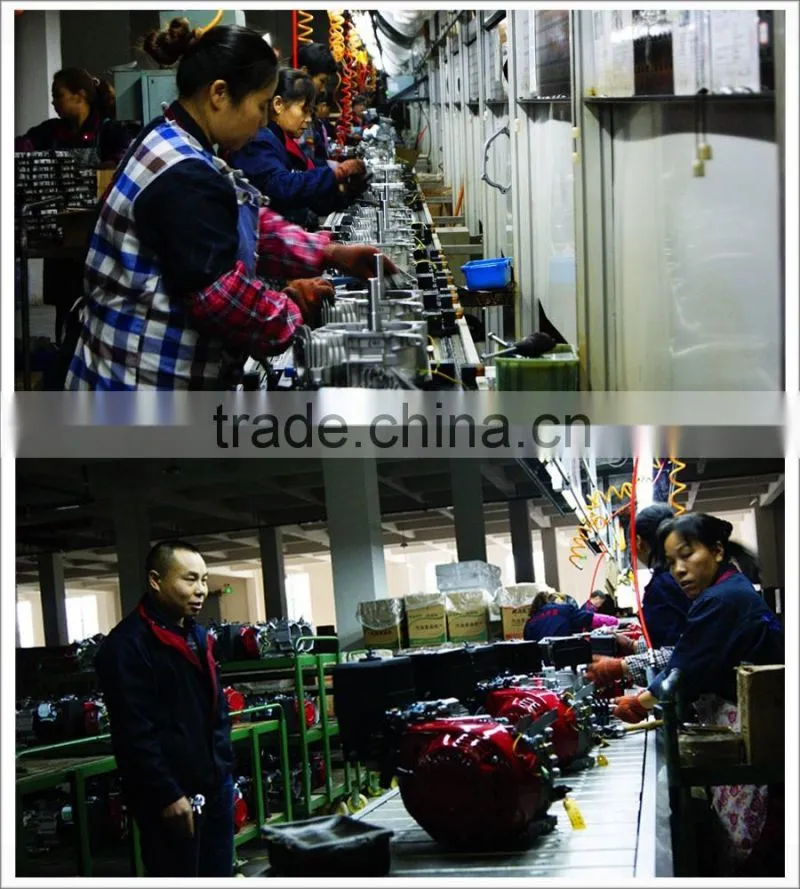

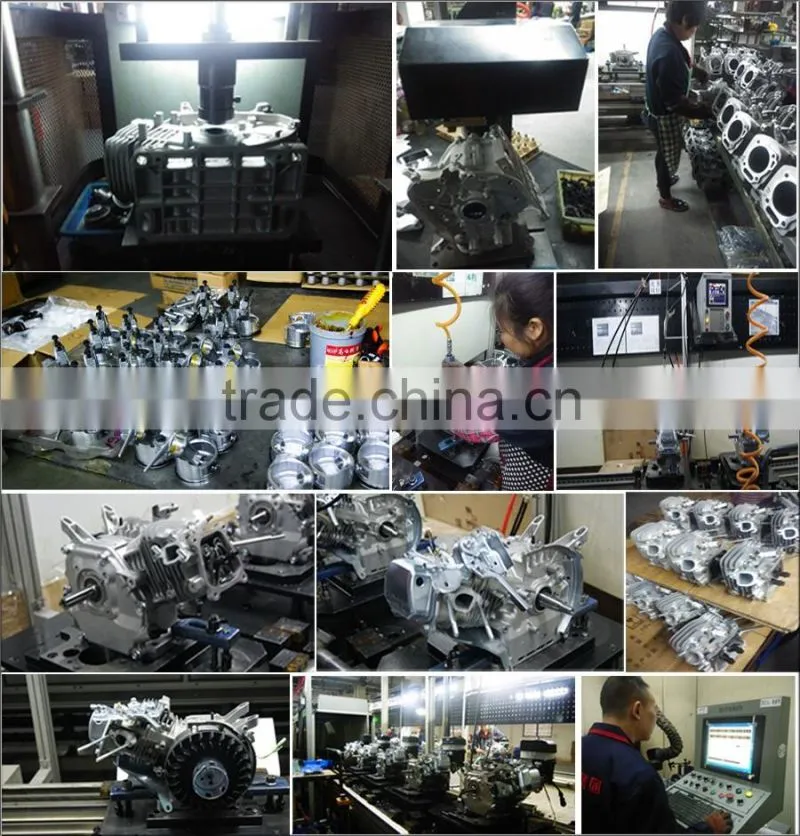

1.Factory Show:

 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden



 CE ISO approved 3.8KW gas engine power tiller for cultivation farming gardenCE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

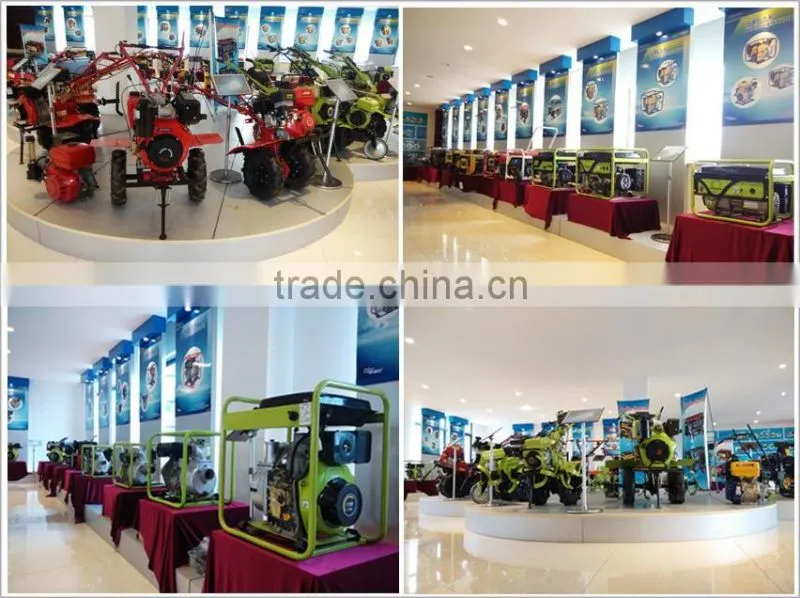

2.Showroom:

 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

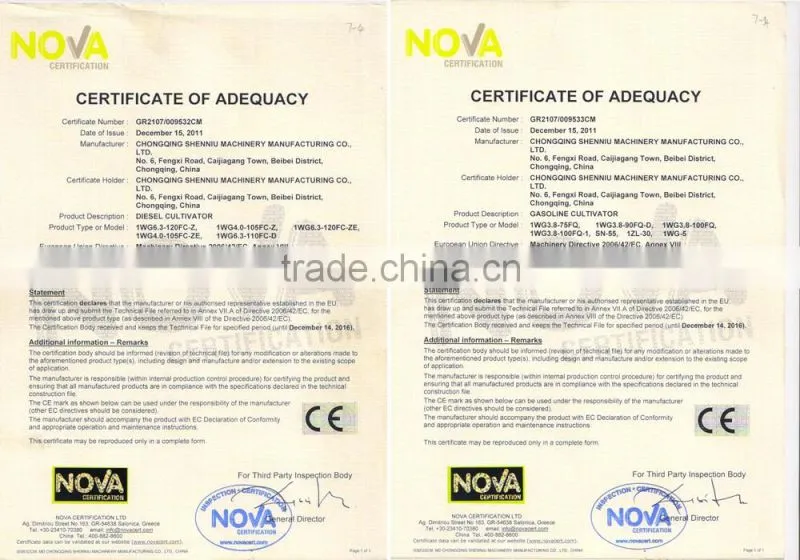

3.Company Certification:



 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

4. Clients Photoes:

 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden

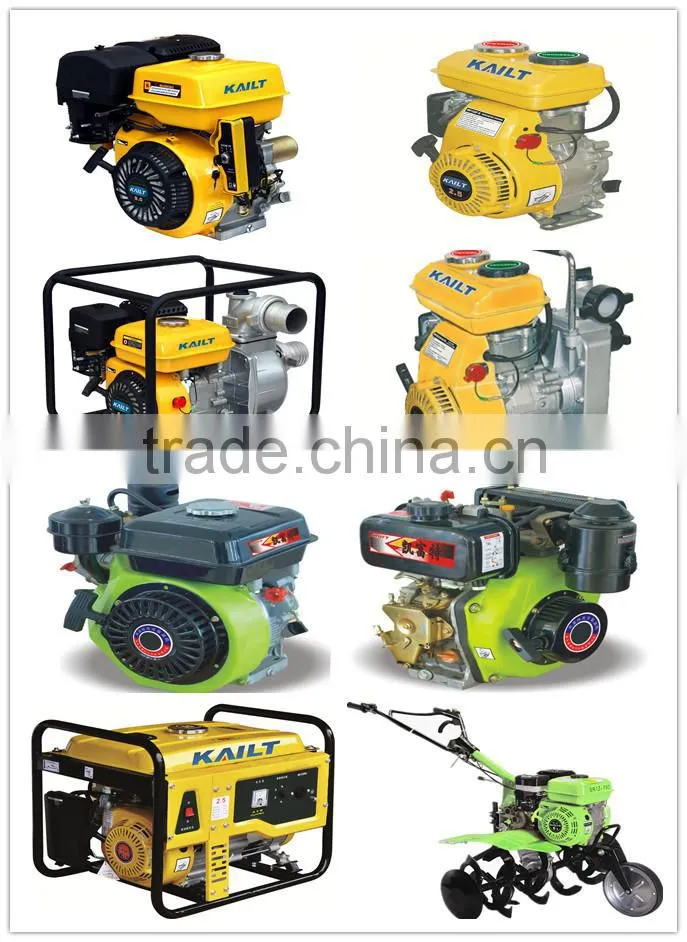

5. All the products:



 CE ISO approved 3.8KW gas engine power tiller for cultivation farming garden
