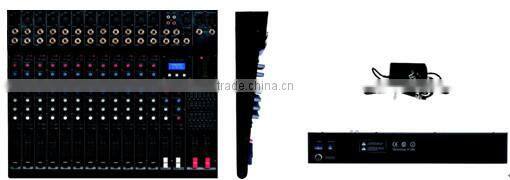

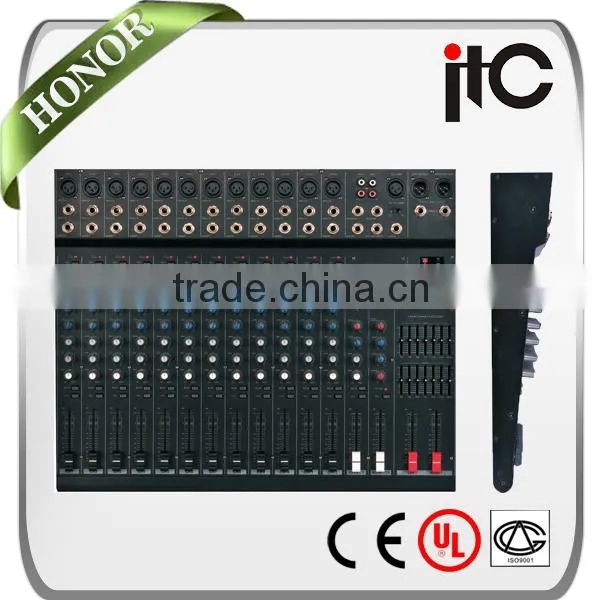

ITC TS-16P-4 Series Magic Music Internal DSP 21 Kinds Effect DJ Mixer Controller
ITC TS-16P-4 Series Magic Music Internal DSP 21 Kinds Effect DJ Mixer Controller
ITC TS-16P-4 Series Magic Music Internal DSP 21 Kinds Effect DJ Mixer Controller
1) SMT, powerful function, hi-fi sound quality, clear tweeter, and shock subwoofer
2) This series provides 8/16/24 Mic or Line input with feedback effect
3) With 8 stereo sound input and 4 external stereo effect signal input
4) With 4 grouping output, 2 AUX output, and 2 effect output
5) Built in 21 kinds of DSP effect and the output is with 9 band of EQ
6) Mic input is with phantom power at DC 48V
7) With external power adapter in low-noise design
8) With DJ lamp
ITC TS-16P-4 Series Magic Music Internal DSP 21 Kinds Effect DJ Mixer Controller
Model |
TS-16P-4 |
TS-24P-4 |
TS-32P-4 |
Mono Input |
8 |
16 |
24 |
Stereo Input |
4 Group |
4 Group |
4 Group |
Secondary Mono Input |
8 |
16 |
24 |
Phantom Power |
+48V |
||
Output |
3 Main Output; 4 Grouping Output; 2 AUX Output; 2 CD/Tape Output; 2 Effect Output; 1 Stereo Headset Output |
||
Frequency Response |
20 --- 20KHz ±0.5dB |
||
Max. Gain of Mic |
56dB ±2dB |
||
Max. Gain of Mono Line |
36dB ±2dB |
||
Max. Gain of Stereo Sound |
26dB ±2dB |
||
Crosstalk |
≥90dB @ 1KHz |
||
S/N Ratio |
83dB @ 1KHz 0dB |
||
Max. Level of Balanced Main Output |
25dB ±1.5dB |
||
Max. Level of Unbalanced Main Output |
19dB ±1.5dB |
||
Max. Level of Unbalanced AUX Output |
19dB ±1.5dB |
||
Max. Level of Unbalanced CD/Tape Output |
19dB ±1.5dB |
||
Max. Level of Unbalanced Effect Output |
19dB ±1.5dB |
||
Headset Output |
12dB ±1.5dB @ 1KHz 32 ohm |
||
Gain Difference Between Channels |
≤2dB |
||
Distortion |
≤0.02% @ 0dB 1KHz |
||
Frequency Point Range of HF, MF & LF |
12KHz, 110Hz --- 8KHz, 80Hz |
||
Offset and Gain of Central Frequency Point |
≤8%, ±15dB |
||
Central Point |
63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz |
||
Offset & Gain |
≤8%, ±15dB |
||
|
Effector |
21 Kinds: Hall, Room, Plate, Ambient, Gated, Reverse, Voice, Del & Rev, Echo 40, Echo 50, Delay, Chorus, Cho & Del, Cho & Rev, Flanger, Fla & Del, Fla & Del, Fla & Rev, Tremolo, Tre & Rev, Wan Wah, Wah & Rev |
||
Clipping Wave Indication of the Channel |
Tips Advance 3dB |
||
12 Level Indicator for Output |
+9dB, +6dB, +3dB, 0dB, -2dB, -4dB, -6dB, -9dB, -12dB, -16dB, -18dB, -21dB |
||
Power Supply and Consumption |
220V @ 50Hz, <100W |
||
Dimension of External Power |
212*143*77mm |
||
Dimension |
525*512*65mm |
757*512*65mm |
989*512*65mm |
NW |
13Kg |
15Kg |
17Kg |
GW |
15Kg |
17Kg |
19Kg |
Transport Dimension |
674*591*227mm |
906*591*227mm |
1138*591*227mm |
