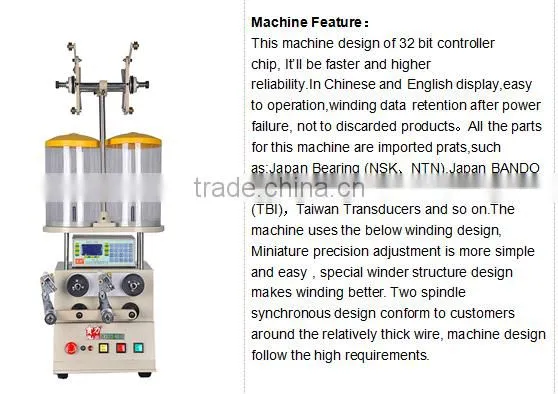

Winding medium anand small transformers rolling machine
Function and feature:
a.Using the latest synchronization with the coupling cable controller.
b.With self detection, including setting error, speed tracking and velocity calibration.
c.Optional lifting speed of main spindle.
d.With ruler function can be easily measured width and start point.
e.Start moving speed of the spindle motor to climb time to decide by yourself.
Descriptions of for toroidal transformer winding machine
spindle |
2 |
wire size |
0.1-1.2mm |
winding dia. |
80mm |
max. Wire space |
9.99mm |
winding width |
100mm |
max.speed |
4000turns/min |
domestic bearing |
623,626,6002,6003 |
import bearing |
NSK6002,6204 |
power resource |
220V 50HZ/60HZ |
spindle motor |
AC1/2three phase motor+1HP transducer |
winding motor |
stepping motor |
dimension |
460×660×600mm |
wooden case |
540×730×580mm |
net weight |
70kg |
gross weight |
88kg |
Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,Switch
power transformer and special products.
Details images of for toroidal transformer winding machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
6. Q: How to contact us?
A:Web:
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
