ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor

ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor thumbnail-1
ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor thumbnail-2
ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor thumbnail-3
ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor photo-1

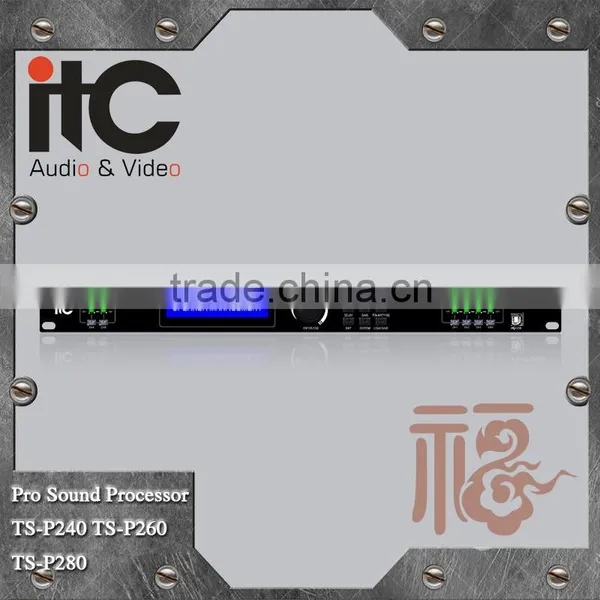

ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor photo-2

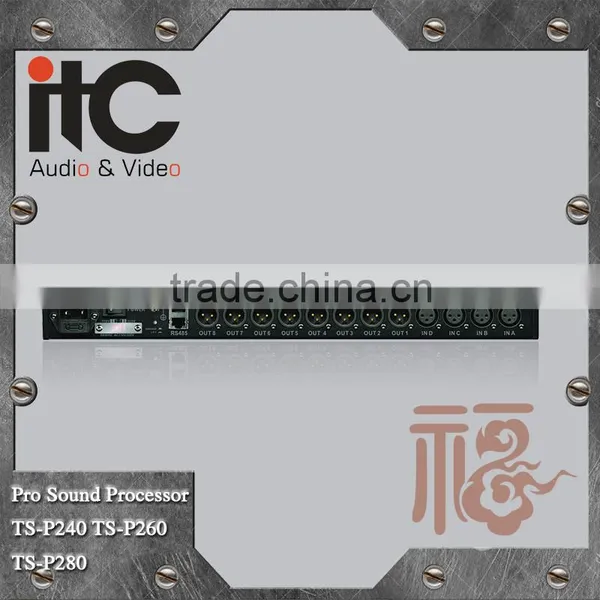

ITC TS-P240 Series 96KHz Sampling Rate 32bit DSP Professional Digital Audio Processor photo-3
US$ 1 - 600 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ITC
Model Number:
TS-P240 TS-P260 TS-P280 TS-P480
Contact Supplier Request Quote Chat Now
Guangzhou ITC Electronic Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ITC
Model Number TS-P240 TS-P260 TS-P280 TS-P480
Feature

1. 96KHz sampling rate, 32-bit DSP processor, 24-bit A/D and D/A converter;

2. 5 option: 2 inputs and 6 outputs, 2 inputs and 8 outputs, 3 inputs and 6 outputs, 4 inputs and 6 outputs, 4 inputs and 8 outputs. Various combination of frequency division mode, high pass and low pass frequency spot can reach 20Hz~20KHz;

3. Each input and output has 6 separate parametric equalizer, adjustment range is up to±20dB, while balancing the output channel can also choose 2 ways which is Lo-shelf Hi-shelf and slope;

4. Each input and output have independent 6 band EQ, and the adjustment range is ±20dB. And the EQ of output channel is with 2 kinds of ramp method that is Lo-shelf and Hi-shelf;

5. Each input and each output have control function for delay and phase and mute setting; the duration of delay is up to 1000ms;

6. The noise gate of input channel is adjustable;

7. Users could control the gain, the pressure limit and select the input channel via output channel; also, users could copy parameters of 1 channel to the other and do linkage control;

8. Users could control the device via both buttons/thumbwheel on the panel and software in the computer;

9. Users could set password via button “SYSTEM”;

10. The device is connected with computer via USB, Wifi, RS-485 and Internet; remote control is realized via Wifi and Internet;

11. The device is connected with central control host via RS-485 to adjust main parameters;

12. Could lockout part of function to realize data confidentiality;

13. 1 device store up to 30 kinds of program.

Technical Parameters
Model
TS-P240
TS-P260
TS-P280
TS-P480
Input Channel & Socket
2 channel XLR female
2 channel XLR female
2 channel XLR female
4 channel XLR female
Output Channel & Socket
4 channel XLR male
6 channel XLR male
8 channel XLR male
8 channel XLR male
Input impedance
20KΩ balanced
Output impedance
100KΩ balanced
PC interface
Front Panel: 1 USB, Real Panel: 2 RS-485 (RJ-45)
CMRR
>70dB (1KHz)
Input Range
≤+25dBu
Frequency Response
20Hz-20KHz(-0.5dB)
SNR
>110dB@1KHz0dBu
Distortion
<0.002% OUTPUT=0dBu/1KHz
Channel Separation
>88dB (1KHz)
Input Channel Function
Input Mute
Independent mute control for each channel
Input Volume
Adjustment Range: -80dB to +12dB, step is 0.2dB
Input Delay
Each input channel has independent delay control; adjustment range is 0-1000ms, ＜10ms, step is 21us, 10ms-20ms, step is 84us, ＞20ms, step is 0.5ms
Input Phase
inverting (+)/reverse (-)
Input EQ
Each input channel has 6 band EQ; adjustable parameter: center frequency: 20Hz-20KHz, 239 frequency points; bandwidth: 0.05oct-3oct, step is 0.05oct; Gain: -20dB to +20dB, step is 0.1dB
Input Compression
Threshold: -40dBu to +20dBu, step is 0.5dBu; compression rate: 1.0:1 to 20:1, ＜2.0:1, step is 0.1, ＞2.0:1, step is 0.5; response time: 0.3ms to 200ms, ＜1ms, step is 0.3ms, ＞1ms, step is 1ms; release time: 50ms to 5000ms, step is 1ms
Input Extension
Threshold: -40dBu to +20dBu, step is 0.5dBu; extension rate: 1:1.0 to 1:20, ＜1:2.0, step is 0.1, ＞1:2.0, step is 0.5; response time: 50ms to 5000ms, ＜1ms, step is 0.3ms, ＞1ms, step is 1ms; release time: 0.3ms to 200ms
Output Channel Function
Output Mute
Each channel has independent mute control
Output Selection
Could select different input or different input combination
Output Gain
Adjustment range: -80dB-+12dB, step is 0.2dB
Output Delay
Each output channel has independent delay control; adjustment range is 0-1000ms, ＜10ms, step is 21us, 10ms-20ms, step is 84us, ＞20ms, step is 0.5ms
Output Phase
inverting (+)/reverse (-)
Frequency Divider Setting
Each output channel has independent low pass filter (LPF) and high pass filter (HPF); adjustable parameters: Filter Type: Linkwitz-Riley/Bessel/Butterworth; frequency turning point: 20Hz-20KHz, 239 frequency point; attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct, 30dB/oct, 36dB/oct, 42dB/oct, 48dB/oct
Compression Setting
Threshold: -40dBu to +20dBu, step is 0.5dBu; compression rate: 1.0:1 to 20:1, ＜2.0:1, step is 0.1, ＞2.0:1, step is 0.5; response time: 0.3ms to 200ms, ＜1ms, step is 0.3ms, ＞1ms, step is 1ms; release time: 50ms to 5000ms, step is 1ms
Limiter Setting
Each output channel has independent limiter; adjustable parameters: threshold: -40dBu to +20dBu, step is 0.5dBu; starting time: 0.3ms-200ms, ＜1ms, step is 0.1 ms, ＞1ms, step is 1ms; release time: 50ms-5000ms, step is 1ms
Output EQ
Each output channel has 6 band EQ; 3 kinds of EQ method: Parameter/Lo-Shelf/Hi-Shelf; A Parameter: adjustable parameter: frequency center point: 20Hz to 20KHz, total 239 frequency points; bandwidth: 0.05oct to 3oct, step is 0.05oct; Gain: -20dB to +20dB, step is 0.1dB; B Lo-Shelf and Hi-Shelf: adjustable parameters: central frequency point: 20Hz to 20Khz, total 239 frequency points; slop: 6dB/12dB; Gain: -20dB to +20dB, step is 0.1dB
Processor
96KHz sampling rate, 32Bit DSP processor, 24Bit A/D and D/A converter
Display
2x24 LCD blue-backlight display settings, precise digital level meter of 5 band LED for input/output, status of mute and editing
Power Consumption
≤25W
Power Supply
AC110V to 220V 50/60Hz
Dimension ( WxDxH )
482x228x44mm
NW
4.1Kg
Transport Dimension (WxDxH )
555x325x98mm
GW
4.6Kg
