ITC T-6232 Public Address System 10 Zone Speaker Selector
ITC T-6232 Public Address System 10 Zone Speaker Selector
ITC T-6232 Public Address System 10 Zone Speaker Selector

ITC T-6232 Public Address System 10 Zone Speaker Selector

ITC T-6232 Public Address System 10 Zone Speaker Selector
- It provides users with keys to do programming, and the result will be displayed in the screen;
- 4 main program and 1 spare program are available.
- Internal MP3 player could be broadcasted programably and the store could be expandable. Several available hot keys to control MP3 player.
- With 5 amp input and 10 speaker output, that means 1 signal is divided to 2 channel output.
- Using CAT 5 bus control, 16 T-6232 could work together so that the system includes up to 160 zones.
- It could operate lastly, and the num. of programmed music is up to 99.
- With monitor for audio output.
- With 4 programmable power controller and 2 AUX power socket, and manual/Auto. is available. Port for external power sequencer is also available.
- When fire signal triggers, all power supply controlled by T-6232 work so that all zones are in operation status. When reset, T-6232 turns to work regularly.
- With RS-232 to work with PC.
- When controlled by PC, users could finish the schedule of programming by PC.
- It’s with function of remote control. And users’re able to custom the key one the remote controller by through PC.
- It supports off-line operation.
- Time in the host would be updated by PC.
ITC T-6232 Public Address System 10 Zone Speaker Selector
Model |
T-6232 |
Power Output |
~110V/60Hz or ~230V/50Hz 4 Program Power+2 AUX power Total Power 5KW |
Functional Button |
Light touch press buttons include 4 power switch buttons, 1 MP3 control button, 1 backup program switch, 10 zones speaker selector button, all zones button, 1 music or paging switch button. 4 menu buttons for switch, 1 ok button |
Indication |
192x64 LCD display, English |
Audio Output |
1Kohm 0.775V Unbalance(6.35 RC) 0V(Short Circuit) Industrial Standard |
Voltage Input and Output of Alarm |
Integrated Terminal Block 0V(Short Circuit) Industrial Standard |
Voltage Output for Power Control |
Integrated Terminal Block CHA CHB CHC CHD CHE CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2 |
Monitor Power of Speaker |
0.5W |
Monitor Volume Attenuator |
−∞~0dB |
Time Mode |
24 hours(hour-minutes-seconds) weekly |
Program Quantity |
Total 7(6 regular programs, 1 EMC) |
Program Steps |
Total 512 Steps, 1 day 200 Steps |
Communication Protocols |
RS422 |
Communication Port |
RJ45 |
Communication Speed |
4800bps |
Zone Control |
160 zone(16pcs T-6217 10 zone speaker seletor) |
MP3 Frequency Response |
20Hz~20KHz/ 1dB |
Mp3 Store Format |
Compatible FAT12, FAT16, FAT32 |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Dimensions |
484x303x88mm |
Weight |
6.06Kg |

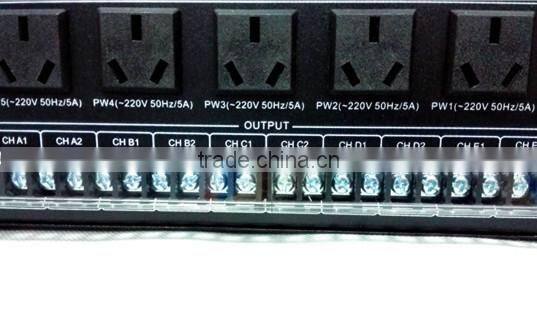

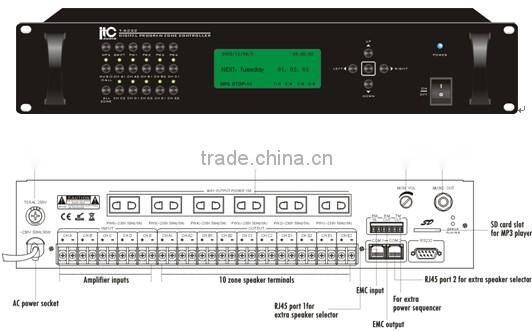

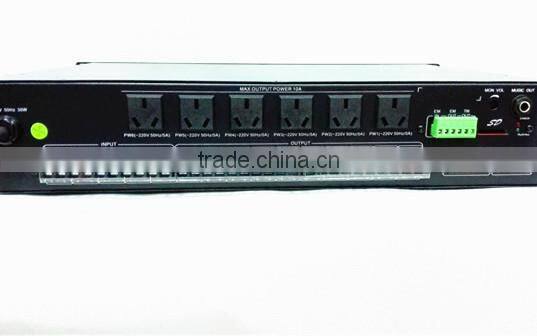

Rear Panel

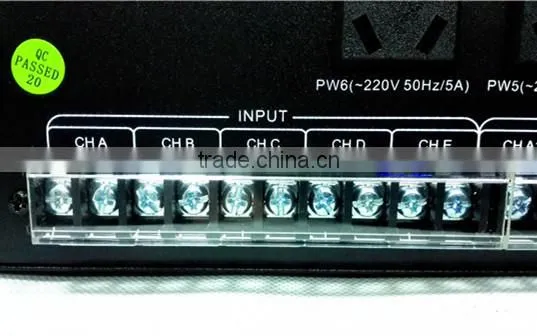

Channel Inputs
Channel Outputs

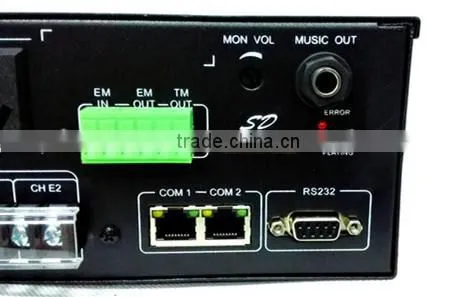

Functional Connectors

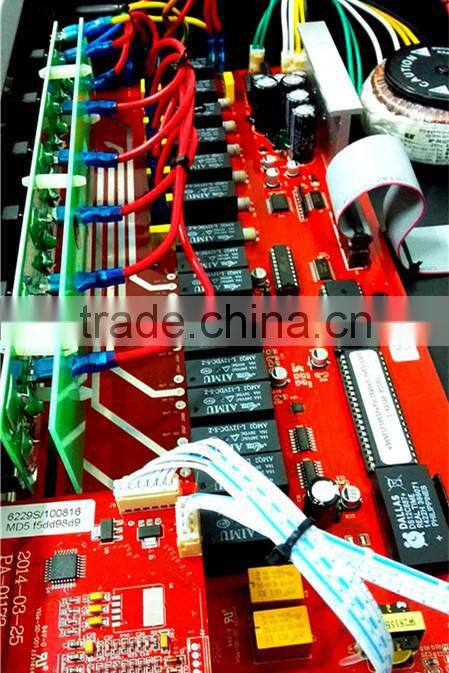

View Inside
