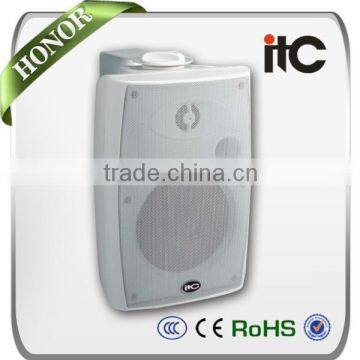

ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
- Built in 100V/70V transformer
- 5" +1.5" 2.0 speaker unit
- Power taps 3.75W-7.5W-15W-30W @100V plus 8 ohm
- Metal grille, ABS enclosure and stainless mounting bracket
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
T-775H is a full range loudspeaker box built in 70V/100V transformer. The transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 5" + 1.5" 2.0 speaker driver is designed for wide frequency response 100-18kHz, the multiple power taps 3.75W, 7.5W, 15W & 30W are useful for different applications varies from room size and ambient noise surrounding.

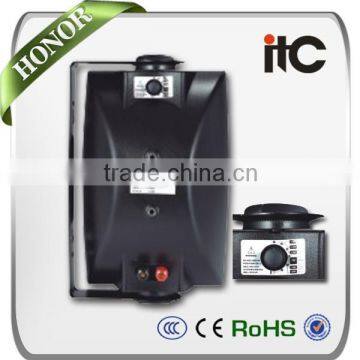

The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
Model |
T-775H |
Power Taps @100V |
3.75W, 7.5W, 15W, 30W |
Power Taps @70V |
1.9W, 3.75W, 7.5W, 15W, 30W |
Transformer Impedance |
2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
Input |
70V/100V/8Ω |
SPL(1W/1M) |
88dB |
Max. SPL (Rated W/1M) |
103dB |

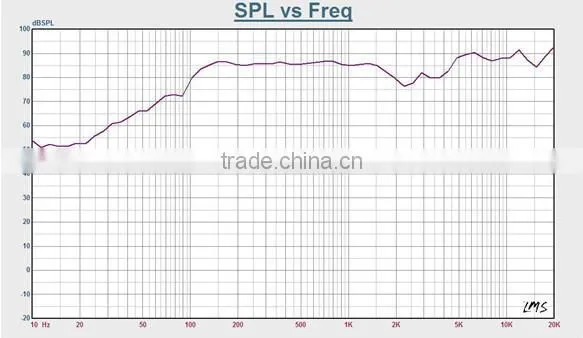

Frequency Response (-10dB) |
100-18KHz |
Finish |
Baffle: ABS, Black/White Grille: Steel, Black/White |
Speaker Driver |
5"x1 1.5"x1 |

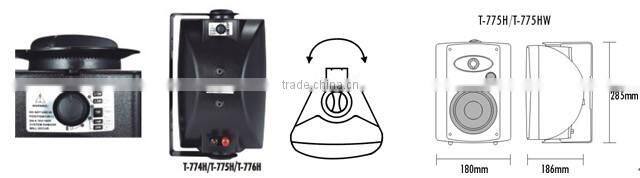

Dimension |
285 x180 x186mm |
Weight |
2.7kg |
Mounting |
With mounting bracket fixed by screw |
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
ITC T-775H 30W 8ohm Hi Fi Level 2.0 PA Loudspeaker Wall Mount
