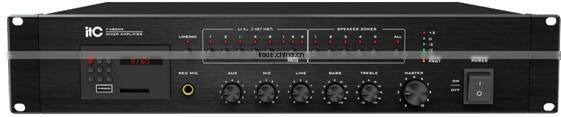

ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier With USB
ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier with USB

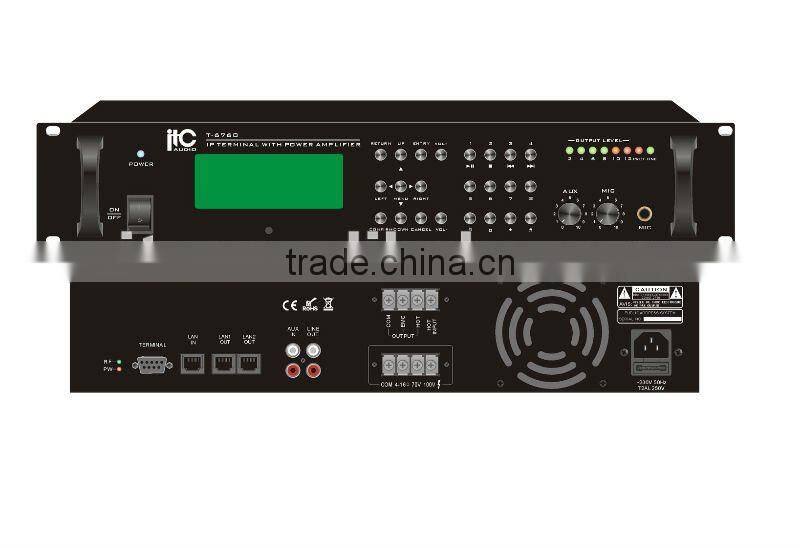

ITC T-6760 Series IP PA System 60 Watt to 350 Watt IP Audio PA Amplifier
ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier with USB
ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier with USB
ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier with USB
* The power output: 240W, 350W, 480W, 650W.

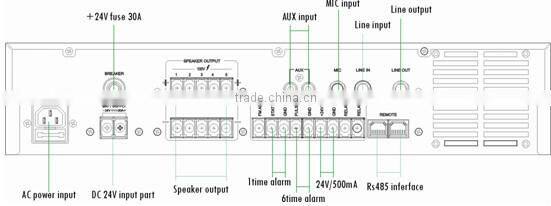

* One microphone signal input, line and AUX signal input, two remote microphone input.
* Separate treble, bass, and volume control. Total volume control.
* Selectable recording signal, the internal signal input and external signal selection.
* When the START and GND short circuit, emergency information will broadcast all the time, it will stop only when user manually stop it. PULSE and GND short circuit trigger once, emergency information play five times then stop.
* With 24V input function, the rechargeable battery is 45-60 A / h, the charging current of 2-5 A.
* With 5 zones line detection function, press the corresponding key to do real-time detection. It can set the test frequency: test each 10 minutes, 12 hours, or 24 hours. If there is a fault line when there will be a buzzer.
* LED output level indication.
* Priority input function. Built-in emergency information> REMOTE>MIC1>LINE/AUX.
* 24V output current is 0.5A.
* Connect 5 remote microphones to control zones.
ITC T-240MX Series 240W 350W 480W 650W 5 Zone Mixer Amplifier with USB
Model |
T-240MX |
T-350MX |
T-480MX |
T-650MX |
||
Rated Power Output |
240W |
350W |
480W |
650W |
||
Speaker Output |
100V |
|||||
Input Sensitivity & Impedance |
MIC 1: 5mV/600Ω, Unbalanced phone jack input |
|||||
|
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input |
|||||
Output Sensitivity & Impedance |
MIX OUT: 1000mV/470Ω, Unbalanced RCA output |
|||||
Tone |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
|||||
Frequency Response |
50Hz~16KHz( +1dB, -3dB) |
|||||
S/N Ratio |
MIC 1, : 66dB, AUX 1, 2: 80dB |
|||||
THD |
Less than 0.5% at 1KHz, 1/3 rated power |
|||||
Muting Function |
(Built-in emergency information)>REMOTE>MIC1>LINE/AUX |
|||||
Crosstalk |
≤50dB |
|||||
MP3 Support Format |
MP3 |
|||||
Maximum Support Capacity |
8GB USB drive |
|||||
Rechargeable Batteries |
45-60 A/h |
|||||
Rechargeable Current |
≤5A |
|||||
zone |
5 |
|||||
Cooling |
Fan automatically start up when temp reaches 55℃ |
|||||
Protection |
High temp, overload & short-circuit |
|||||
Power Supply |
~110V/60Hz or ~230V/50Hz /DC24V |
|||||
Power Consumption |
350W |
500W |
650W |
850W |
||
Weight |
7.5Kg |
8Kg |
8.5Kg |
9Kg |
||
Dimensions |
484x358x88mm |
|||||
Finish |
Panel: aluminum plate, black Case: steel plate, black |
|||||
