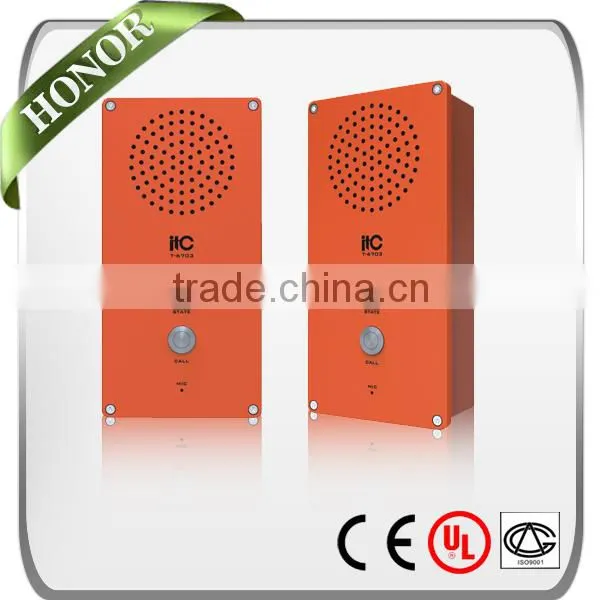

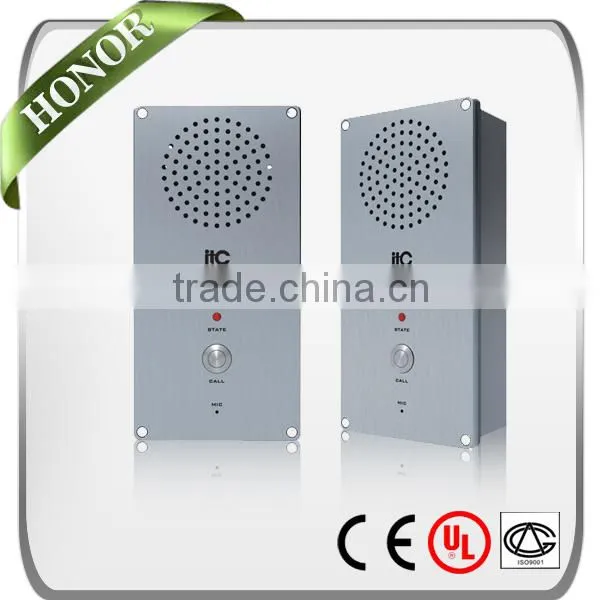

Help CenterITC T-6703 IP Based 1 Key Get Helped Waterproof and Vandal Proof Wired Audio Intercom Quality Choice
Related Products
-
ITC T-6705A Hifi Sound Quality IP Network School Class Room AmplifierUS$ 180 - 300MOQ: 10 Pieces -
ITC T-6705 20 Watt IP PA Classroom AmplifierUS$ 200 - 350MOQ: 10 Units
-
ITC T-6705 Highly Stable Built in Decoder and Amplifier IP Network Audio SystemUS$ 150 - 300MOQ: 30 Units
-
ITC T-6705 Built-in Amplifier IP PA System Digital Audio DecoderUS$ 150 - 300MOQ: 10 Units
-
ITC T-6704 4 Channel IP Audio Decoder, IP Audio Broadcasting TerminalUS$ 500 - 1,000MOQ: 10 Units
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
1. Suitable to be installed both indoor and outdoor;
2. Vandal-proof and Waterproof.
3. With 1 button for talking with duty room.
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
- Simple appearance and in design of disassembly proof screw; It adopts panel of antioxidation alloy in 6mm with aluminum case.
- It’s built in DSP and the start time is less than 1 sec.
- With a codec module for network audio, which support protocol of TCP/IP, UDP and IGMP(Group Broadcast) to achieve 16 bit stereo network audio in CD level.
- With dialogue module, support full duplex communication, work with DSP to achieve function of canceling noise and echo, audio compression, etc.
- With 5W highly sensitive full range speaker, the sound is clear and loud; With 10W digital amplifier at constant impedance output, which could connect with speaker at 4 ohm.
- With highly sensitive microphone.
- With function of monitoring, support recording management in server level, with AUX IO to work with monitoring system.
- Support security function, including status feedback function for access control, support access control, support alarm light control, tracking camera, etc.
- Customized call target.
- Support multiple calling strategy, including call waiting, call forwarding, unanswered reminder.
- Support time custom for transfer time, unanswered time, call waiting, etc.
- Support to trigger program broadcasting remotely via IP network.
- Custom hang up mode of initiative or passive.
- Support both PSTN phone broadcast and SM broadcast.
- Support to wifi network on-demand unicast via mobile phone or remote controller.
- Proof rating is IP55.
- Support DHCP and it’s compatible with multiple network structure, such as router, network switcher, gateway bridge, modem, intelnet, 2G, 3G, 4G, group broadcast, unibroadcast, etc.
- Support as least 3 kinds of highly safe authorization IP configuration, and the security factor is higher than remote configuration of Web.
- With authorization operation management; The server centrally administrate all accounts and the matching password.
- Built in lightning protection circuit.
- To adopt common network design so that the installation and expandability is easy to be achieved.
ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
Model |
T-6703 |
Network Interface |
Standard RJ45 input |
Communication Protocol |
TCP/IP, UDP, IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transmission Speed |
100Mbps |
Audio Mode |
16 digit stereo audio in CD level |
Frequency Response |
80Hz~16KHz |
T.H.D. |
≤1% |
S/N Ratio |
>70dB |
AUX Input Level |
350mV |
Internal Speaker Output Impedance & Power |
4Ω/5W |
External Speaker Output Impedance & Power |
4Ω, 10W |
Line Output Level |
1000mV |
Temperature |
-25℃~65℃ |
Humidity |
20%~80% Relative humidity, without condensation |
Power Consumption |
≤20W |
Power Supply |
DC 12V ~DC 24V |
Protection Rating |
IP55 |
Dimension |
210 x 105 x 56mm |
Weight |
0.6Kg |
