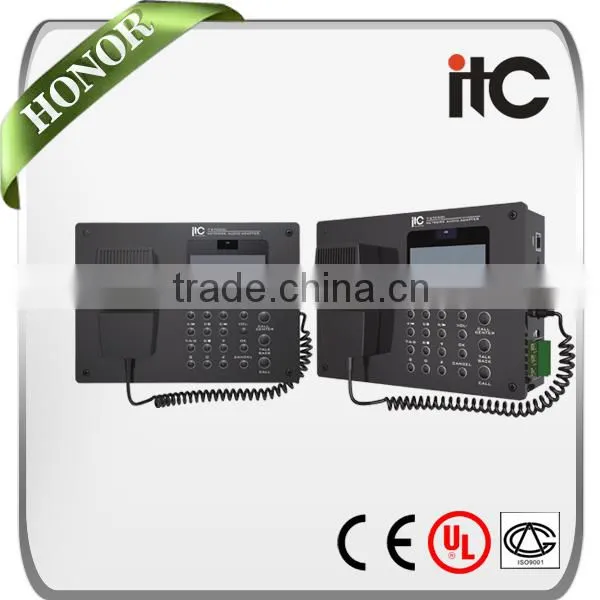

ITC T-6705(D) TCP IP Intercom Terminal
ITC T-6703 IP 2 Way Audio Intercom System with Alarm Button
ITC T-6705(D) TCP IP Intercom Terminal
Control room where audio intercom and sound system is both required, it can be take as a audio intercom station tocall any zone, receive audio intercom call from intercom panel and serve as one IP amplifier to receive and broadcast network sources. Moreover, it also have the basic PA system features: background musicsystem, zone paging system and voice alarm system highest priority broadcast.
ITC T-6705(D) TCP IP Intercom Terminal
* Wall-mount design with emergency audio intercom hand-clip microphone
* 3.4 inch LCD with user-friendly English display
* With numeric keys, function keys to call any terminal, easy and quick to operate.
* With two-way intercom, realizing 2-way audio intercom from IP terminals and IP terminals.
* Built-in 10W low impedance power amplifier for loading 4 loudspeaker
* Support hands-free calls and broadcast receiving.
* Support local microphone, line input, volume adjustment.
* Audio auxiliary output, external power amplifier expansion.
* With AC220V 10% AC power interface.
Model |
T-6705(D) |
Network Interface |
Standard RJ45 input |
Audio Format |
TCP/IP, UPP, IGMP |
Audio Format |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
Transfer Rate |
10/100Mbps |
Audio Mode |
16-bit stereo CD sound quality |
Output Frequency |
20Hz~16KHz |
Harmonic Distortion |
≤3% |
S/N Ratio |
>70dB |
|
Speaker Output Impedance and The Rated Power |
4 ohm, 1x10W industry-standard compression terminals |
Auxiliary Line Input Level |
400mV industry-standard voltage wire terminals |
Audio Output Level |
775mV industry-standard voltage wire terminals |
Audio Output Impedance |
1000ohm |
Mic Input |
10mV |
Operating Temperature |
5 °C~+40°C |
Operating Humidity |
10%~90% |
Power Consumption |
≤18W |
Power Supply |
~110V/60Hz or ~230V/50Hz |
Dimensions |
220x157x37mm |
Weight |
1.25Kg |
