ITC VA-6000MA Hot Item in Middle East Fire Alarm Voice Evacuation System
ITC VA-6000MA Hot Item in Middle East Fire Alarm Voice Evacuation System
ITC VA-6000MA Hot Item in Middle East Fire Alarm Voice Evacuation System

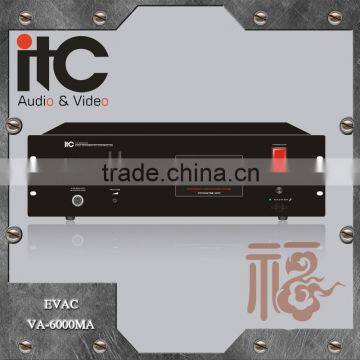

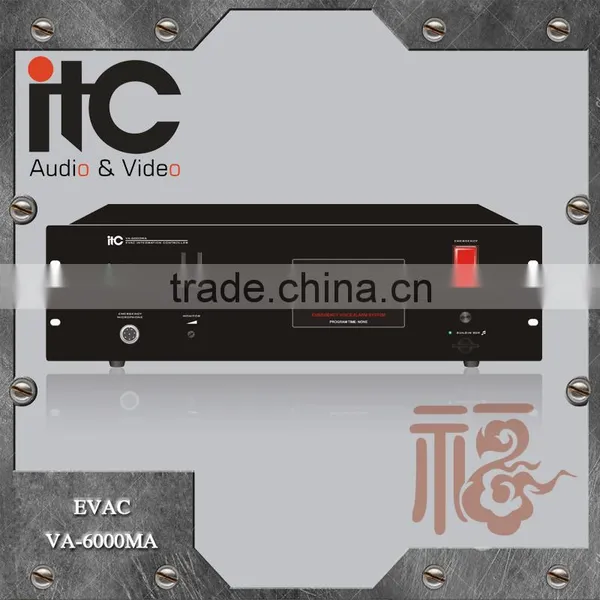

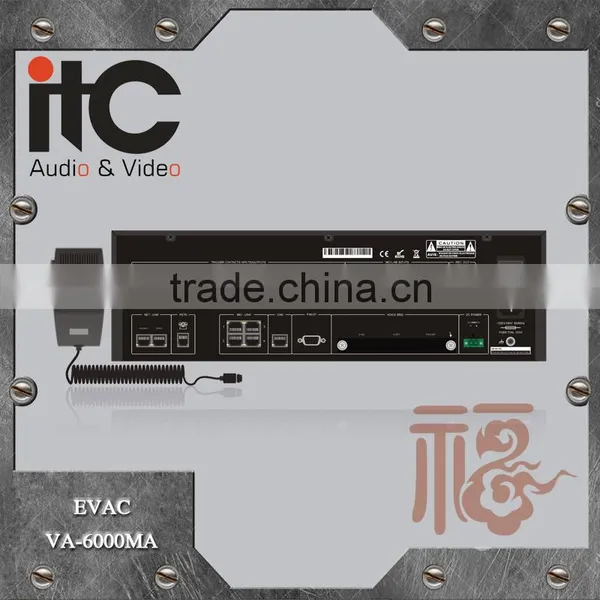

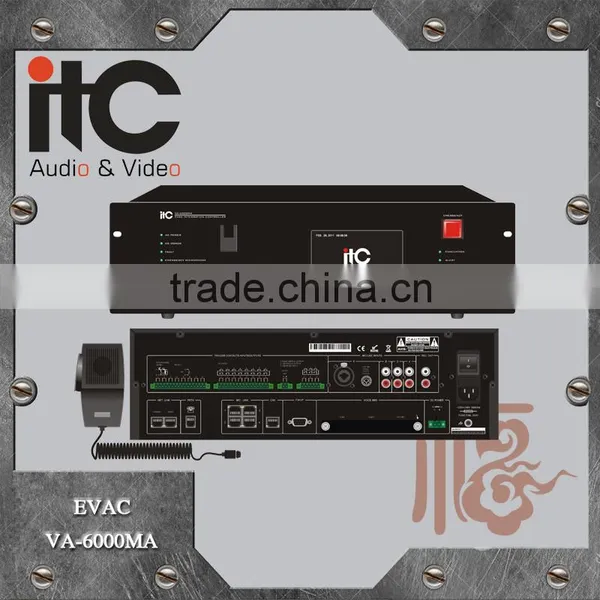

VA-6000MA is a fully digital controller for public address (PA), voice alarm and background music system. Users could control the whole system and check the working status via the 5” touch-screen on the front panel of the controller. The software on the computer realizes user-custom functions, auto status monitoring and management for partitions and terminals, auto user defined program execution. The programmable control input and outputs could be interactive with sound-light alarm module.
ITC VA-6000MA Hot Item in Middle East Fire Alarm Voice Evacuation System
1) 5 inch HD GUI;
2) With 1 hot-key for emergency alarm;
3) Support operation for zone selection, partitioning and grouping; volume of each partition could be adjusted independently;
4) Support name custom for zone, group and host (host networking) for better operation and management;
5) Support event trigger and scheduled trigger for control signal output;
6) Support zone monitoring and real time working status checking for the equipment;
7) Support telephone call triggered by event; and re-calling times could be set when unanswered;
8) Integrated 4 independent players (support audio format of MP3 and WMA);
9) Support redundant wiring;
10) Support Ethernet online configuration; control interface can work offline;
11) Can connect up to 4 remote microphones in distance of at least 600m and support a microphone circuit redundancy wire;
12) Could work with BUS type third-party fire alarm system.
* Integrated with 1 independent background music player, support playing mode of selected time, selected zone, selected program, and selected playing mode, support audio formats of MP3 and WMA;
* Integrated with 1 independent voice message player, which is convenient for replacing voice message and language according to actual applications;
* Integrated with 2 independent EVAC voice message players, which support modes of programmable structured evacuation alarm message and selected zone evacuation alarm message; playing evacuation message and alarm message at the same time;
* Integrated with 1 channel analog telephone interface, which is for remote telephone public address;
* 4 Line input (1 is optional for line or ordinary microphone); 1 REC output that’s connected with external recorder, which is to record in the emergency;
* 4 linkage port for remote paging microphone, which is connected to VA-6000RM; the connecting line adopts RJ-45 or RJ-5; the transmission method is balanced transmission so that the transmission distance is up to 600m;
* With 8 programmable control signal input;
* Real time detection, error correction and error record for system device and the capacity of error record is less than 1000; when the abnormal happens, sound-light alarm, user-prompt and troubleshooting is triggered;
* Support basic visual operation based on Windows; with functions of auto synchronization of status and ranked authorization management that’s to ensure safety for normal running of the system;
* Support no-voltage relay input and output of the third-party system;
* The host has complete backup function; the system could realize cloud architecture via added multiple hosts, which could expand the quantity of audio sources and control functions; (Note: Before to add more hosts, users must configure the system via VA-6000ST. Otherwise, the system can’t run.)
Model |
VA-6000MA |
Electrical Index | |
AC power supply | |
Voltage |
~ 230V, 50/60Hz |
Max. current |
≤0.2A |
Fuse |
250V/1A, slow type |
Power Consumption |
36W |
DC power supply | |
Voltage |
DC 24V, ±20% |
Max. current |
1.5 A |
Performance Index | |
Emergency microphone | |
Sensitivity |
5mV |
Impedance |
600Ω |
Line input | |
Distortion |
<1% (rated power output), 1KHz |
Frequency Response |
80Hz to 20KHz |
Sensitivity |
775mV |
Impedance |
10Ω |
SNR |
>70dB |
REC output | |
Distortion |
<1% (rated power output), 1KHz |
Frequency Response |
200mV |
SNR |
>70dB |
Trigger output | |
System fault output |
Short, no-voltage |
Fire linkage output |
Short, no-voltage |
8 programmable output |
Short, no-voltage |
Programmable DC 24V power output |
DC +24V, 1A |
8 programmable trigger input | |
Level mode |
Up to 3.3V |
Short mode |
Short, no voltage |
Short input | |
Fire reset input |
≥0.5s, no-voltage |
Voice message | |
Data format |
MP3 or WMA |
Storage type |
SD Card |
Information capacity |
65535 (programmable information in Max. of 255) |
Storage time |
>10 years |
Logo Message | |
Data format |
HEX |
Storage type |
Nand Flash |
Information capacity |
1000 |
Storage time |
>10 years |
Mechanical Index | |
Dimension (LxWxD) |
484x132x449 mm (19” wide, 3U) |
NW |
About 8Kg |
Installation |
Desktop or 19” cabinet |
Color |
Black |
Environmental Requirement | |
Operating temperature |
+5℃~ +40℃ |
Storage temperature |
-20℃ ~ +70℃ |
Relative Temp. |
<95% |
