ITC TS-9507AR CVBS, YPbPr VGA Optical Transmitter and Receiver
ITC TS-9507AR CVBS, YPbPr VGA Optical Transmitter and Receiver
ITC TS-9507AR CVBS, YPbPr VGA Optical Transmitter and Receiver
♦Support single multimode fiber transmission CVBS, YPbPr, VGA signal;
♦Support the transmission of Audio signals, IR signal and RS-232 signals;
♦Single-mode fiber :2-20 km, while in 1920x1080p @ 60Hz.
♦OM3 multimode fiber: less than 300 meters, at the time of 1920x1080p @ 60Hz.
ITC TS-9507AR CVBS, YPbPr VGA Optical Transmitter and Receiver

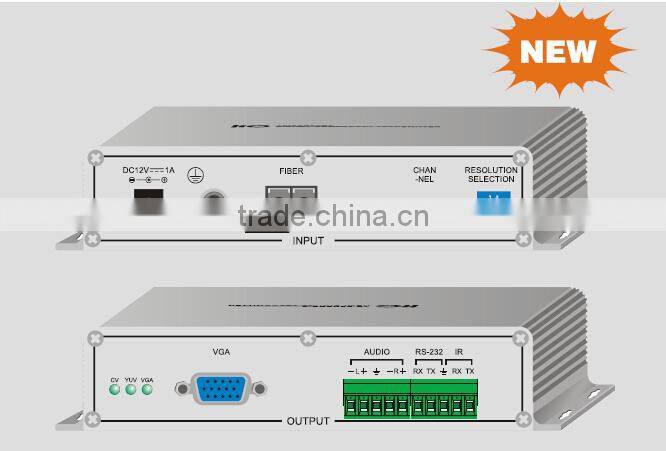

TS-9507AR is a multi-format single component video signal transmission multimode fiber extender, it will transfer CV, Y / C, YPbPr, VGA, DVI, HDMI video signals and Audio signals into optical fiber signal transmission, transmission distance to 300 meters, and is capable of simultaneous transmission of two-way RS-232, two-way infrared signals, can be used with single-core optical transmission fiber optic transmitter or matrix output card;
ITC TS-9507AR CVBS, YPbPr VGA Optical Transmitter and Receiver
Mode |
TS-9507AR |
VGA Video Output |
|
Interface |
HD-DB15 BNC |
Signal Type |
VGA Video |
Gain |
0 dB |
Interface Bandwidth |
380 MHz |
Signal Strength |
0.63Vpp - 0.9Vpp |
Signal Strength |
T.M.D.S. +/- 0.4Vpp |
Min/Max Level |
RGB signal:0V/1.0V;HV signal:0V/5.0V |
Impedance |
75 Ω |
Return Loss |
<-30dB@5MHz |
Composite Video CV/ Component Video YPbPr Video Output |
|
Interface |
HD-DB15 BNC |
Signal Type |
Composite video CV/component video YPbPr |
Gain |
0 dB |
Interface Bandwidth |
CV: 150MHz @ -3dB |
YPbPr: 350 MHz @ -3dB | |
differential phase error |
0.1°,3.58-4.43MHz |
differential gain error |
0.1%,3.58-4.43MHz |
Signal Strength |
1Vpp:Composite video(CVBS) |
1Vpp:component video-Y | |
0.3Vpp:component video-PbPr/CbCr | |
Min/Max Level |
analog signal:-2V/+2V |
Output Impedance |
75 Ω |
Return Loss |
<-30dB@5MHz |
Audio Signal Output |
|
Interface |
3.8mm Phoenix |
Gain |
0 dB |
Frequency Response |
20 Hz ~ 20 kHz |
THD+N |
0.01% @ 1 kHz (rated voltage condition) |
(S/N )Ratio |
>80dB at Vin=0 V |
Stereo crosstalk |
>80dB @ 1 kHz |
CMRR |
>75dB @: 20 Hz ~ 20 kHz |
Signal Type |
Stereo (unbalanced connection) |
Impedance |
Output:50Ω (unbalanced connection) |
Max Output Level |
+19.5dBu, (unbalanced connection) |
Gain Error |
±0.1dB @20 Hz ~ 20 kHz |
IR |
|
Interface |
3 a 3.8mm Phoenix |
Signal Type |
Input:Digital |
Output:Digital | |
Level Type |
PLL Level |
Wavelength |
850nm |
Carrier Frequency |
38KHz |
RS-232 |
|
Interface |
3 a 3.8mm Phoenix |
Signal Type |
Digital |
Level Type |
RS-232 Level |
Signal Direction |
two way communication |
Baud Rate |
Min: 4800bps Max:115200bps |
Data Bit |
|
Stop Bit |
|
Correction digit |
1 |
Stream Control |
None |
Level Delay |
None |
Level Peak |
500 ns |
RS-232 |
+/-15V |
Fiber Input Part |
|
Fiber Input connector |
SC connector |
Fiber Type |
Multimode /Single Mode(can be chosen) |
Wavelength |
Multimode: 850nm /Single Mode: 1310 –1620nm(can be chosen) |
Multimode fiber specification |
50/125μm |
Signal -mode fiber specification |
9/125μm |
Interface bandwidth |
Forward:6.25Gbps, Inversion:3.125Gbps |
lock Jitter |
<0.15 Tbit |
Risetime |
<0.3Tbit (20%--80%) |
Falltime |
<0.3Tbit (20%--80%) |
Suggested maximum input range |
Multimode fiber:less than 300m,when 1920x1080p@60Hz |
Signal -mode fiber:2-20km,when 1920x1080p@60Hz | |
specification |
|
Power Supply |
Supply adapter,12VDC/2A |
Max Power Consumption |
4W |
Temperature |
Storage Operating Temperature: -20°C~ +70°C |
Moisture |
Storage Operating Moisture:10% ~90% |
Dimension |
162(L) X 195(W) X 35(H) |
MTBF |
1 year free warranty, life-long maintenance |
