Help CenterHDMI 3x1 Switcher HD With IR
Related Products
Specifications
HDMI Switch 3 in 1 out with Pigtail 50cm1.High resolution:1080P
2.Support hdmi1.3
3.3 in 1 out

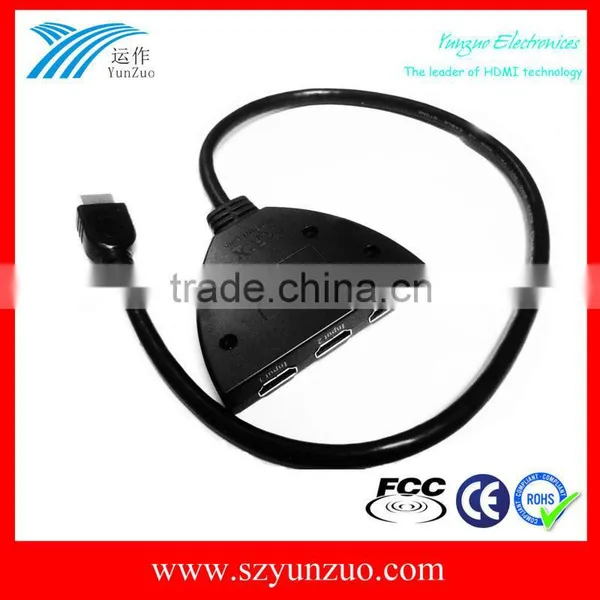

HDMI 3x1 Switcher HD with IR
Instruction:
Specifications
1,Support with HDMI1.3b
2,Support 12-bit Deep Color.
3,24K gold plated connector
4,High performance up to 2.5Gbps
This HDMI Switcher 3x1 has many features that enable it to perform in a superior manner. Among those
features you will find:
1,Support with HDMI1.3b
2,Support 12-bit Deep Color.
3,24K gold plated connector
4,High performance up to 2.5Gbps
5,Multifunctional on switching : intelligent or mechanical
6,Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer
resolutions up to 1920 x 1200 are easily achieved
7,HDMI pass-through
8,HDCP pass-through
Specification
Signal Inputs/Output |
|
Input Video Signal |
0.5-1.0 volts p-p |
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1200, 1080P |
Output Video |
HDMI 1.3b + HDCP 1.0/1.1 |
Video format supported |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
Digital Signal I/O |
|
HDMI Compliance |
HDMI 1.3b |
Operating Frequency |
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
Vertical Frequency Range |
50/60Hz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Warranty |
|
Limited Warranty |
1 Year Parts and Labor |
Environmental |
|
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply |
No power needed |
Regulatory Approvals |
|
Converter Unit |
FCC,CE,UL |
Power Supply |
UL,CE,FCC |
Accessories Adapter |
|
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
|
