Help CenterHDMI Switch Scaler Support 3D
Related Products
Specifications
hdmi switch suppoer 3D1. 3 input 1 out
2. HDCP
3. 1080P
4. OEM service available

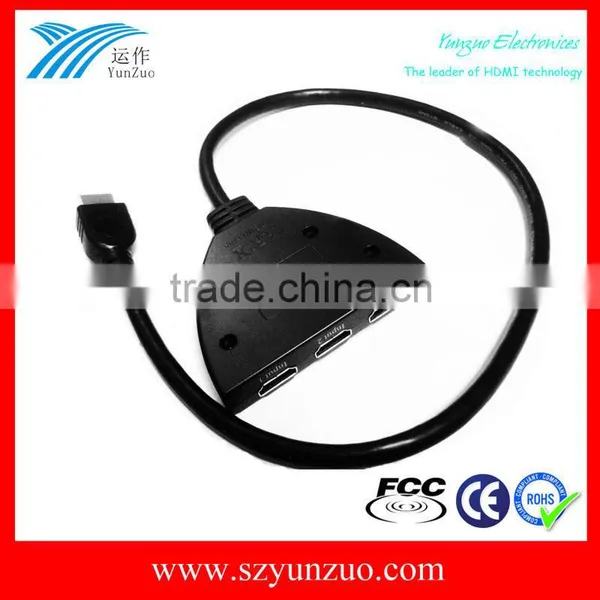

HDMI switch scaler support 3D
Introduction:
- This is a kind of high performance HDMI Switcher. It can easily switches three sources to one display. It not only has the key-press-switching function, but also has intelligent function. With one fixed HDMI cable (pigtail) this converter not only reduces cost but also save time for consumers.
- This kind of HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc. The output sends the high definition audio/video signals to a high definition display.
Features
This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
- Support with HDMI1.3b
- Support 12-bit Deep Color.
- 24K gold plated connector
- High performance up to 2.5Gbps
- Multifunctional on switching : intelligent or mechanical
- Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
- HDMI pass-through
- HDCP pass-through
Specification
Signal Inputs/Output
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920X1200, 1080P
Output Video: HDMI 1.3b + HDCP 1.0/1.1
Video format supported:DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance: HDMI 1.3b
Operating Frequency
Video Amplifier Bandwidth: 2.5Gpbs/250MHz
Vertical Frequency Range: 50/60Hz
Resolutions(HDTV)
Interlaced(50&60Hz): 480i,576i,1080i
Progressive(50&60Hz): 480p,576p,720p,1080p
Warranty
Limited Warranty: 1 Year Parts and Labor
Environmental
Operating Temperature: 0 °C to +70°C
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply: No power needed
Regulatory Approvals
Converter Unit: FCC,CE,UL
Power Supply: UL,CE,FCC
Accessories Adapter
AC Power Adapter: US standard, UK standard and so on
User Manual
Note: Specifications are subject to change without notice.
