4 input 2 output matrix switcher with SPDIF R/L RCA audio and IR control1.factory direct price
2.OEM service
3.CE FCC RoHS
4 input 2 output matrix switcher with SPDIF R/L RCA audio and IR control
This Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio output optical
or stereo simultaneously. It can easily switch or split four high definition video sources
to two compatible displays or projectors. The Optical and stereo audio output can extract
audio signal from output A.
Features
Four HDMI input signals switched or split to two HDMI sink devices
One of the HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output
Audio sync separator output can be achieved with 2CH, 5.1CH, Pass three audio modes selectable
Support 3D
Support 4K X 2K
With HDMI-CEC function
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD
Support signal retiming
Support input up to 15metres AWG24 HDMI standard cable length
output up to 25 metres AWG24 cable length
Inputs can be switched with the IR remote control, also can be controled by two buttons
MHLinterface RCPfunction, OUT Asupports RCPfunction. Through the TV remote control
to realize the control of the mobile device and matrix switch (mobile devices should support RCP
unction and TV support CEC function)
MHL/HDMI two working mode. Two inputs combined in one, effectively reduced the inputs numbers
It can smartly jump over those sources which are not connected
It can come back to the default the input 1 status when testarted or teset
LED Indecate: when someone source device or someone sink display device is working, the
LED relative will come to light;when someone source is selected to any sink, the LED relative
to the source will come to light
No loss of quality
Installs in minutes
Need DC 5V/3Apower supply
matrix switcher HDMI1.4 4kx2k support with RC IR control
HDMI resolution...... .......24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format..............................................24 bit/deep color 30 bit,36 bit,48 bit
Support audio format........................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio output....................................................................................SPDIF and 3.5mm Stereo
Max transmission bandwidth......................................................................................340MHz
Max baud rate..........................................................................................................10.2Gbps
Input/Output TMDS signal.............................................................................0.5~1.5Volts p-p
Input/Output DDC signal...............................................................................5V oltsv p-p(TTL)
Input cable distance.....................................................≤15m AWG24 HDMI standard cable
Output cable distance.................................................≤25m AWG24 HDMI standard cable
Max working current.................................................................................................1300mA
Power adapter format.............................Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/3A
Operating T emperature range..........................................................................(-15 to +55C)
Operating Humidity range.....................................................5 to 90%RH(No Condensation)
Dimension(LXWXH).....................................................................................250x27x75(mm)
Weight............................................................................................................................380g
IR Remote Operating Instruction
1. Firstly take off the plastic film that inserted in the rear of remote board
2. The Aand B signifies the HDMI Aoutput B output
3. If the Signal output from A, Only press the number key below Aline. Like after you press the 2
key under Aline, the signal 2 will output from A
4. ARC: Audio return switch (only the OUT-A output port support this feature).
5. SPDIF/:SPDIF and Headset audio ON/OFF switch
6. 2CH:2 channel stereo mode.
7. 5.1CH:5.1 channel model.
8. AUDIO COPY: Read EDID from sink devices automatically
9. Please insulate plastic film into remote panel tail for safety when you are not on remote control
Package Contents
Before attempting to use this unit,please check the packaging and make sure the following items are contained in the shipping carton:
1. 5VPower Adapto
2. Remote
3. One pc of Manua
4. MHL-HDMI Line

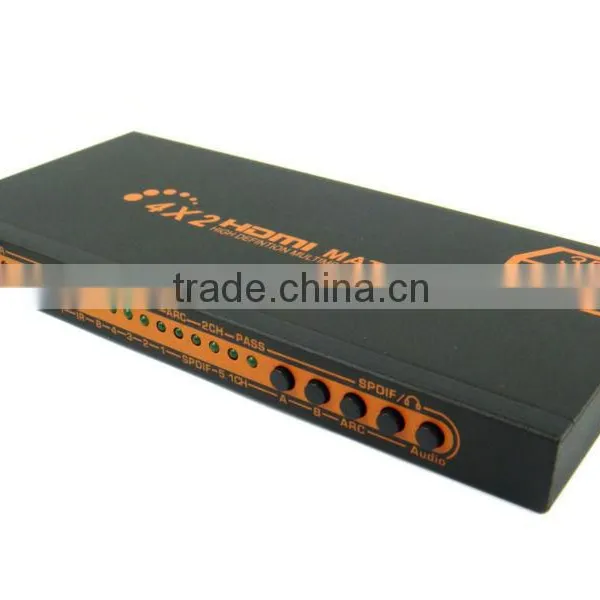

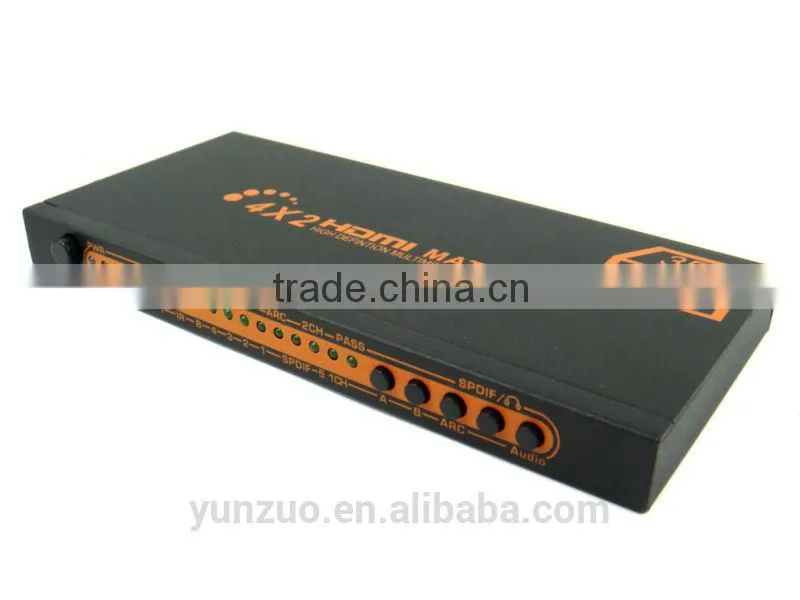

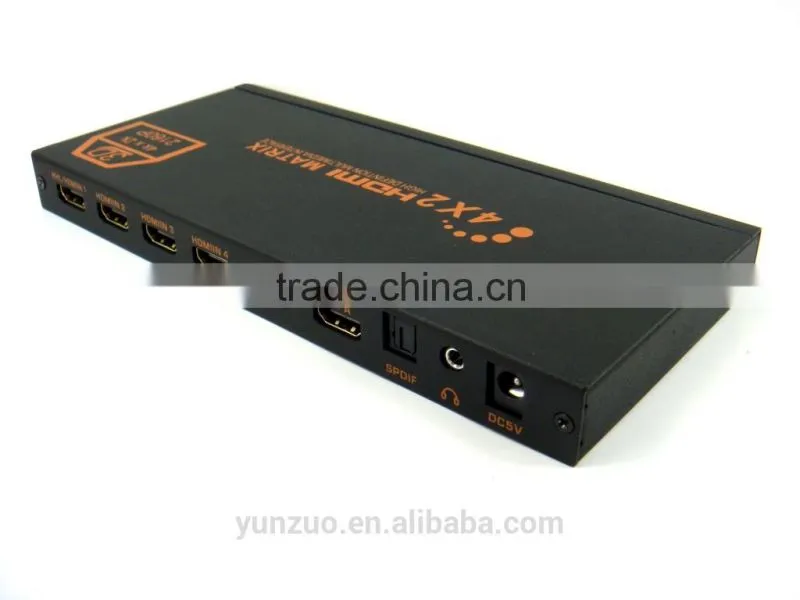

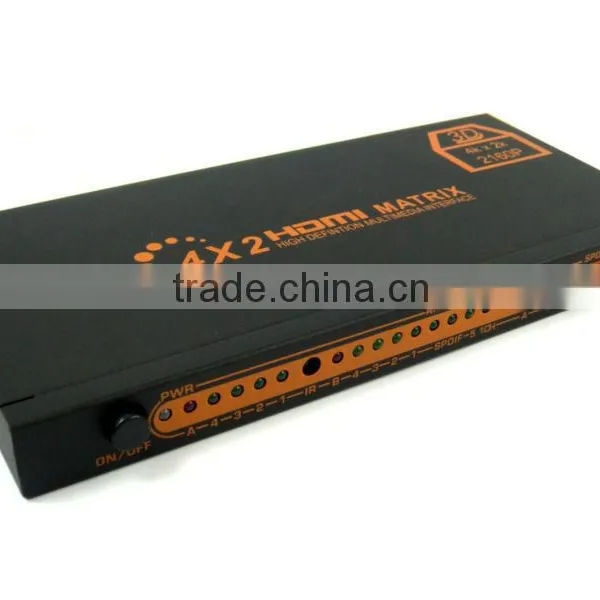

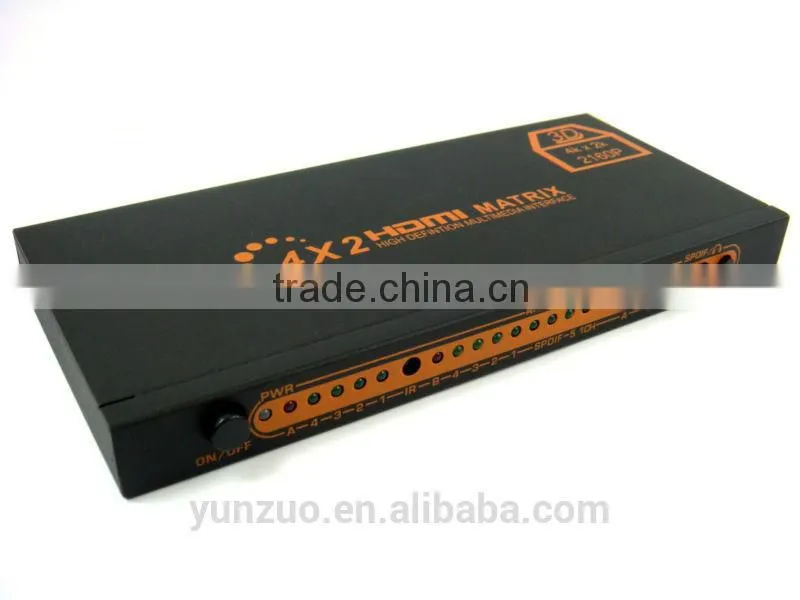

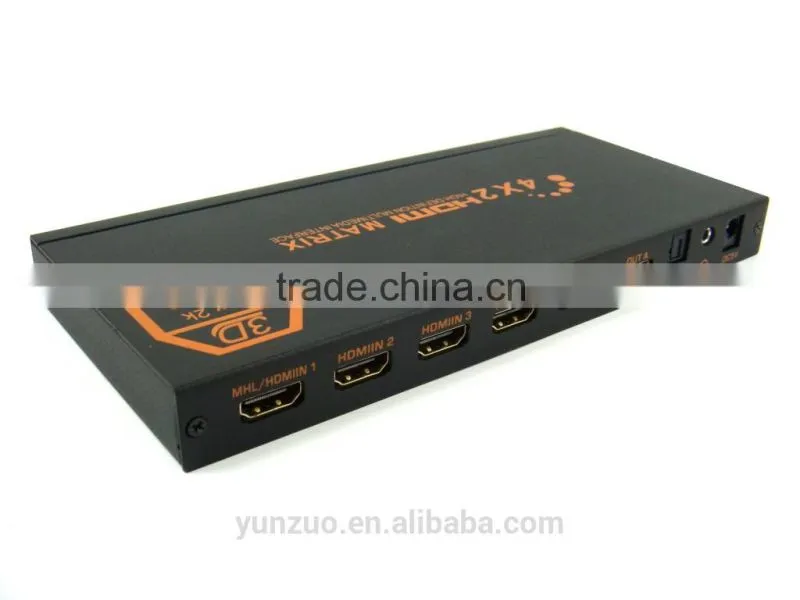

Following is the product pictures:
Packaging & Shipping
Packing Details: Carton or color box.
Shipping Details: In 1-3 weeks.
Our Certificates:

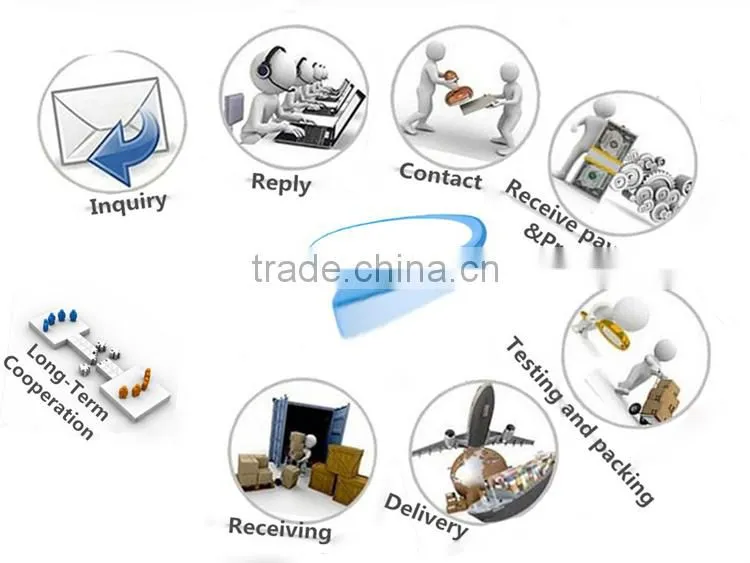

The process:
The Market:

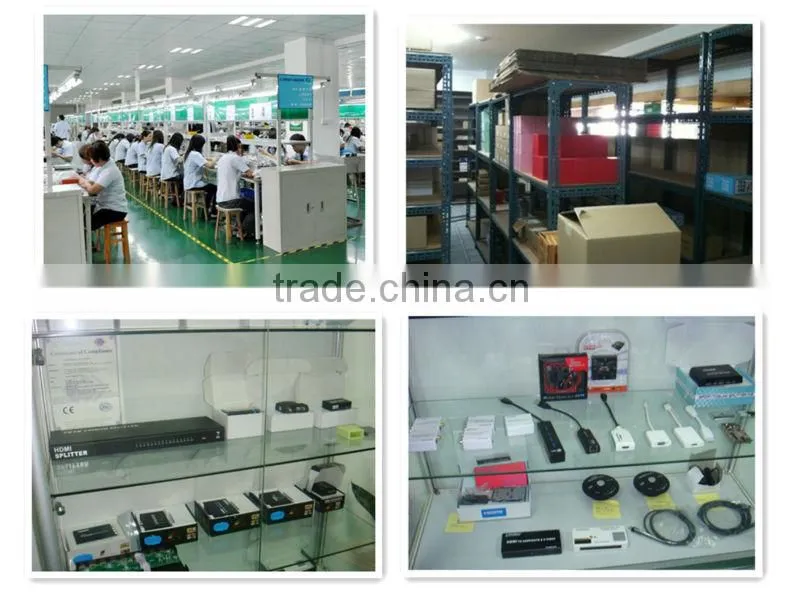

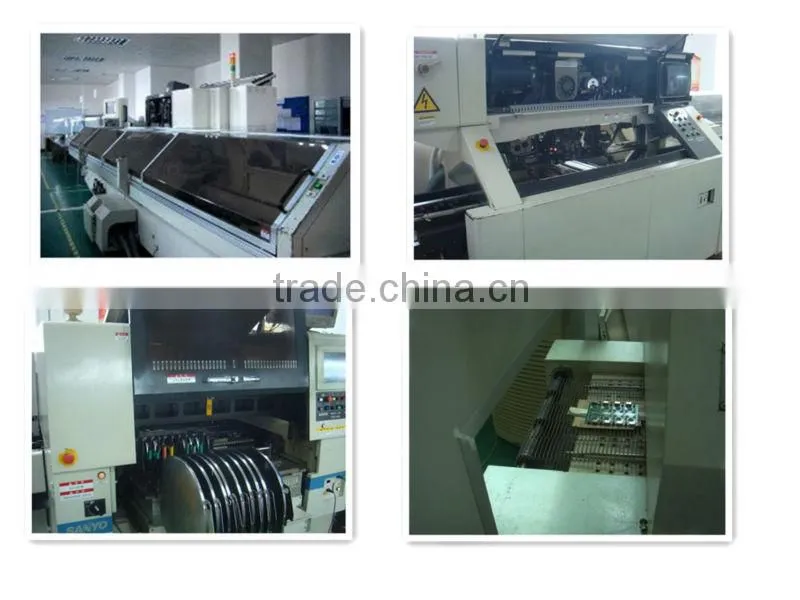

The Workshop and Product show :
How could I get samples?
We can provide samples if you have?a Fedex or DHL account or other courier freight collectable account and agree?
to pay the courier freight.or,you send us the samples charge together with the courier cost by T/T.
How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.
How can I get your price list?
Please send us your email or fax for our price list and order information.
Can we have our logo or company name to be printed on your products or the package?
Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, and the minimum quantity for silk screen printing is 2000 units per logo. You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
What's your usual payment term for orders?
We accept terms of T/T in advance or L/C at sight, T/T preferable under US$20,000, and paypal with the fee of it.
Thanks for choosing our 4 input 2 output matrix switcher with SPDIF R/L RCA audio and IR control
